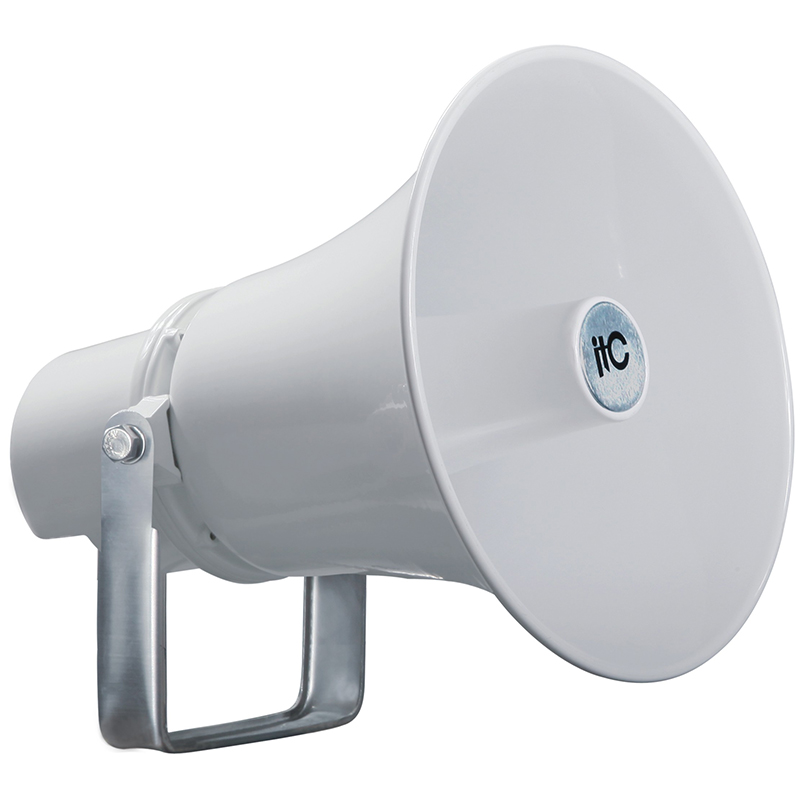

T-720G


Weatherproof Aluminium 30w 100V Horn Speaker

ITC T-720 SERIES PAGING HORN SPEAKERS provide intelligible voice paging and tone signaling for indoor and outdoor sound applications. Weather-resistant for reliable operation in demanding environmental conditions, T-720 Series models are available with a choice of power ratings from 10W to 100W. All models of T-720 Series include a built-in 70 V / 100 V transformer. The T-720 Series are easy to install on wall or pole applications and include corrosion-resistant stainless-steel mounting hardware.

The T-720 Series are also IP-66 standards compliant for dust and moisture-resistance.

Note: For outdoor installation, it is recommended that the T-720 series are installed under roofs, eaves, or in other locations not directly exposed to rain.

T-720G Weatherproof Aluminium 30w 100V Horn Speaker

The T-720G is a waterproof horn speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in horn speaker driver is designed of wide frequency response 300-13kHz, the multiple power taps 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings.

The aluminium enclosure and stainless metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.

It is ideal choice for industrial and commercial applications in the outdoor area of parking, park, garden, corridor and playground where paging is needed.

Technical Specs

Code T-720G
Sensitivity 102dB±3dB
Frequency Response 300-13KHz
Impedance Black-Com Green: 670Ω White: 330Ω
Max Power Output 60W
Power Taps @ 70V 7.5W, 15W
Power Taps @ 100V 15W, 30W
Finish Baffle: Aluminum, White
IP Rate IP66
Dimension 245 x 245 x 300mm
Weigh 2.4Kg

FEATURES

  • Paging Horn Speakers for voice paging and tone signaling distribution.
  • Weather-Resistant to withstand demanding environmental conditions.
  • Compression Driver
  • Built-In 70 V / 100 V Transformer
  • IEC IP-66 Standards Compliant for dust and moisture-resistance.
  • Stainless Steel Mounting Bracket for easy installation on wall, pole-mount applications.
  • Power output 25w, 50w, 100w @100V
  • Aluminium enclosure and Stainless Steel bracket
  • Built-in 100V/70V transformer
  • Waterproof projector type loudspeaker
  • Supreme longer distance dispersion horn speaker
  • IP66 waterproof level
  • Power taps15W-30W @100V
  • Aluminium enclosure & flare and stainless metal bracket
