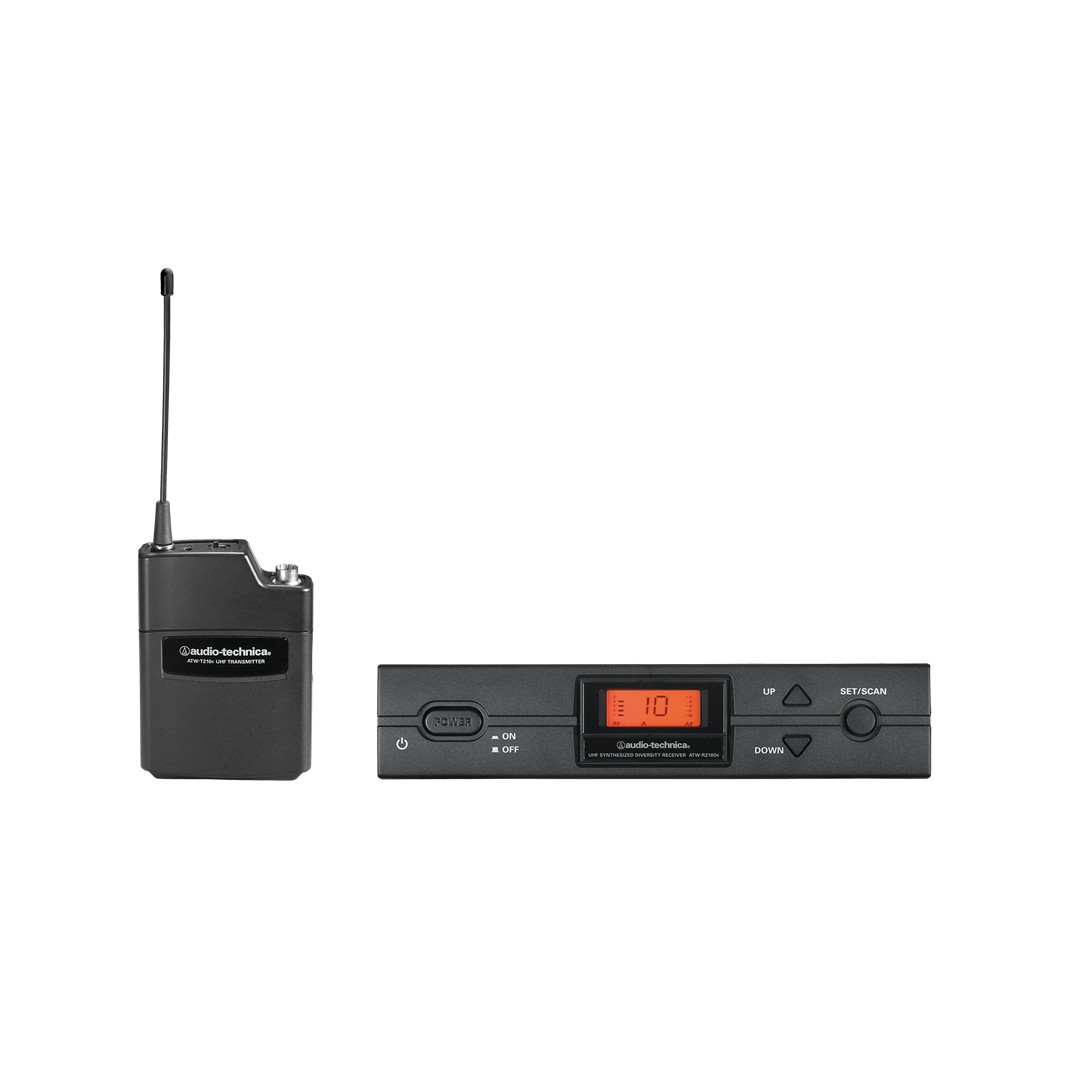

Advanced Wireless Technology: The ATW-2110CIEU operates in Band I (487.125 to 506.500 MHz), offering 10 selectable channels. Its true diversity reception system enhances signal reliability by reducing dropouts and interference. FM modulation and a maximum deviation of ±40 kHz ensure stable, high-quality wireless audio transmission.

Extended Frequency Response: With a frequency response of 100 Hz to 15 kHz, the system captures clear and natural sound. This makes it ideal for vocals, instruments, and presentations where audio fidelity is critical.

Flexible Body-Pack Transmitter: The ATW-T210c body-pack transmitter features switchable RF power output (High: 30 mW, Low: 10 mW), offering adaptable range and battery efficiency. The unit uses two AA batteries (alkaline or NiMH), providing up to 9 hours of continuous use.

Selectable Microphone Input: The system accommodates various microphones and cables with a cW-style locking 4-pin connector, giving users the flexibility to match their application needs, whether lavalier, headset, or instrument.

Compact and Rugged Receiver: The ATW-R2100c receiver is built for durability and performance. It includes a balanced XLR and unbalanced ¼” output, flexible antennas, and a 2-position output attenuator switch (0 / -12 dB). It also includes rack-mount adapters for professional setups.

Low Harmonic Distortion

Operating with less than 1% total harmonic distortion at 1 kHz ensures the signal remains clean and true to the source.

Efficient Power Management

Both transmitter and receiver systems have energy-efficient designs. The NiMH battery recharge system (via ATW-CHG2) provides convenient, eco-conscious powering options, supported across various world regions.

Wide Operating Range

With a typical operating range of 100 meters (300 feet) in an open field, the system offers extensive freedom of movement without compromising signal integrity.

Specifications:

System:

• Frequency Range: 487.125 – 506.500 MHz (Band I)

• Modulation Mode: FM

• Frequency Response: 100 Hz – 15 kHz (+1 dB, -3 dB)

• Operating Range: Up to 100 m (300 ft)

• THD: < 1% at 1 kHz, ±20 kHz deviation

• Channels: 10

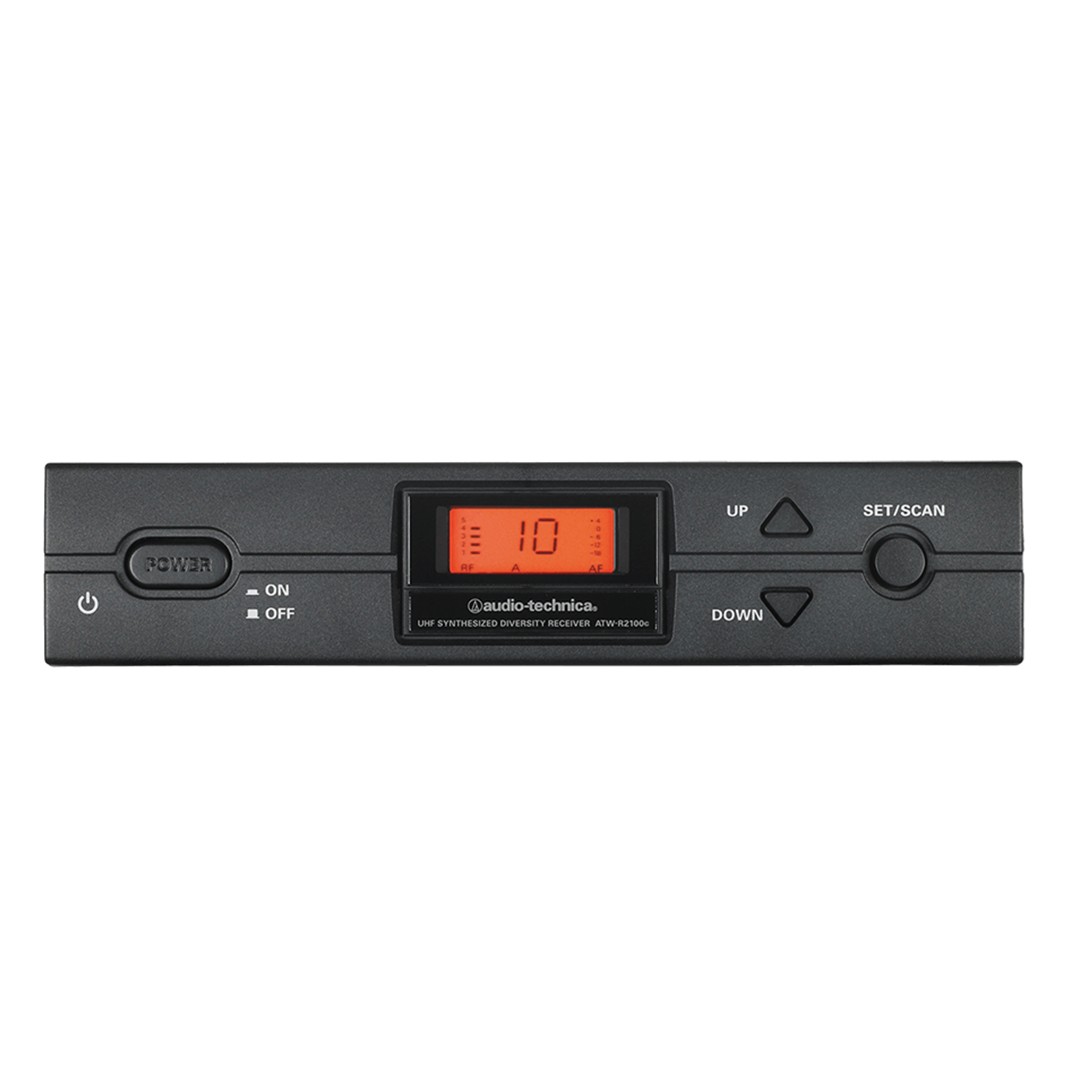

Receiver (ATW-R2100c):

• Receiving System: True diversity

• Image Rejection: ≥55 dB

• Sensitivity: 20 dBuV

• Output: XLR (+9 dBV), 1/4″ (+4 dBV)

• Power: 12–18V DC, 500 mA

• Dimensions: 210 × 162.2 × 44 mm

• Weight: 1.0 kg

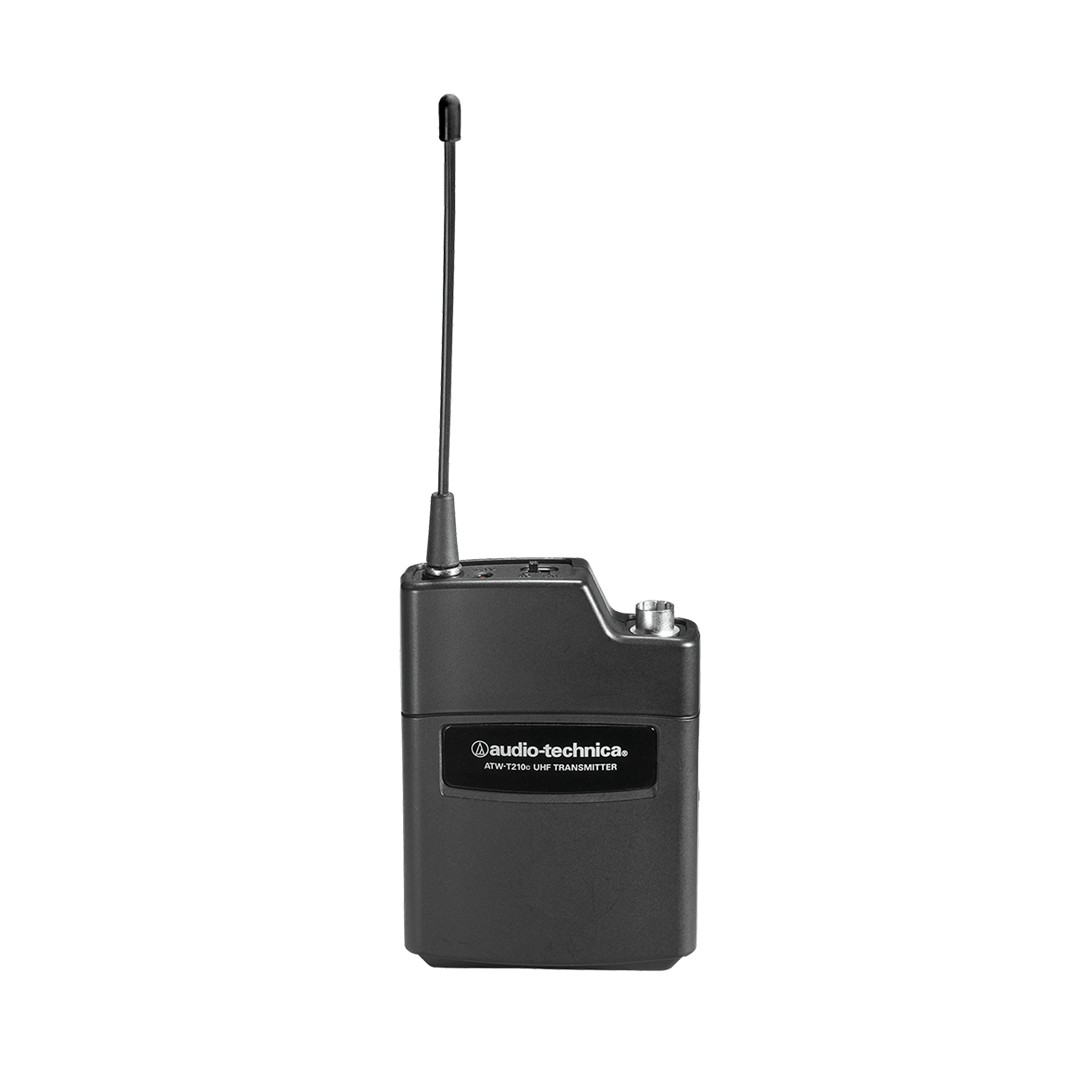

Body-Pack Transmitter (ATW-T210c):

• RF Output Power: High 30 mW, Low 10 mW

• Battery Type: 2 x AA (Alkaline or NiMH)

• Battery Life: Up to 9 hours (low mode)

• Input: 4-pin locking (cW-style)

• Dimensions: 66 × 22.5 × 92.3 mm

• Weight: 81 g
