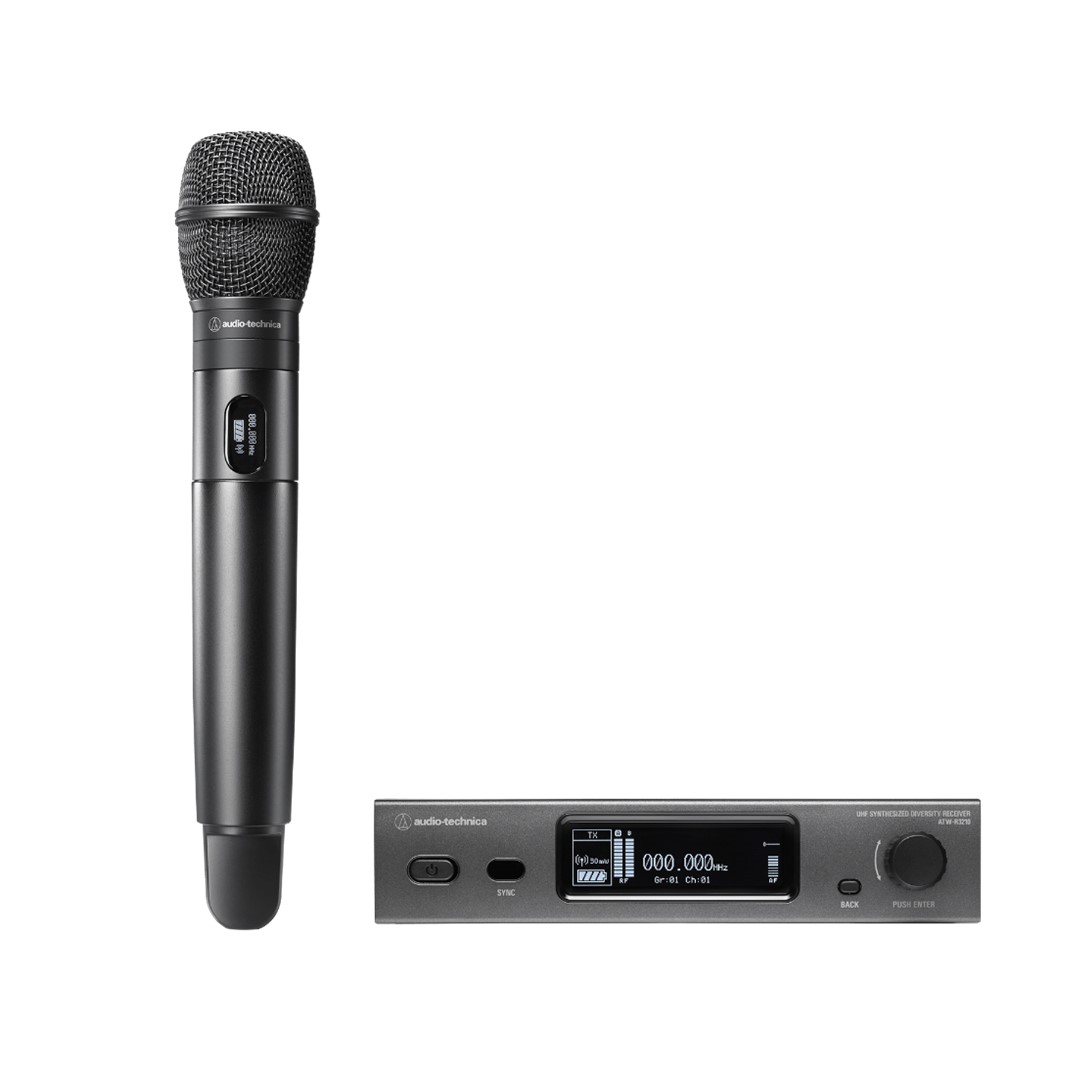

Frequency Bands: The Audio-Technica ATW-3212/C710 system operates on four frequency bands. Each band provides up to 2400 frequencies, minimizing interference. Users can switch between bands easily, ensuring clear audio in diverse environments.

Modulation and Tuning: This system uses FM modulation for stable signal transmission. The minimum frequency step of 25 kHz allows for precise tuning, ensuring optimal performance.

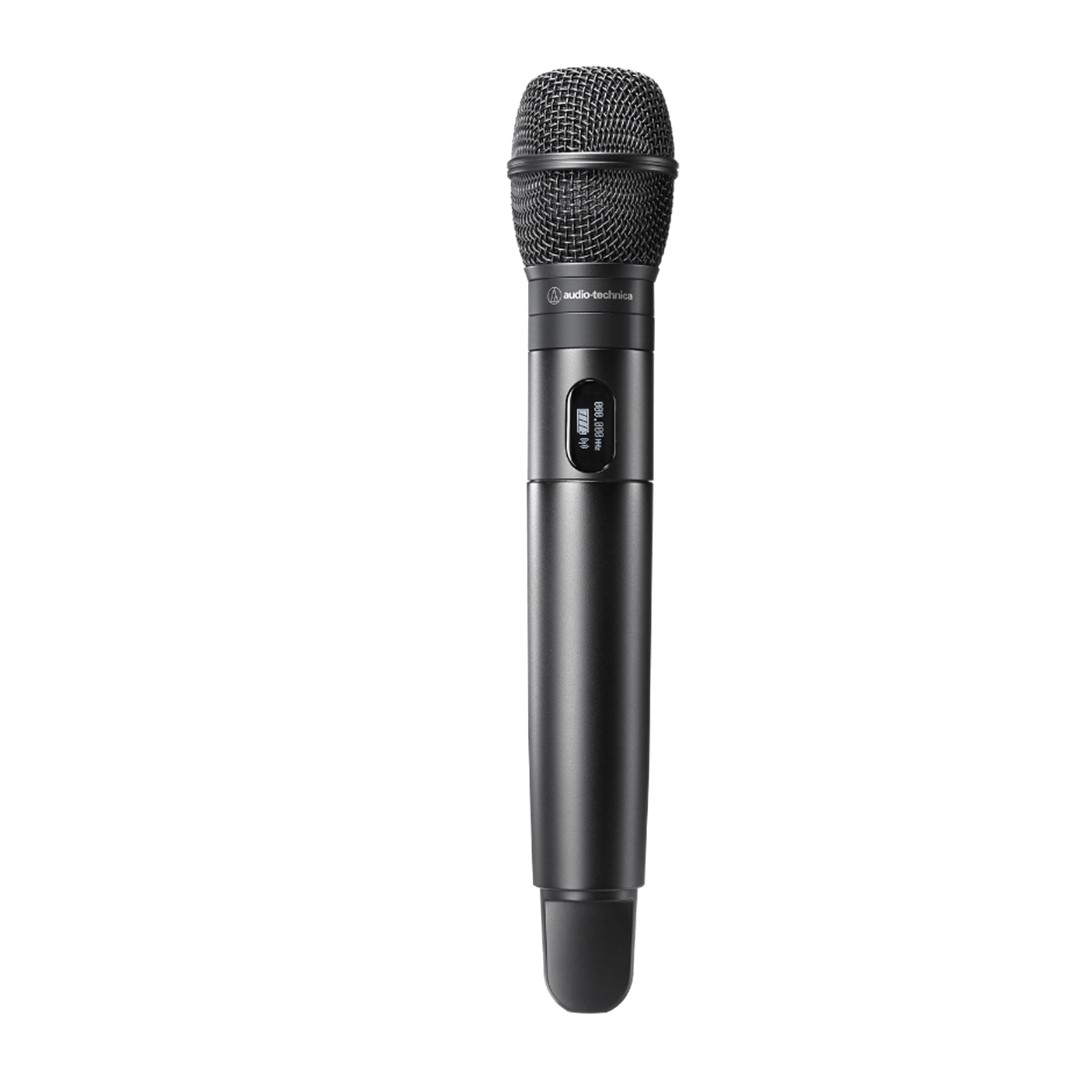

Versatile Handheld Transmitter: The handheld transmitter features an interchangeable microphone capsule. This design provides versatility for various applications and audio capture preferences.

Operating Range and Performance: In an open range, the system operates effectively up to 100 meters. Total harmonic distortion remains below 1.0%, delivering crystal-clear sound quality.

Battery Life and Reliability: Battery life can reach up to 9.5 hours, depending on usage conditions. Additionally, the system supports simultaneous use of up to 40 channels per band, ideal for large events.

Temperature Range: The system operates within a temperature range of -5° C to +45° C. This ensures reliability in various environments, making it suitable for professional applications.

Specifications:

Overall System Specifications

• Operating Frequencies:
  • Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
  • Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
  • Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
  • Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation:
  • ATW-T3201: ±38 kHz (THD: 10%)
  • ATW-T3202: ±36 kHz (THD: 10%)
• Frequency Response:
  • ATW-T3201: 31 Hz to 15,500 Hz
  • ATW-T3202: 25 Hz to 16,700 Hz
• Operating Range: Up to 100 m (328′) in open environments
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• Simultaneous Use: Up to 40 channels per band

Handheld Transmitter Specifications

• RF Power Output:
  • High: 30 mW
  • Low: 10 mW (switchable)
• Microphone Capsule: Interchangeable industry standard thread
• Battery Type: Two 1.5V AA (not included)
• Battery Life:
  • High: 8.0 hours (alkaline)
  • Low: 9.0 hours (alkaline)
  • High: 9.0 hours (Ni-MH 1900mAh)
  • Low: 9.5 hours (Ni-MH 1900mAh)
• Dimensions:
  • ATW-T3202 (without capsule): 193 mm (7.60″) long, 37 mm (1.46″) max diameter
  • ATW-T3202/C510: 265 mm (10.43″) long, 54 mm (2.13″) max diameter
  • ATW-T3202/C710: 271 mm (10.67″) long, 50 mm (1.97″) max diameter
• Net Weight:
  • ATW-T3202 (without capsule): 200 g (7.1 oz)
  • ATW-T3202/C510: 330 g (11.6 oz)
  • ATW-T3202/C710: 314 g (11.1 oz)

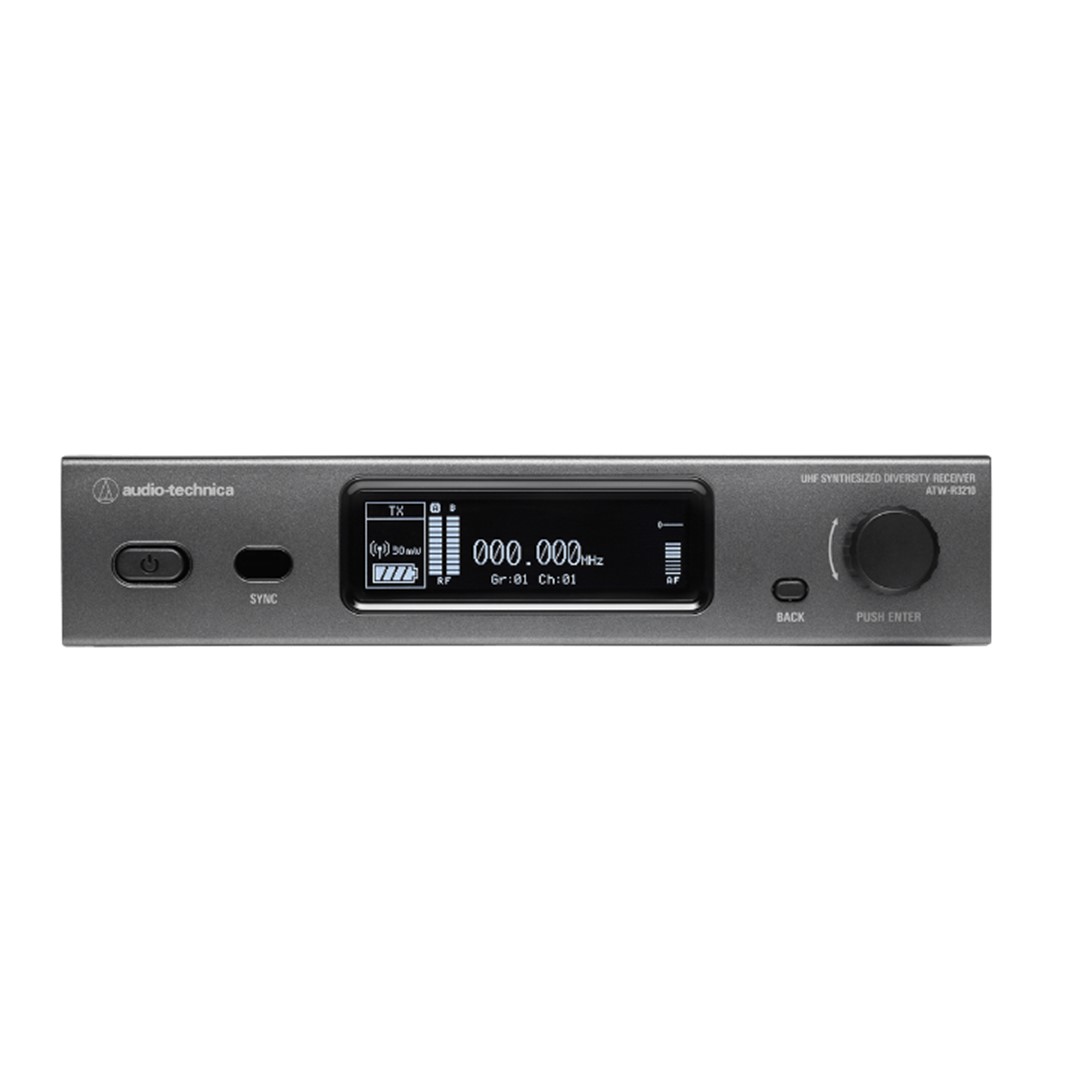

Receiver Specifications

• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Maximum Output Level:
  • XLR, balanced: +14 dBV
  • 6.3 mm (1/4″), unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Antenna Power: 12 V DC, 160 mA (combined)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
• Weight: 1100 g (38.8 oz), without accessories
• Accessories Included: Two flexible UHF antennas, AC adapter (country dependent), rack-mount adapters.
