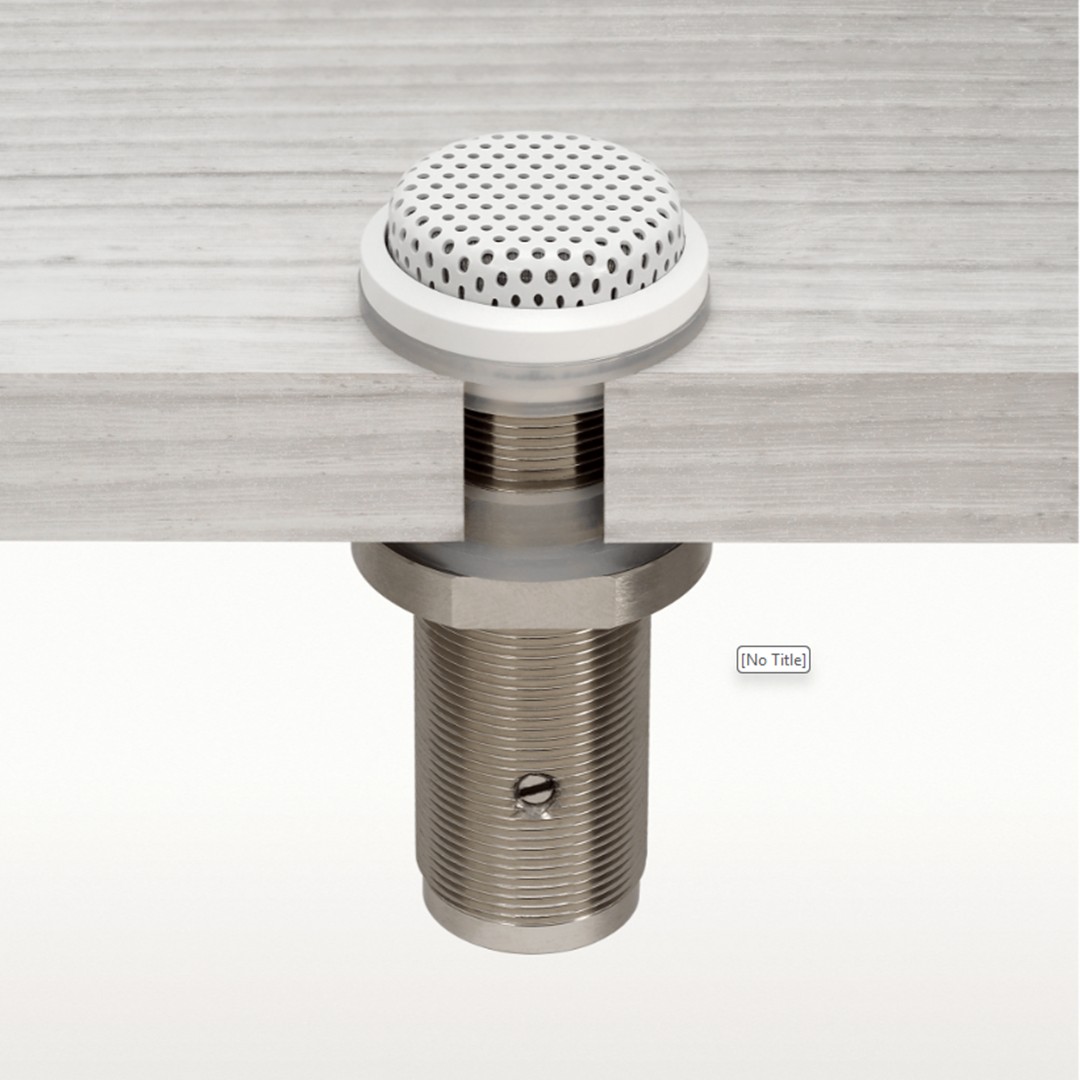

Discreet Low-Profile Design: Mounts cleanly into tabletops, ceilings, and panels. It ensures minimal visual presence. It supports professional installed audio systems.

360-Degree Omnidirectional Pickup: Captures sound evenly from all directions. It improves speech clarity in group settings. It ensures consistent audio coverage.

UniGuard RFI Shielding: Reduces radio frequency interference effectively. It maintains clean audio signals. It enhances reliability in electronic environments.

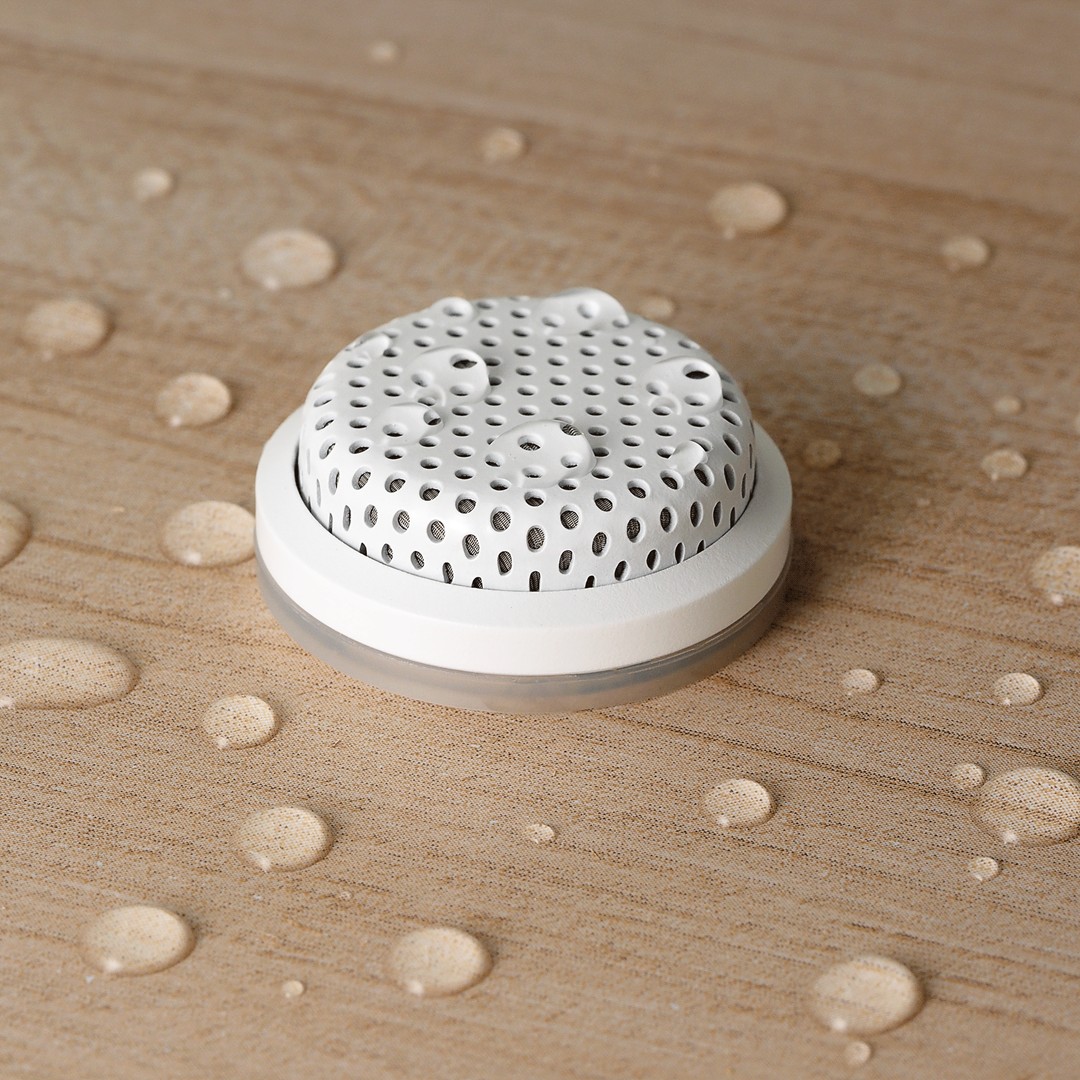

IPX4 Water Resistance: Protects against splashes and moisture. It increases durability in varied installations. It supports long-term dependable use.

Integrated XLR Power Module: Removes need for external power units. It simplifies installation setups. It ensures efficient system integration.

Specifications

• Type: Fixed-charge back plate condenser
• Polar Pattern: Omnidirectional (360°)
• Frequency Response: 60–15,000 Hz
• Sensitivity: -33 dB (0 dB = 1V/Pa, 1 kHz)
• Output Impedance: 100 ohms
• Max SPL: 130 dB SPL
• Dynamic Range: 109 dB (typical)
• Signal-to-Noise Ratio: 73 dB
• Power Requirements: 11–52V DC, 2 mA

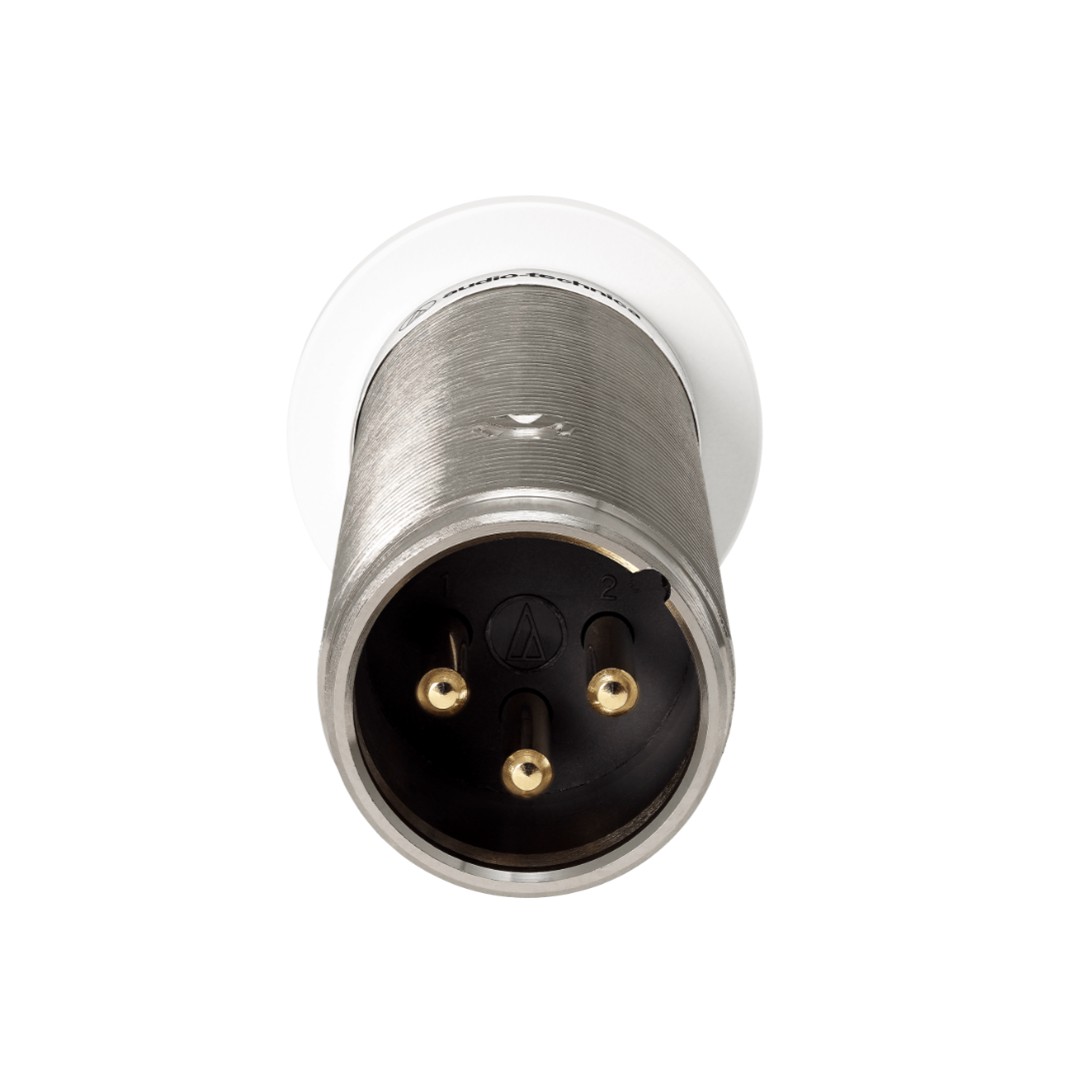

• Output Connector: 3-pin XLRM-type
• Dimensions: 69 mm length, 28 mm head diameter
• Weight: 62 g
• Protection: IPX4 water resistance
• Shielding: UniGuard RFI protection

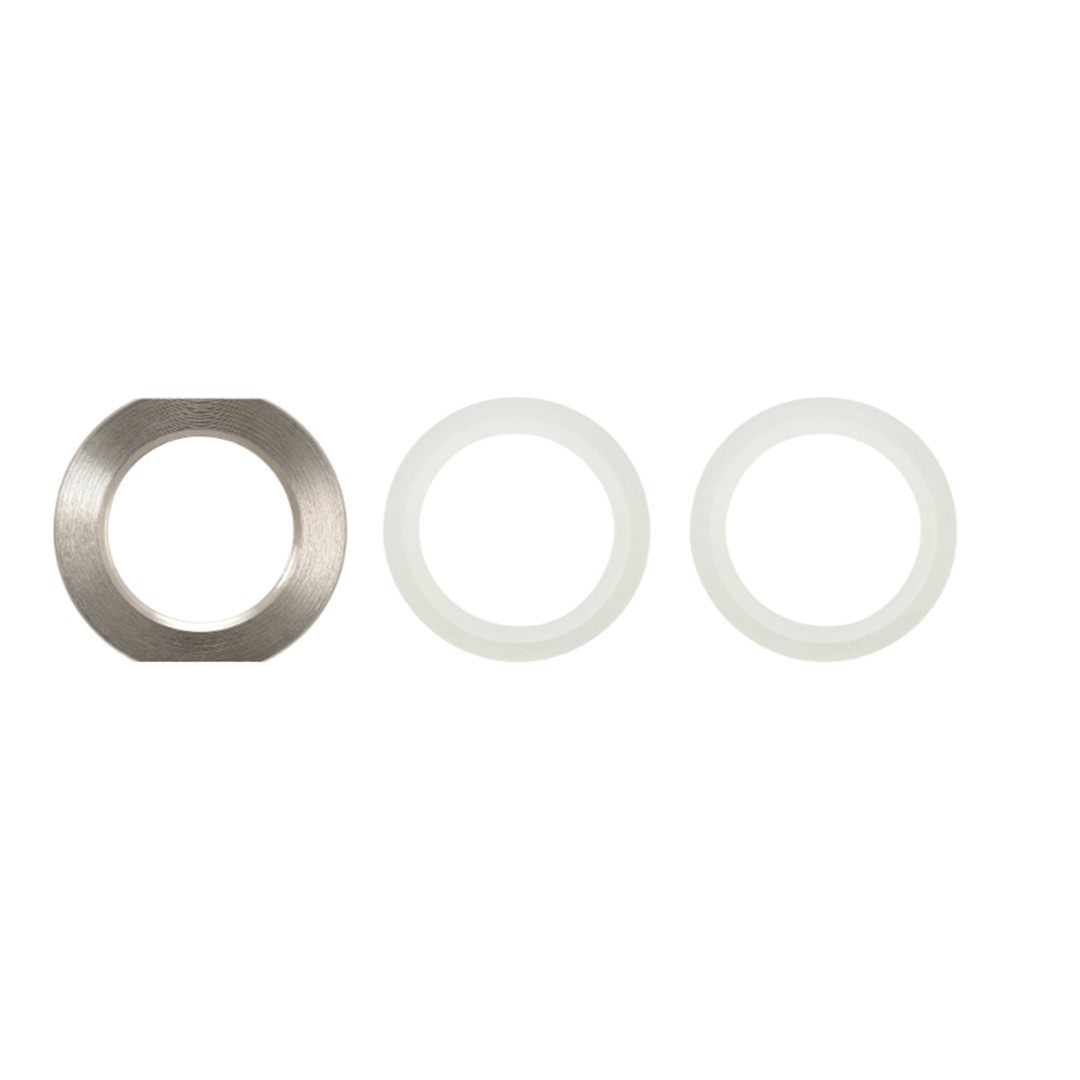

• Accessories: Rubber isolators, mounting nut
• Finish: Available in black (ES945O/XLR) and white (ES945WO/XLR)
