dB Technologies VIO L210 10″ Active Line Array Module

dB Technologies VIO L210 10 Active Line Array Module - Front

dB Technologies VIO L210 10″ Active Line Array Module

R80,999.00

In stock

dB Technologies VIO L210 10″ Active Line Array Module

R80,999.00

In stock

OVERVIEW

The dB Technologies VIO L210 is a professional 2-way active line array module featuring dual 10-inch neodymium woofers, a 1.4-inch compression driver, and 900W RMS Digipro G3 amplification. Delivering up to 135 dB SPL, it combines advanced FIR DSP processing, precise waveguide technology, and integrated rigging for exceptional long-throw performance and detailed sound reproduction.
Read More Read Less

Dual 10-Inch Neodymium Low-Frequency Drivers: The VIO L210 features two premium 10-inch neodymium woofers arranged in a V configuration. Moreover, this design improves efficiency and low-frequency projection. As a result, the system delivers tight bass response with excellent transient accuracy.

Precision High-Frequency Compression Driver: A 1.4-inch exit compression driver with a 3-inch voice coil handles the high frequencies. Additionally, the neodymium motor structure ensures lightweight efficiency and strong output. Consequently, vocals and high-end details remain clear and highly intelligible.

Advanced Waveguide for Long Throw Coverage: The custom waveguide creates a cylindrical wavefront for precise directivity control. Furthermore, it maintains consistent high-frequency dispersion over longer distances. Therefore, the system performs exceptionally well in large venues and touring applications.

Aluminium Phase Plug Technology: Two massive aluminium phase plugs sit in front of the woofers. Moreover, each plug features 26 diamond-shaped openings. As a result, crossover interference is reduced while frequency and transient response improve significantly.

FIR Linear Phase DSP Processing: The integrated 56-bit DSP uses advanced FIR linear phase filters. Additionally, this processing ensures coherent sound coverage and improved phase alignment. Consequently, listeners experience consistent clarity across the coverage area.

Digipro G3 Class D Amplification: The built-in Digipro G3 amplifier delivers 900W RMS and 1800W peak power. Moreover, it provides high efficiency with low thermal stress. Therefore, the system maintains stable performance during demanding live events.

Smart Coupling and HF Compensation Presets: The onboard controls include multiple speaker coupling and HF compensation presets. In addition, these settings help optimize performance for array size and throw distance. As a result, engineers can adapt the system quickly to different venues.

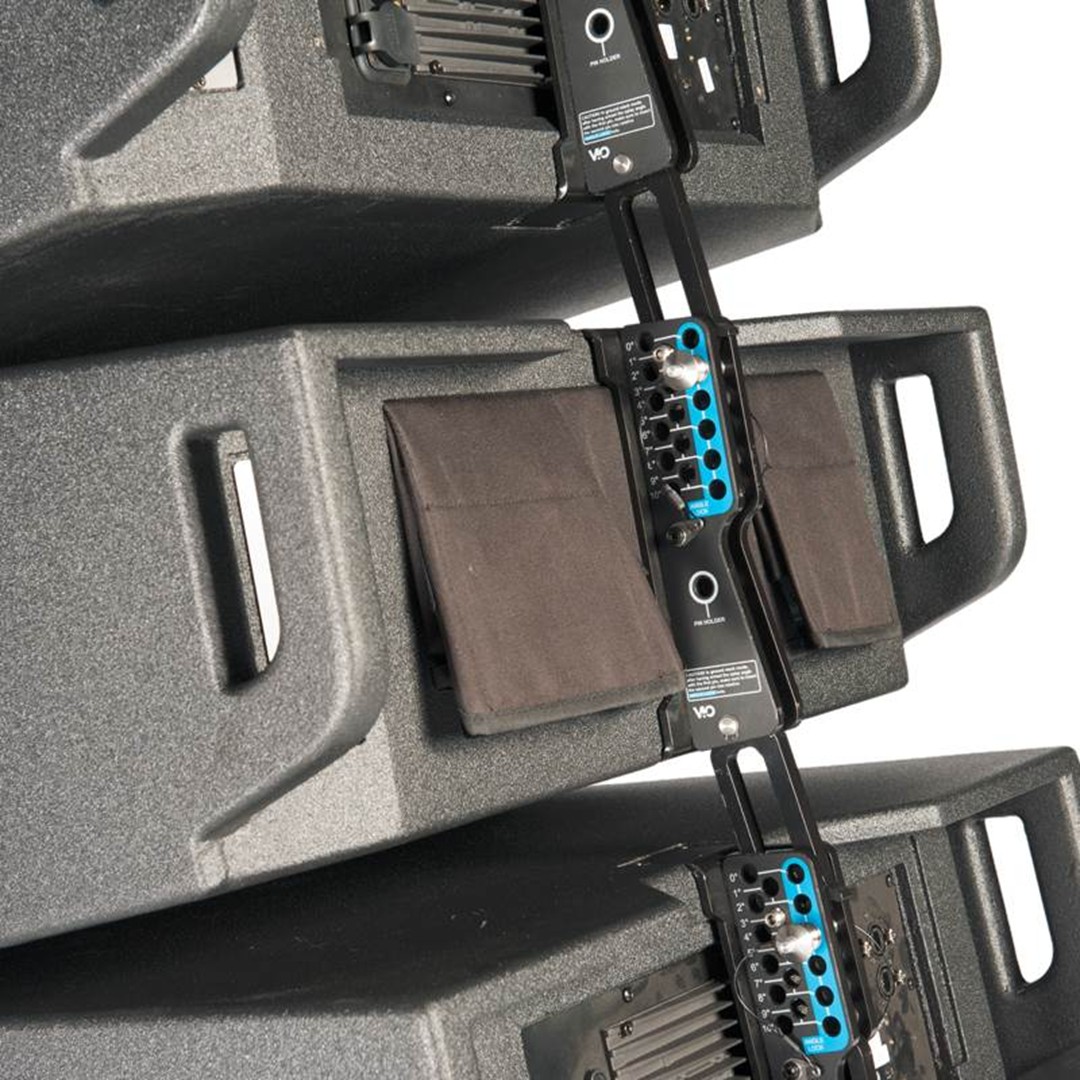

Integrated 3-Point Rigging System: The built-in 3-point rigging hardware speeds up installation. Furthermore, preset splay angles lock automatically during lifting. Therefore, setup becomes faster, safer, and more precise for touring crews.

Specifications:

  • Speaker Type: 2-way active line array module
  • RMS Power: 900 W
  • Peak Power: 1800 W
  • Max SPL: 135 dB
  • Usable Bandwidth (-6 dB): 67 – 20,000 Hz
  • Frequency Response (±3 dB): 78 – 18,100 Hz
  • HF Section: 1 × 1.4” compression driver
  • HF Voice Coil: 3”
  • HF Type: Neodymium, titanium diaphragm
  • LF Section: 2 × 10” neodymium woofers
  • LF Voice Coil: 2.5”
  • LF Design: Aluminium phase plug
  • Horizontal Directivity: 100°
  • Vertical Directivity: depends on array configuration
  • Amplifier Technology: Digipro G3 bi-amped
  • Amplifier Class: Class D
  • DSP: 56-bit processor
  • AD/DA Conversion: 24-bit / 48 kHz
  • Filters: FIR linear phase
  • Crossover Frequency: 950 Hz
  • Slope: 24 dB/octave
  • Input: 1 × XLR balanced female
  • Output: 1 × XLR balanced male
  • Network: RDNet RJ45 in/out
  • Power: PowerCON TRUE1 in/out
  • Controls:
    • Speaker coupling presets
    • HF compensation presets
    • Input attenuation
  • Enclosure: Multiplex plywood, polyurea painted
  • Housing Design: Trapezoidal 10°
  • Handles: 2 side handles
  • Rain Cover: Included
  • Rigging: Integrated hardware
  • Dimensions: 720 × 320 × 520 mm
  • Weight: 28.6 kg (63 lbs)
