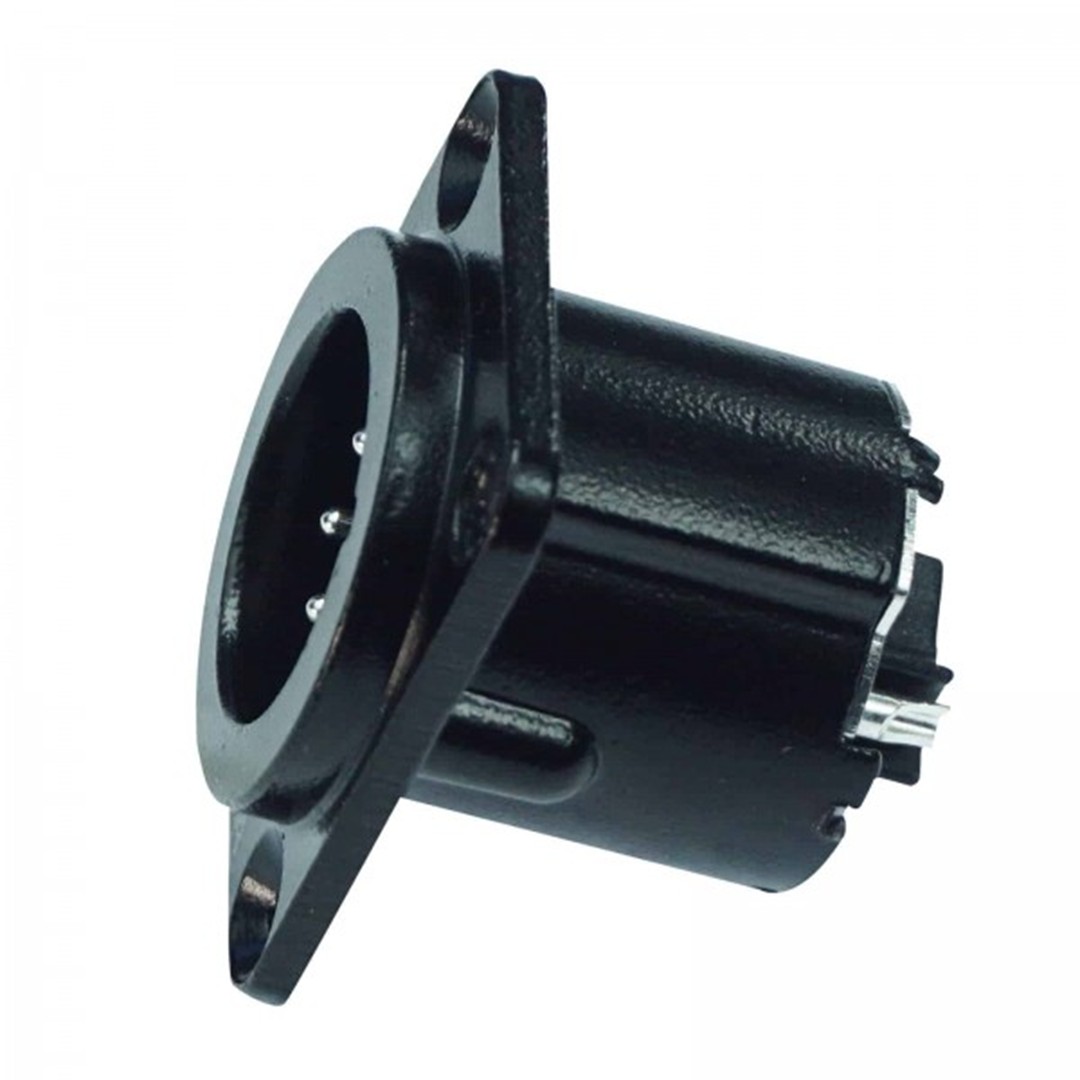

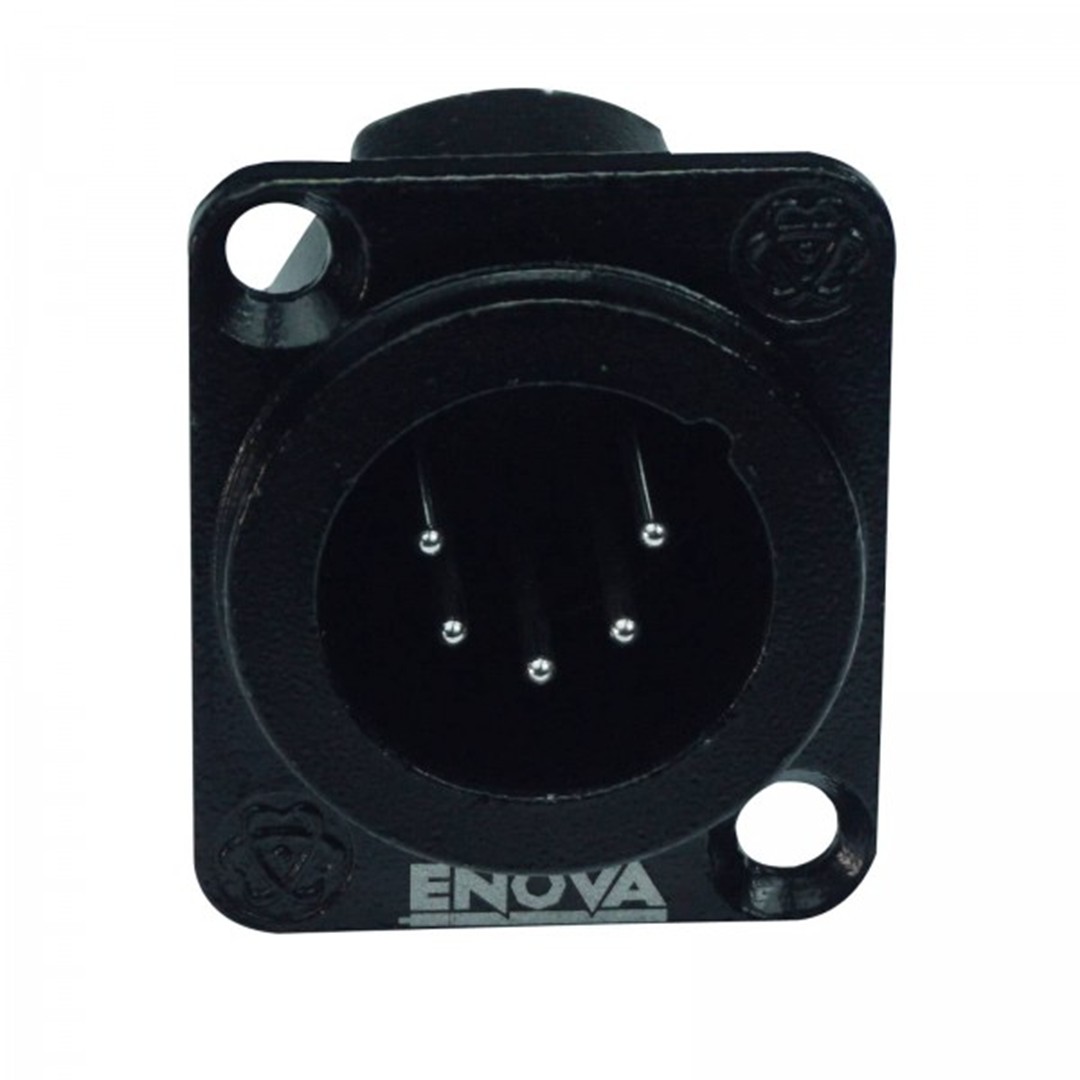

Reliable 5-Pin Male XLR Design: The Enova XL-15MB features a 5-pin male XLR layout that supports versatile signal applications. It’s ideal for DMX lighting control, balanced audio, and data transmission in complex setups. The design adheres to industry-standard XLR specifications, ensuring full compatibility with matching cable connectors.

Durable Metal Housing: Built from ZZNAL4-1 metal alloy, the connector housing offers superior mechanical stability and long-lasting durability. The black finish adds professional aesthetics while resisting corrosion and surface wear. This rugged housing is perfect for environments where reliability under physical stress is essential.

Solder Cup Terminals for Secure Wiring: The solder contacts allow for a permanent and vibration-resistant connection. This wiring mode reduces the risk of signal loss due to movement or long-term wear. It’s ideal for fixed installations where consistency and integrity matter.

Standard Mounting Dimensions: With a 24 mm mounting diameter and 3.6 mm screw holes, the connector easily fits into standard XLR panel cut-outs. The compact mounting size of 24 mm x 19 mm ensures tight integration into rack panels, wall plates, or custom gear enclosures.

Extended Operating Temperature Range: Engineered for durability in demanding environments, it functions flawlessly in temperatures from -30°C to +80°C. This makes the XL-15MB suitable for indoor studios and outdoor events alike.

High Electrical Performance: With insulation resistance above 10 GΩ and contact resistance below 3 mΩ, it guarantees minimal signal degradation. The connector supports operating voltages below 50V, making it safe for low-voltage signal applications.

Versatile Industry Use: This connector is designed for professionals across various fields including audio engineering, lighting design, broadcast, industrial control systems, and multimedia installations. It meets ROHS compliance and UL94HB flammability standards for added safety and environmental responsibility.

Specifications:

• Brand: Enova

• Connector Type: XLR, Male, 5-pin

• Version: Chassis Mount

• Housing Material: ZZNAL4-1

• Contact Material: H59-1

• Connector Housing Color: Black

• Wiring Mode: Solder Contact

• Cut-Out Diameter: Ø 24.00 mm

• Mounting Fixing Dimensions (H x W): 24.00 mm x 19.00 mm

• Number of Mounting Holes: 2

• Mounting Hole Diameter: 3.6 mm

• Working Temperature: -30°C to +80°C

• Insulation Resistance: >10 GΩ

• Contact Resistance: ≤3 mΩ

• Operating Voltage (VAC.RMS): <50 V

• Flammability Rating: UL94HB

• ROHS Compliance: Yes (EN62321-1)

• Country of Origin: China

• Applications: DJ, Lighting Technician, Keyboard Player, Sound Engineer
