Neck-Through-Body Construction: The 9-ply mahogany and walnut neck runs through the body. This construction provides rich warmth, strong resonance, and incredible sustain.

Mahogany Body Wings: Mahogany body wings complement the central neck-through structure. They also complete the Firebird’s distinctive reverse body design.

SlimTaper C Neck: The SlimTaper C neck profile provides a comfortable playing feel. Additionally, the 24.75-inch scale length supports familiar Les Paul-style response.

Bound Rosewood Fretboard: The rosewood fretboard features 22 medium jumbo frets and pearloid trapezoid inlays. Its 12-inch radius supports comfortable chords and expressive bends.

Firebird ProBucker FB720 Pickups: The Firebird ProBucker pickups use Alnico 2 magnets and recreate the original Firebird pickup specifications. Their distinctive construction delivers bright, hum-free tones.

CTS Potentiometers: Two volume and two tone controls use CTS potentiometers. Therefore, players can make precise adjustments to their Firebird’s tonal response.

LockTone Bridge and Stop Bar: The LockTone Tune-O-Matic bridge provides reliable string positioning and adjustment. Meanwhile, the LockTone Stop Bar tailpiece provides secure string anchoring.

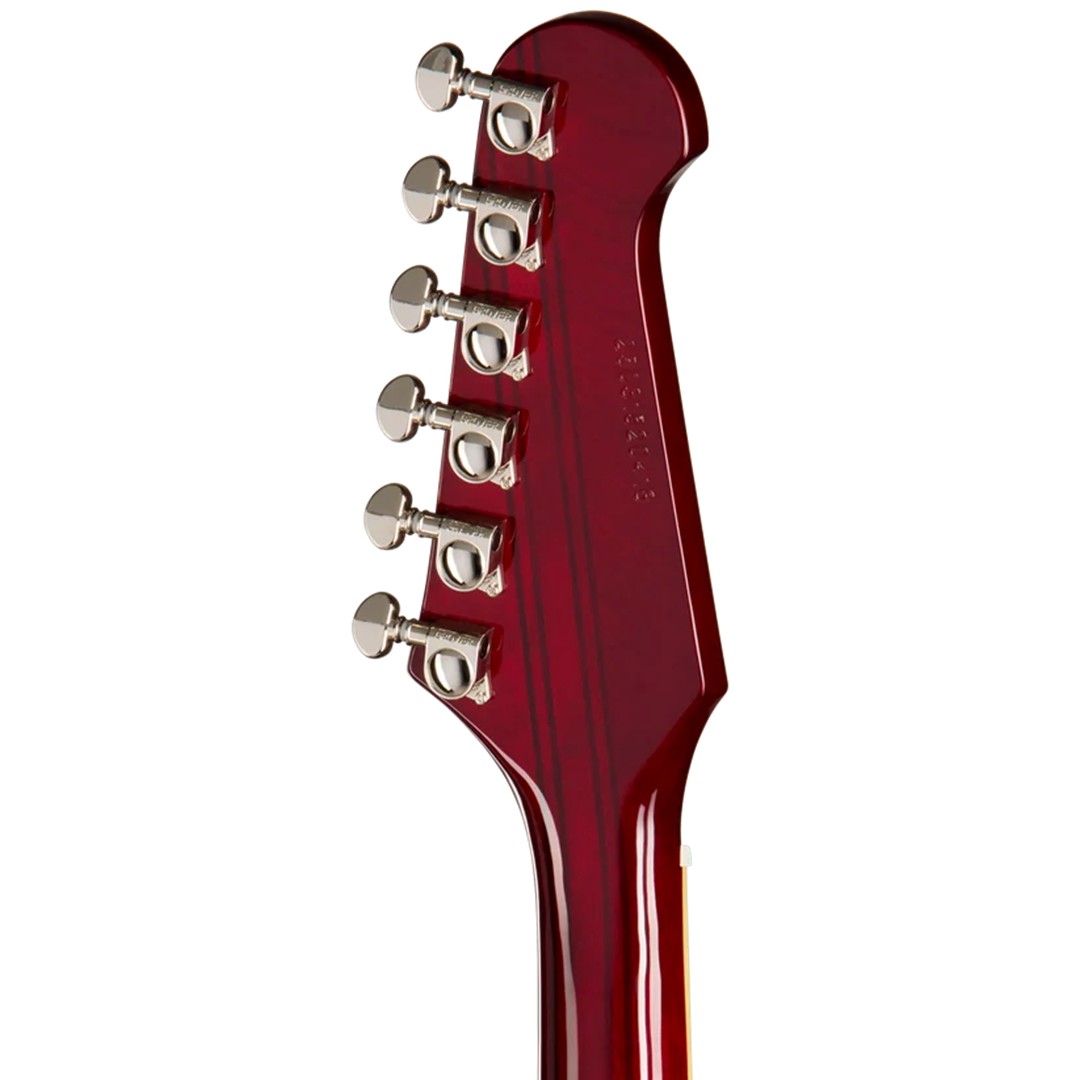

Grover Mini Rotomatic Tuners: Grover Mini Rotomatic six-in-line tuners provide precise tuning adjustments. A Graph Tech nut also supports reliable tuning stability.

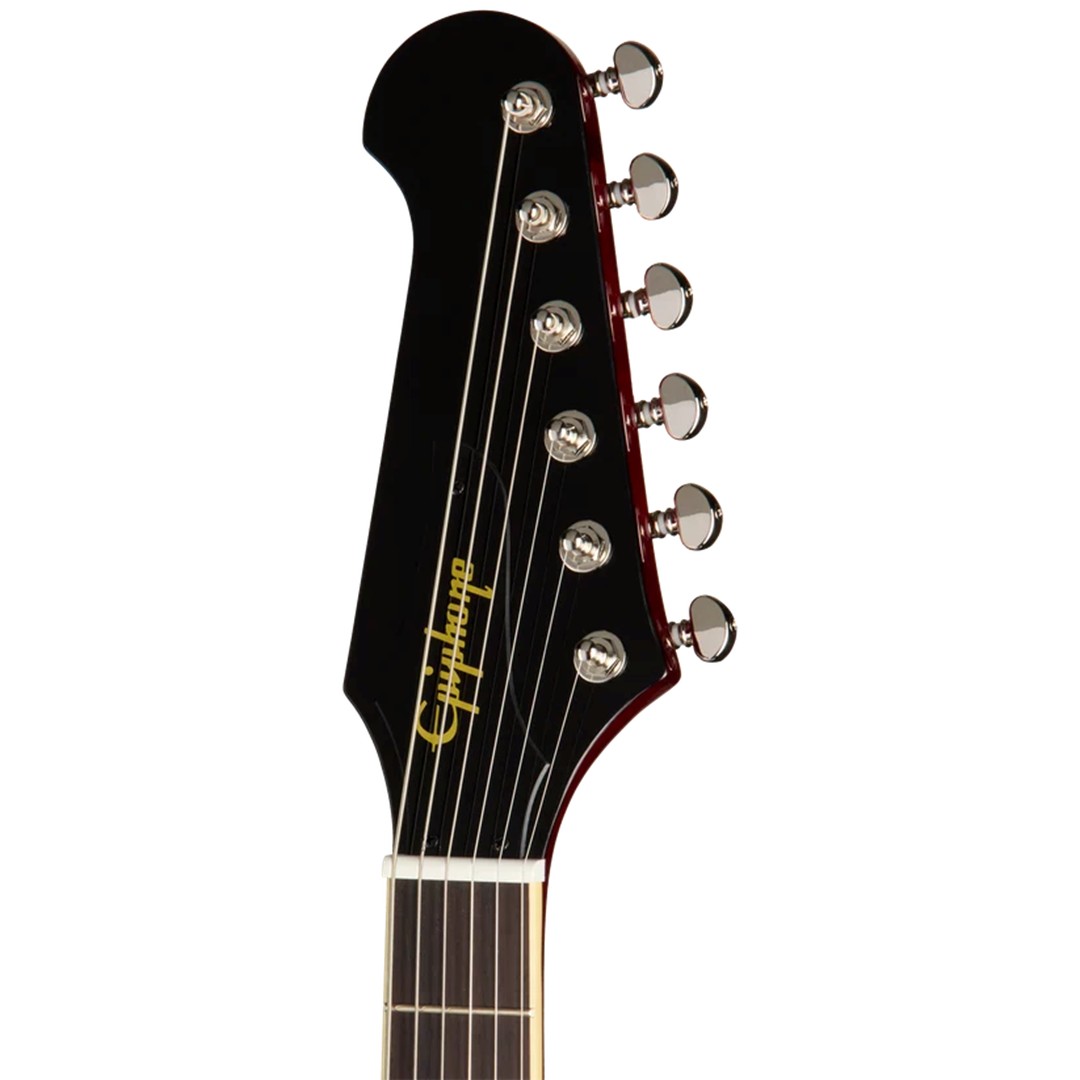

Reverse Firebird Headstock: The reverse Firebird headstock completes the guitar’s distinctive appearance. The design stays faithful to the iconic Firebird aesthetic.

Specifications:

Body:

• Body Shape: Firebird
• Body Material: Mahogany Wings
• Body Finish: Gloss
• Binding: Single-Ply Fretboard
• Body Style: Firebird

Neck:

• Neck Material: 9-ply Mahogany/Walnut
• Neck Construction: Neck-Through-Body
• Neck Profile: SlimTaper C
• Scale Length: 628.65mm / 24.75in
• Nut Material: Graph Tech
• Nut Width: 43.0mm / 1.69in
• Truss Rod: Dual Action

Fretboard:

• Fingerboard Material: Rosewood
• Fingerboard Radius: 12in / 304.8mm
• Fret Count: 22
• Frets: Medium Jumbo
• Inlays: Pearloid Trapezoid

Electronics:

• Neck Pickup: Epiphone Firebird ProBucker
• Bridge Pickup: Epiphone Firebird ProBucker
• Controls: 2 Volume, 2 Tone; CTS Potentiometers
• Pickup Selector: Epiphone 3-way Toggle
• Output Jack: Epiphone 1/4″

Hardware:

• Bridge: LockTone Tune-O-Matic
• Tailpiece: LockTone Stop Bar
• Tuning Machines: Grover Mini Rotomatic Six-in-Line
• Tuner Plating: Nickel
• Hardware Finish: Nickel
• Control Knobs: Gold Top Hat with Silver Reflector
• Control Covers: Black
• Mounting Rings: Nickel
• Pickup Covers: Nickel
• Pickguard: 3-ply; White with Red Firebird Graphic
• Strap Buttons: 2
• Switch Tip: Ivory
• Truss Rod Cover: Black; Epiphone Logo in Gold

Additional Specifications:

• Model: EIFBWRNH1
• Headstock: Reverse Firebird
• Headstock Inlay: Epiphone Logo in Gold Hotstamp on Truss Rod Cover
• Strings Gauge: .010, .013, .017, .026, .036, .046
