Powerful DSP & FIR Filtering: The 32-bit DSP processes signals at 48 kHz, using FIR filtering for natural, precise sound reproduction. It ensures phase-corrected output with detailed dynamics for music, speech, or DJ sets.

Integrated Presets for Every Use: Four intuitive presets—Music, Monitor, Voice, and External Sub—allow instant configuration. Users can switch modes quickly without complex adjustments, ensuring optimal sound for every situation.

High-Efficiency Class-D Amplifier: The 1200-watt bi-amped Class-D amplifier delivers punchy bass and clear highs. Its fanless design prevents noise, maintaining clean sound even at high volumes.

Versatile Connectivity Options: Includes a combo XLR/TRS mic/line input, Bluetooth 5.4 with True Wireless Stereo, Mix Out, and Thru outputs. This allows easy integration into larger systems or wireless setups.

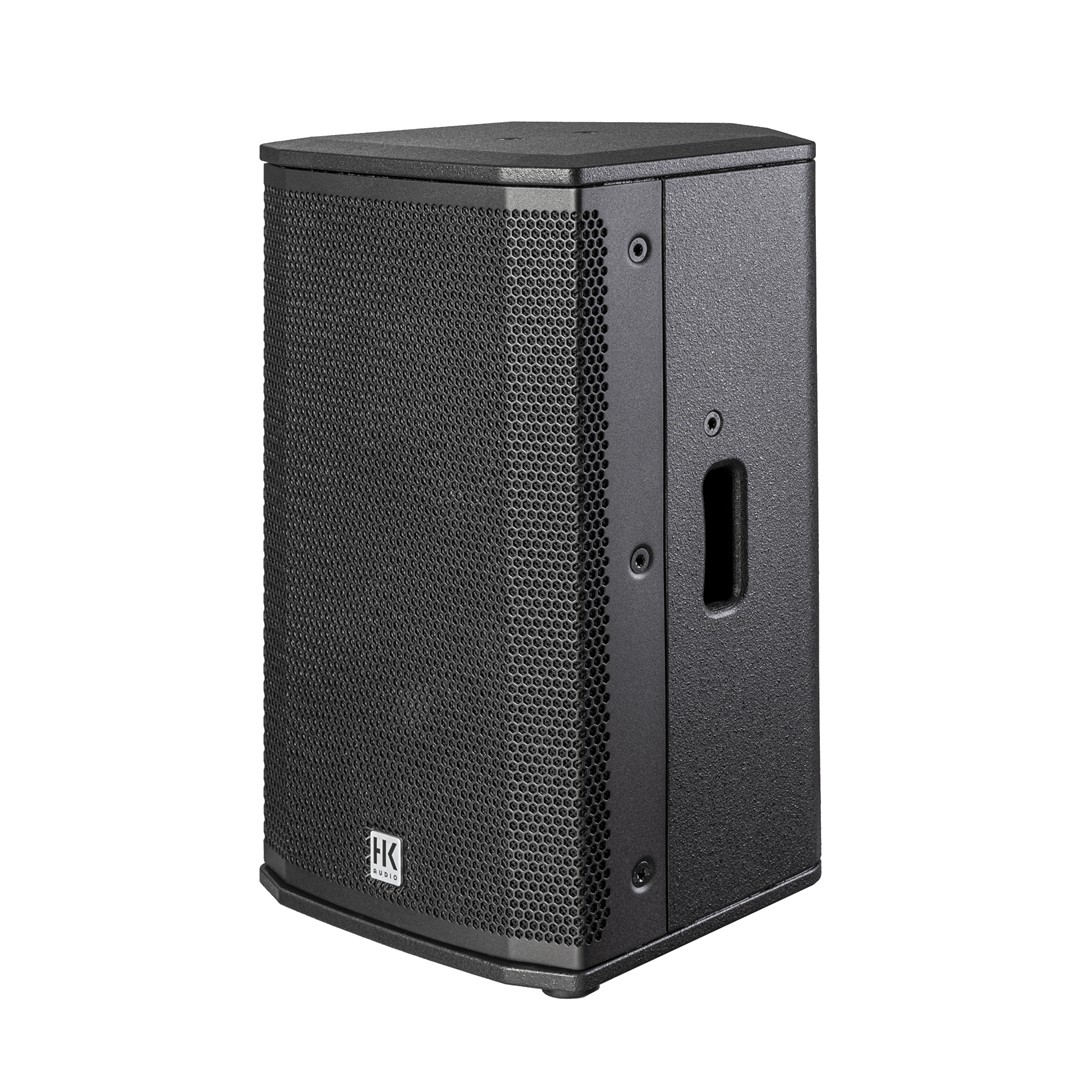

Flexible Application Modes: Use as a full-range speaker, stage monitor, or top unit paired with a subwoofer. The LUNAR 110 XA adapts seamlessly to mobile gigs, fixed installations, and professional events.

Robust German-Built Cabinet: Manufactured in Germany, the MDF enclosure with acrylic enamel finish offers durability and elegance. Rigging options include DuoTilt 3°/7°, M8 points, and optional U-bracket mounting for versatile placement.

Portable & Easy to Handle: Two SingleGrip handles simplify transport, while the lightweight 16 kg design ensures mobility. Setup is quick, enabling plug-and-play performance without extensive technical knowledge.

Expandable with PORTABLE SUB Series: Combine with HK Audio’s PORTABLE SUB series for extended low-frequency performance. The integrated presets match perfectly, creating scalable, high-performance PA systems for any venue.

Specifications:

System Configuration:

• Concept: Active 2‑way loudspeaker (bass reflex)
• Crossover: FIR X‑Over, 2.5 kHz, 60 dB/octave
• DSP: 32‑bit DSP with FIR filter and phase correction
• Sample Rate: 48 kHz
• Latency: ~3 ms

Drivers:

• Low/Mid: 1 x 10” cone speaker with 2” voice coil
• High: 1 x 1” compression driver with 1” voice coil
• Horn: Constant directivity waveguide for smooth dispersion

Performance:

• Maximum SPL (peak): 128 dB
• Sensitivity (1 W/1 m): 110 dB
• Frequency Range (‑6 dB): 66 Hz – 18 kHz
• Frequency Range (‑10 dB): 61 Hz – 20 kHz
• Dispersion Angle (‑6 dB): 90° horizontal × 55° vertical

Amplification & Power:

• Power Amplifier Type: Class‑D, bi‑amped
• RMS Output Power: 600 W
• Peak Output Power: 1200 W
• Power Consumption:
  • ~0.5 A @ 220‑240 V AC (1/8 power)
  • ~0.9 A @ 100‑120 V AC (1/8 power)

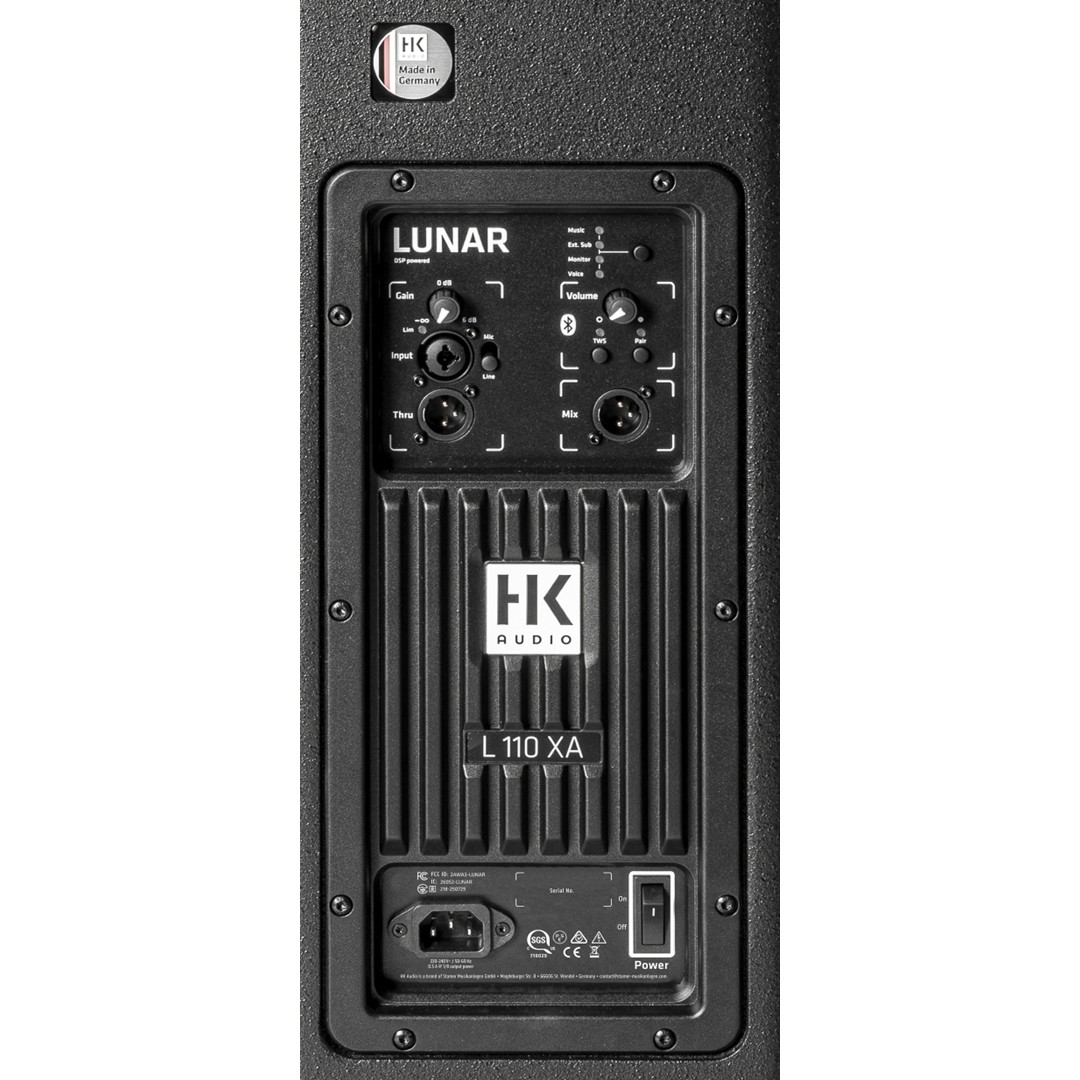

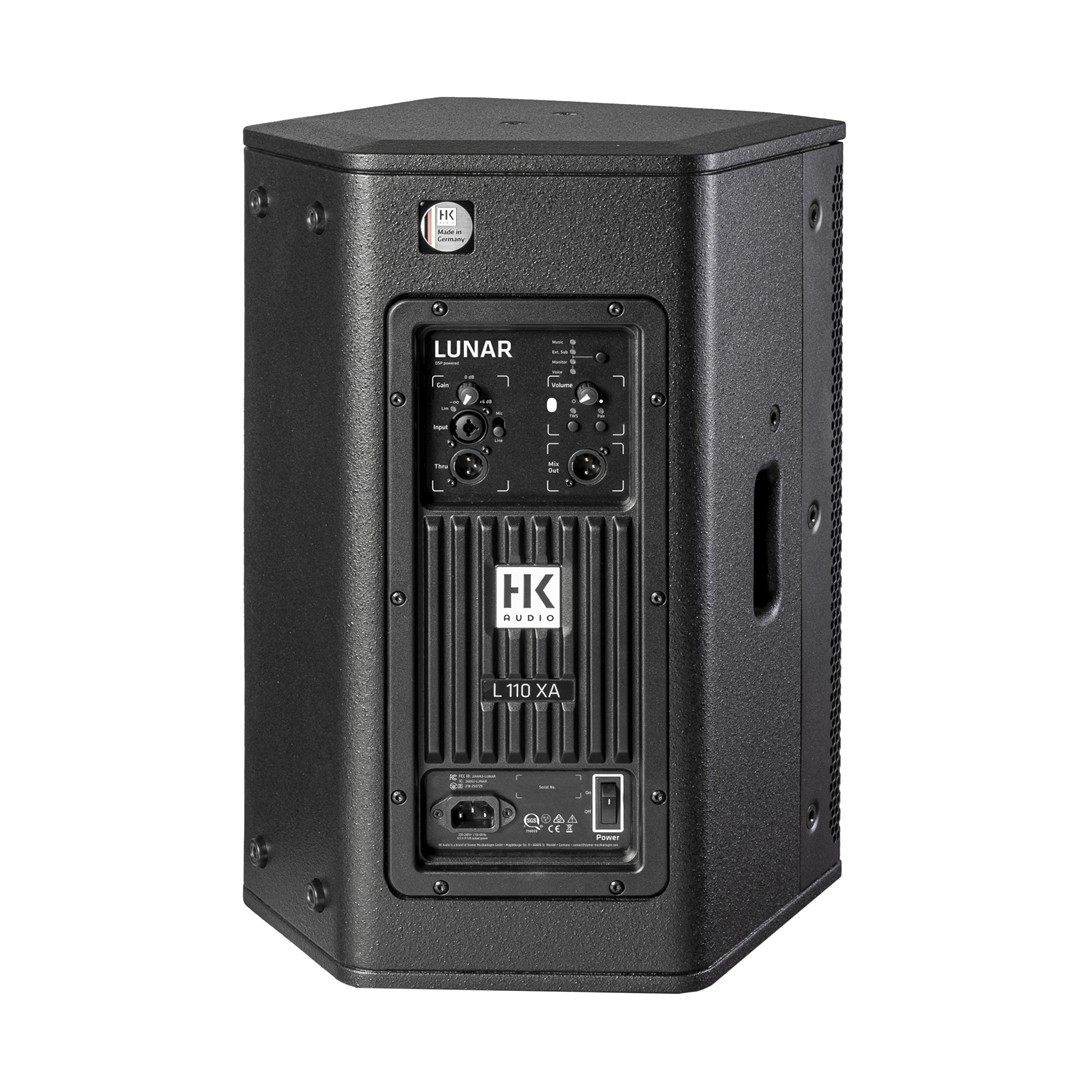

Inputs & Outputs:

• Analog Input: 1 x XLR/TRS combo (Mic/Line), switchable sensitivity
• Thru Output: 1 x XLR (pass‑through of analog input)
• Mix Out: 1 x XLR (summed analog + Bluetooth signal)
• Bluetooth: Yes — Bluetooth 5.4 with True Wireless Stereo (TWS)

Protection & Processing:

• Speaker Protection:
  Subsonic filter, Peak & RMS limiters, Multiband limiter
• DSP Control:
  Crossover, EQ presets, time alignment, RMS/peak limiting

Presets:

• Music (standard/full‑range)
• External Sub (for use with subwoofers)
• Monitor (stage monitor mode)
• Voice (speech reinforcement)

Mechanical & Rigging:

• Cabinet Material: MDF with acrylic enamel surface
• Color: Jet Black (RAL 9005)
• Grill: 1.5 mm steel, acoustic foam backed
• Mounting Options:

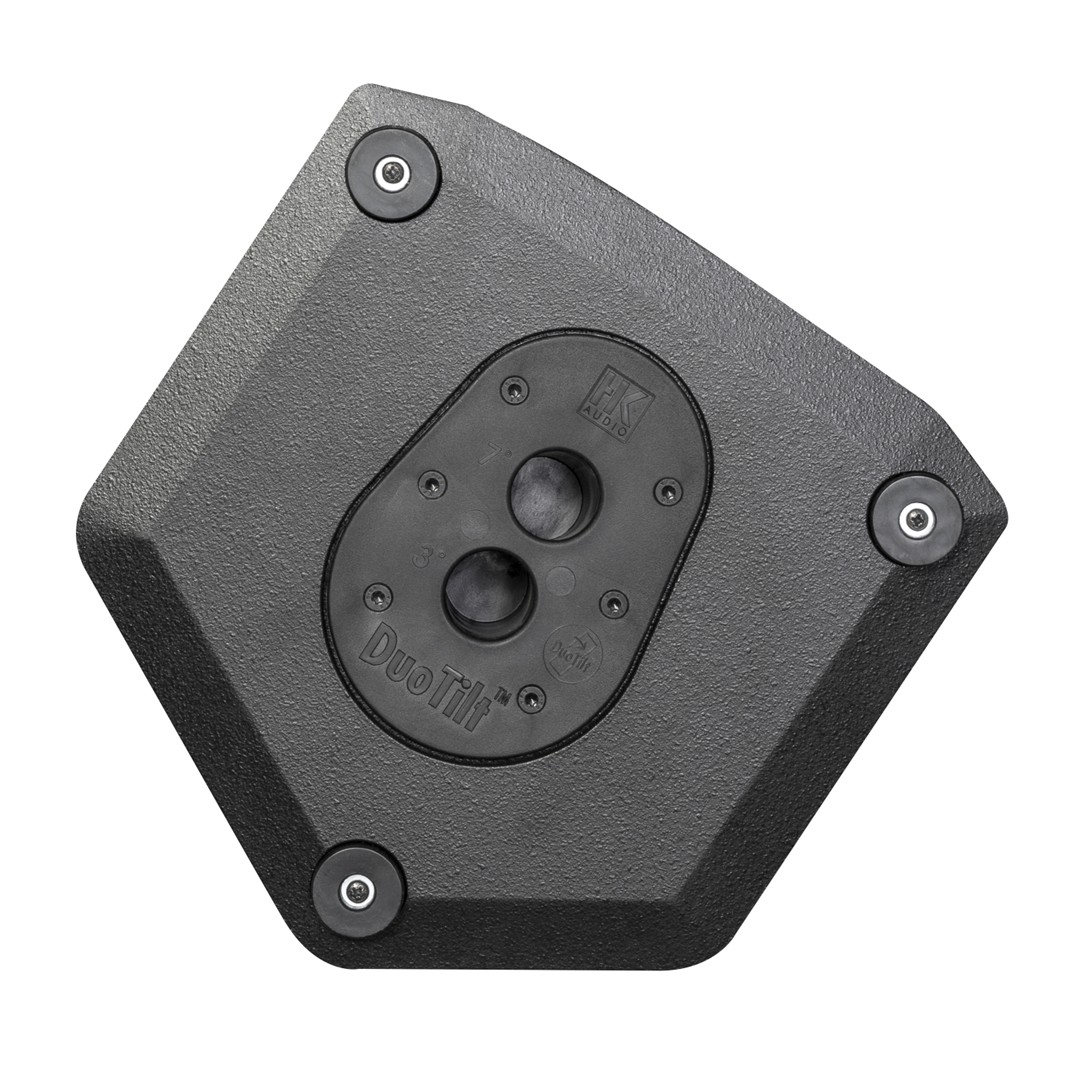

  DuoTilt flanges (3° / 7° tilt angles), 4 x M8 rigging points
  Optional U‑bracket mounting points for ceiling install
• Monitor Angle: 33° integrated

Handles & Mobility:

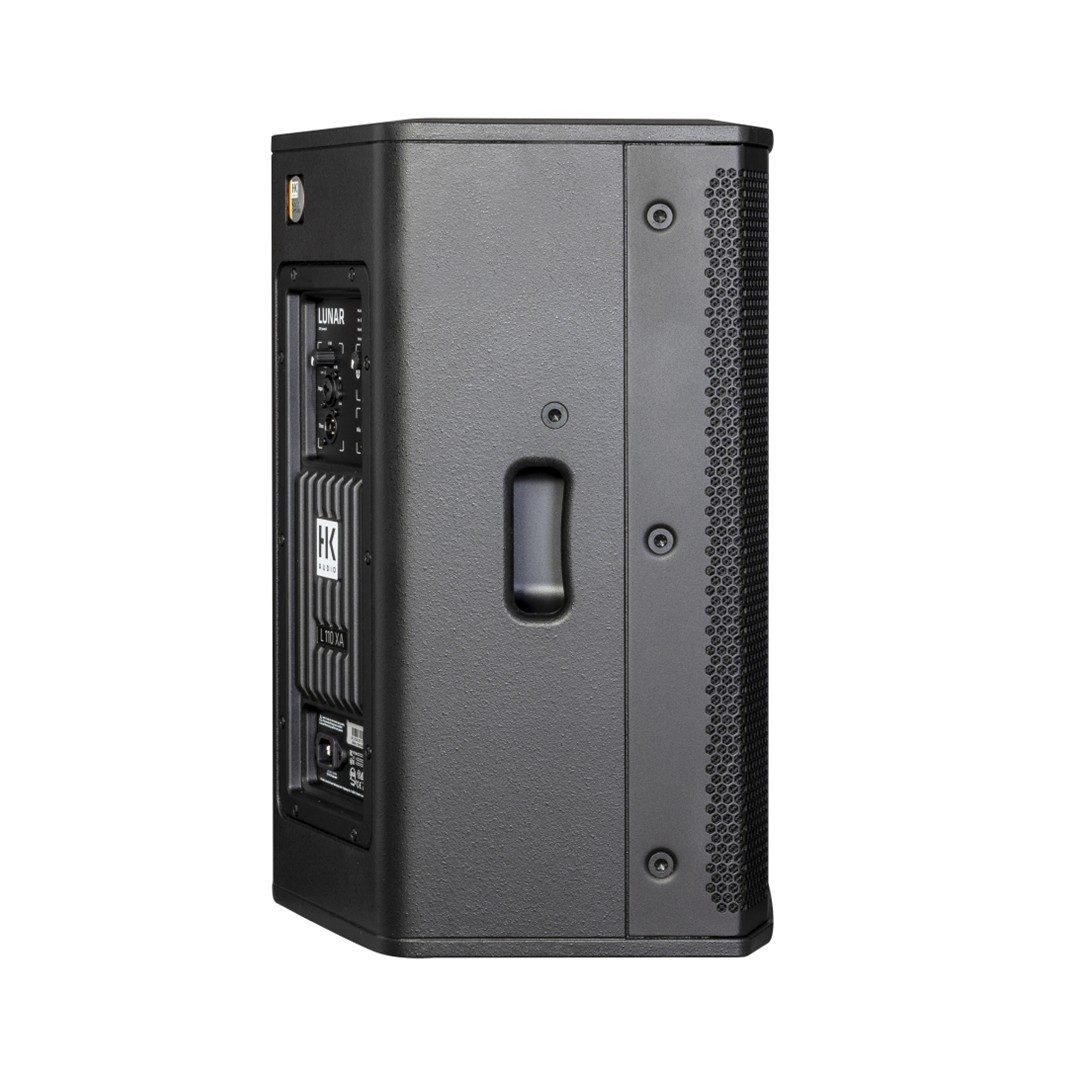

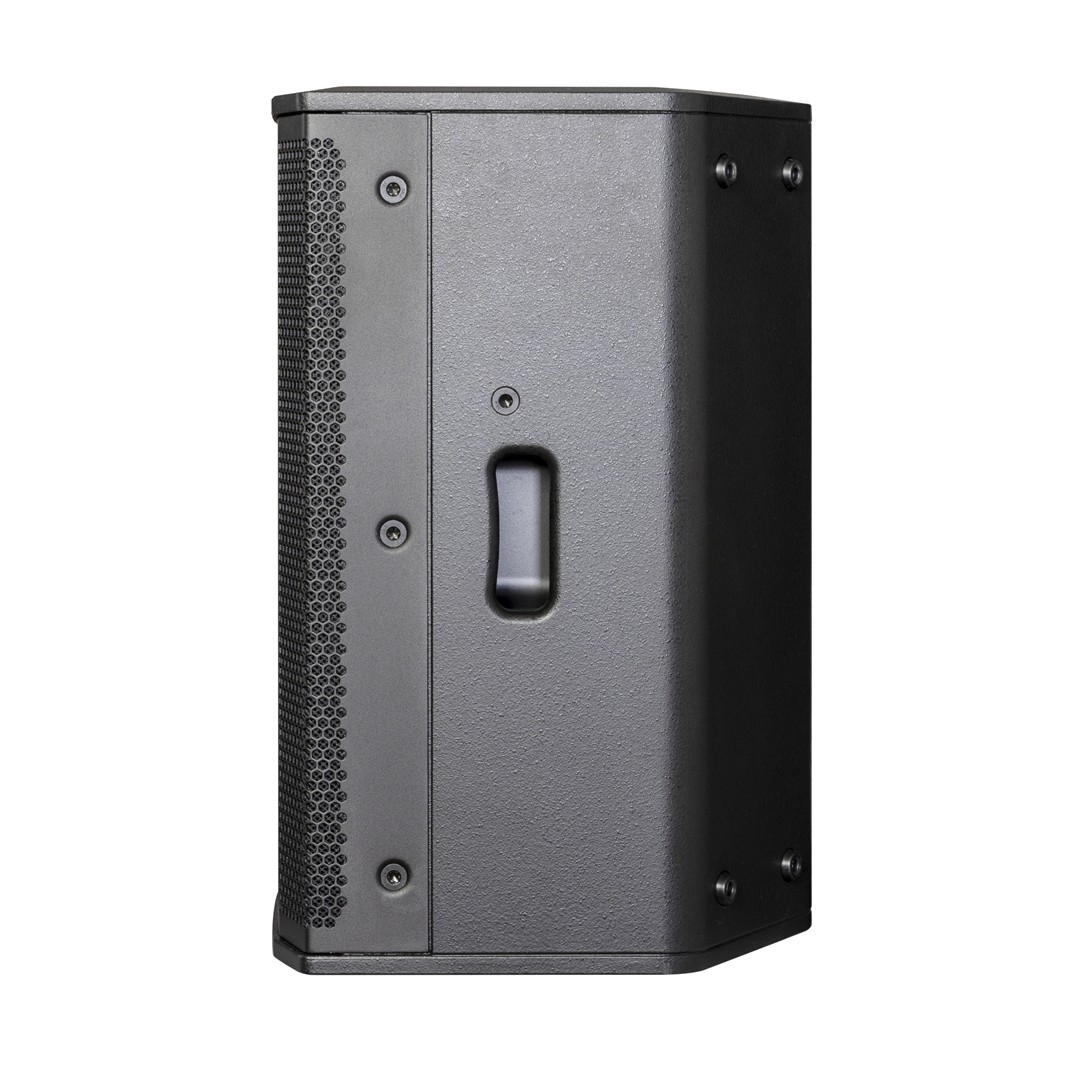

• Handles: 2 x SingleGrip for easy carrying

Dimensions & Weight:

• Dimensions (W × H × D): 32.4 × 52.4 × 33.4 cm
• Weight: Approx. 16 kg
