Special Elliptical Stylus: The special elliptical stylus provides detailed record playback while supporting demanding club performance.

Built for Back-Cueing: The stylus can withstand heavy back-cueing, making it suitable for active DJ techniques.

Strong Output: An 8 mV output provides a strong signal for compatible mixers and preamplifiers.

Clear Stereo Separation: The 23 dB channel separation supports defined stereo reproduction across the audible frequency range.

Broad Frequency Response: The 20 Hz–20 kHz response supports wide musical coverage with a +/-1.5 dB response.

Reliable Tracking: The stylus achieves 80 μm tracking ability at 315 Hz under specified conditions.

Flexible Tracking Force: Users can operate within a 2.0–5.0 g tracking range, with 3.0 g recommended.

Specifications:

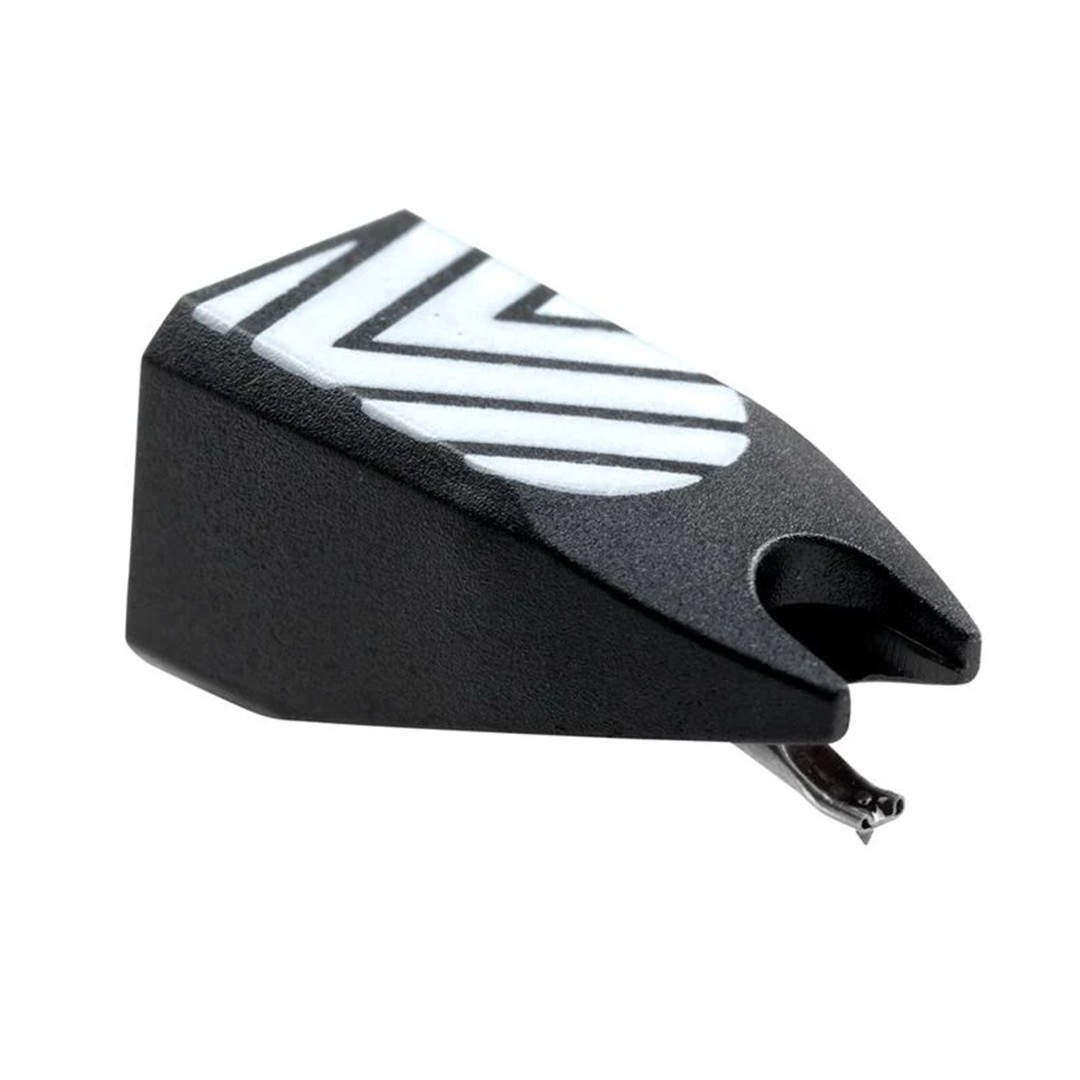

• Product: Ortofon STYLUS COCOON STD
• Product Type: Cocoon replacement stylus
• Stylus Type: Special Elliptical
• Channel Balance at 1 kHz: 1.5 dB
• Output Voltage at 1 kHz, 5cm/sec: 8 mV
• Channel Separation at 1 kHz: 23 dB
• Frequency Response: 20 Hz–20 kHz, +/-1.5 dB
• Tracking Ability at 315 Hz: 80 μm
• Compliance, Dynamic, Lateral: 7 μm/mN
• Tracking Force Range: 2.0–5.0 g (20–50 mN)
• Recommended Tracking Force: 3.0 g (30 mN)
• Stylus Weight: 1 g

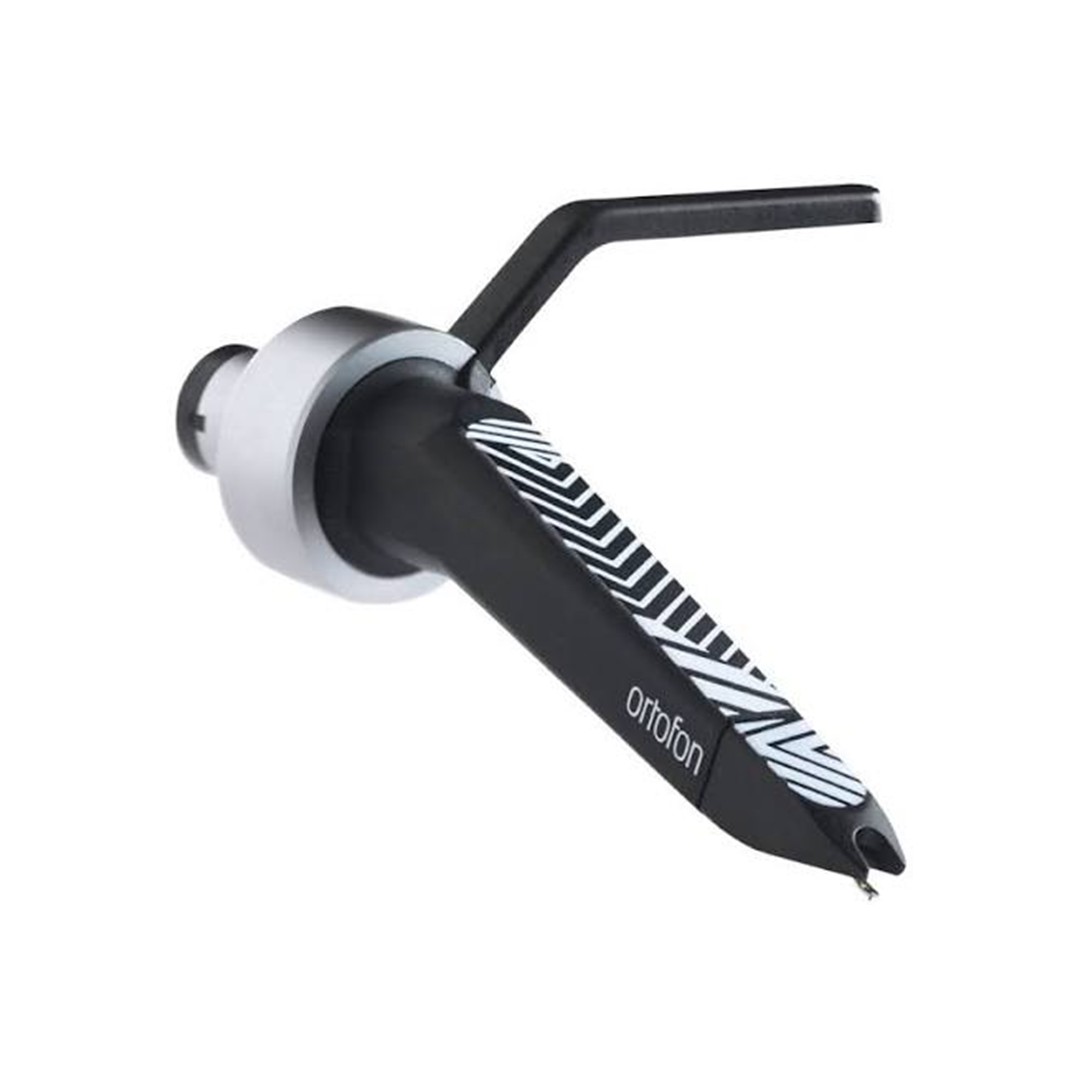

• Compatible cartridge: OM, Concorde MKI Series & Concorde Nightclub MkII
