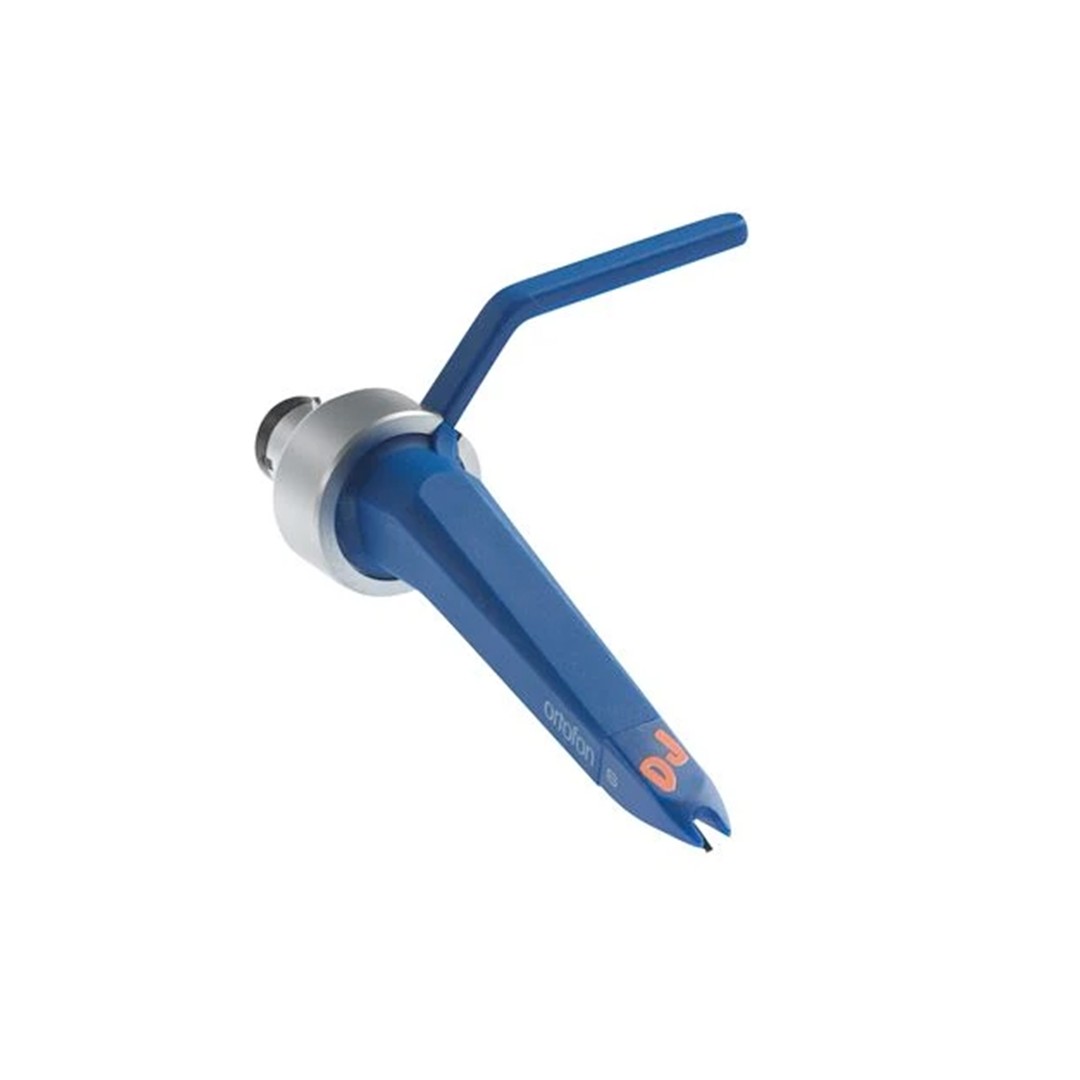

Ortofon STYLUS DJ S Replacement Stylus

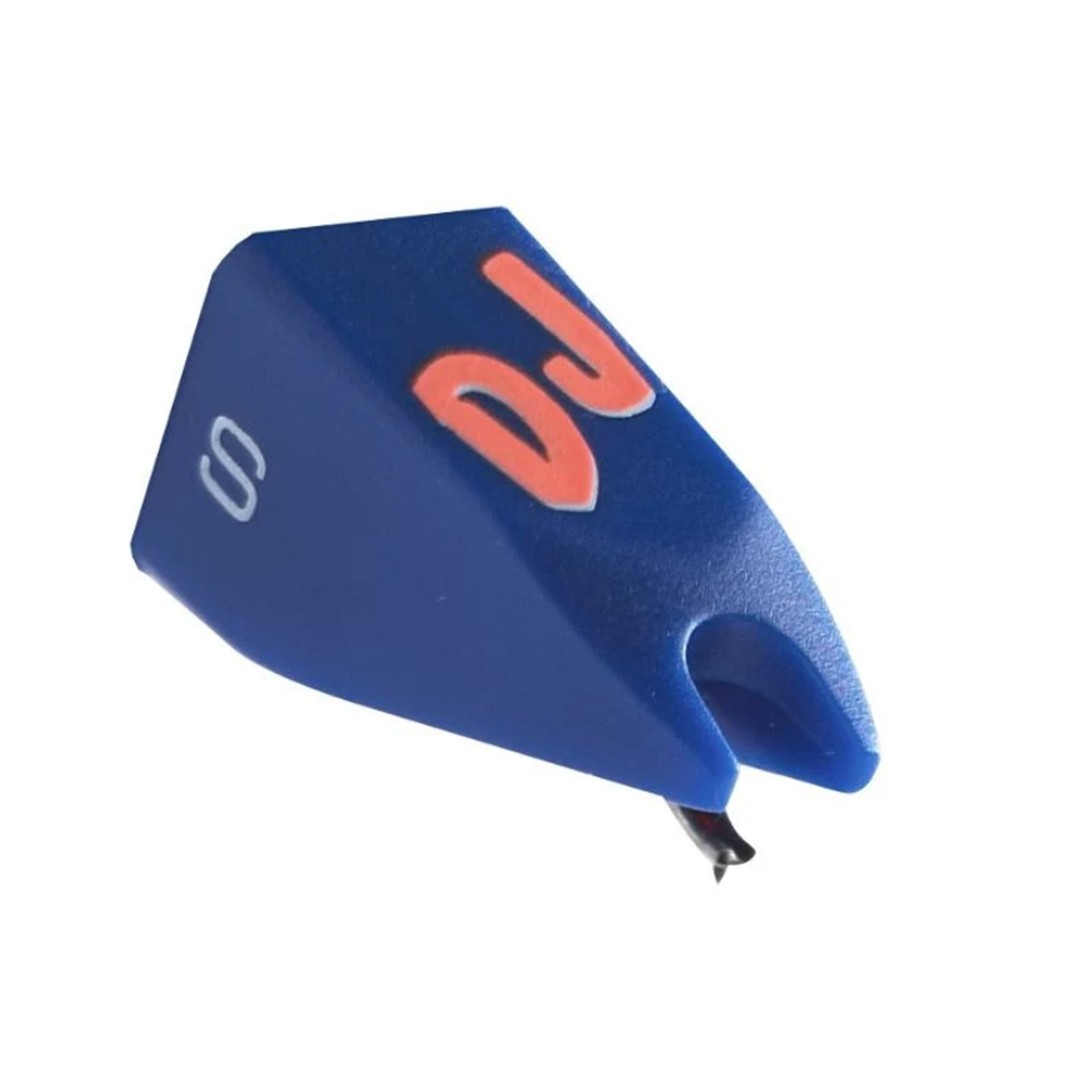

Ortofon STYLUS DJ S Replacement Stylus - Top Front Left

Ortofon STYLUS DJ S Replacement Stylus

Gallery

R1,079.00

In stock

Ortofon STYLUS DJ S Replacement Stylus

R1,079.00

In stock

OVERVIEW

The Ortofon STYLUS DJ S is a reliable replacement stylus for the Concorde DJ MkI cartridge. It features a fine spherical stylus and balanced cantilever designed for strong tracking and accurate sound reproduction. Its low-wear design helps reduce record wear, while 80 μm tracking ability and 6 mV output provide dependable performance across various DJ applications and music styles.
Read More Read Less

Low-Wear Stylus Design: The STYLUS DJ S features a low-wear design that helps reduce record wear during frequent DJ use and playback.

Fine Spherical Stylus: Its R 18 μm spherical stylus provides dependable groove contact while supporting the demanding movements used during DJ performance.

Rigid Cantilever: The specially developed cantilever provides outstanding rigidity, helping the stylus maintain stable tracking during active turntable use.

Excellent Tracking Ability: With 80 μm tracking ability at 315 Hz, the DJ S provides reliable groove handling across different DJ performance applications.

Accurate Sound Reproduction: The DJ S combines dependable tracking with accurate sound reproduction, making it suitable for different music styles and DJ setups.

Strong 6 mV Output: The stylus delivers 6 mV output at 1 kHz and 5 cm/sec, providing a strong signal for compatible phono systems.

Versatile DJ Performance: The DJ S works across a wide range of music styles, making it a practical all-round replacement stylus for DJs.

Flexible Tracking Force: The stylus supports a 2.0–4.0 g tracking force range, with 3.0 g recommended for reliable everyday performance.

Reduced Record Wear: Its low-wear stylus construction provides an advantage for busy DJs who regularly play and handle vinyl records.

Concorde DJ Compatibility: The STYLUS DJ S is designed as a replacement stylus for the Concorde DJ MkI cartridge, providing a straightforward replacement option.

Specifications

  • Product: Ortofon STYLUS DJ S
  • Compatible Cartridge: Concorde DJ MkI Cartridge
  • Channel balance at 1 kHz: 2 dB
  • Output voltage at 1 kHz, 5 cm/sec: 6 mV
  • Channel separation at 1 kHz: 23 dB
  • Tracking ability at 315 Hz: 80 μm
  • Compliance, dynamic, lateral: 9 μm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 18 μm
  • Tracking force range: 2.0–4.0 g (20–40 mN)
  • Recommended tracking force: 3.0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance/DC resistance: 750 Ohm
  • Cartridge weight: Stylus = 1 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 450 mH
  • Recommended load capacitance: 200–600 pF
