Special Elliptical Stylus: The N-Club MkII uses a Special Elliptical stylus for detailed and accurate vinyl playback. Its r/R 13/25 μm tip radius supports precise groove tracing.

High Output Performance: The Nightclub MkII specification provides an 8 mV output voltage at 1 kHz and 5 cm/sec. This output suits DJ mixers with integrated phono preamps.

Detailed Frequency Response: The stylus supports a 20 Hz–20 kHz frequency response with a tolerance of ±1.5 dB. This range supports broad and consistent vinyl reproduction.

Reliable Groove Tracking: The N-Club MkII achieves 80 μm tracking ability at 315 Hz. Additionally, Ortofon specifies a recommended tracking force of 3.0 g.

DJ and Studio Use: Ortofon developed the Nightclub MkII for both club and studio environments. The replacement stylus maintains the performance characteristics associated with this cartridge.

Balanced Stereo Reproduction: The Nightclub MkII provides 23 dB of channel separation at 1 kHz. Its channel balance measures 1.5 dB at the same frequency.

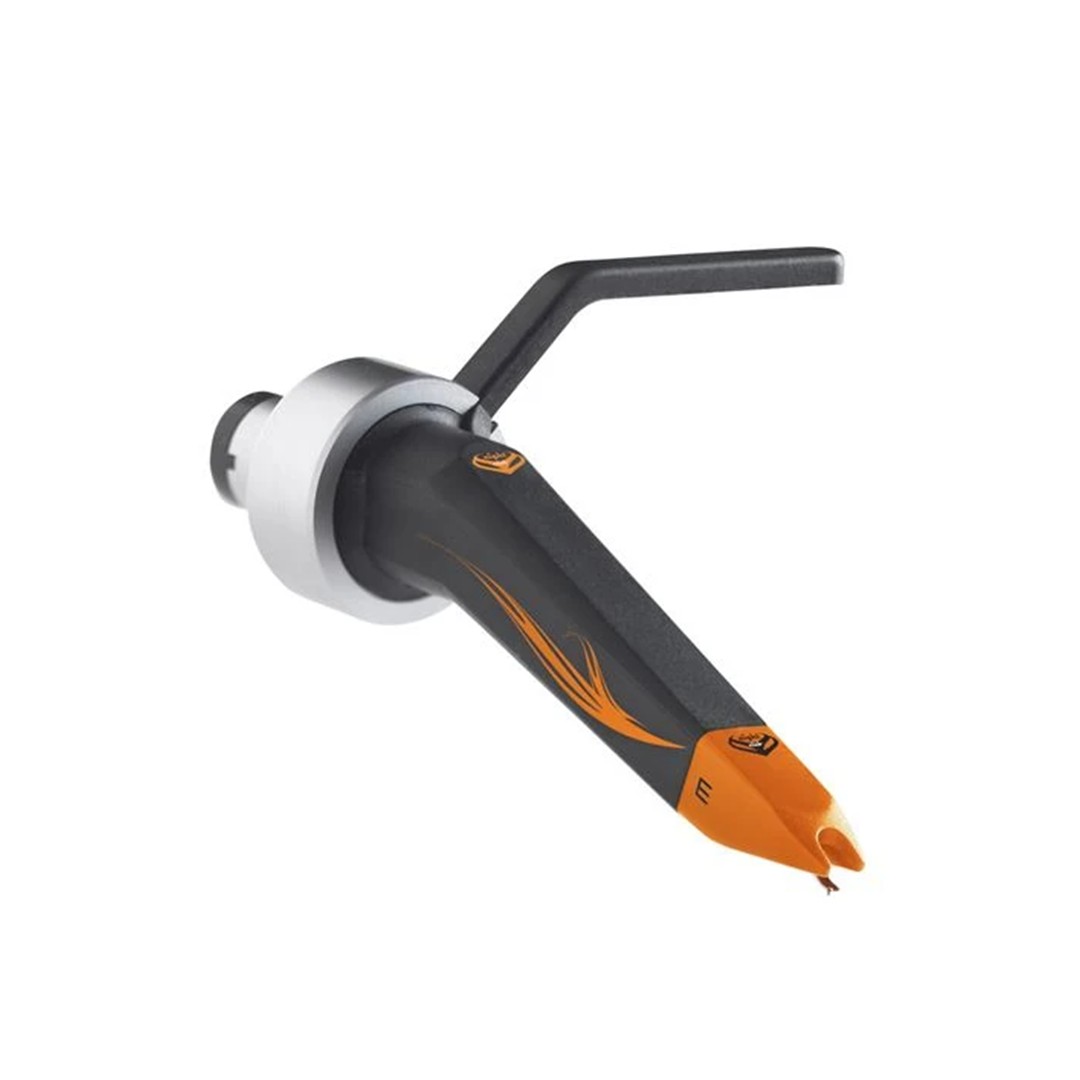

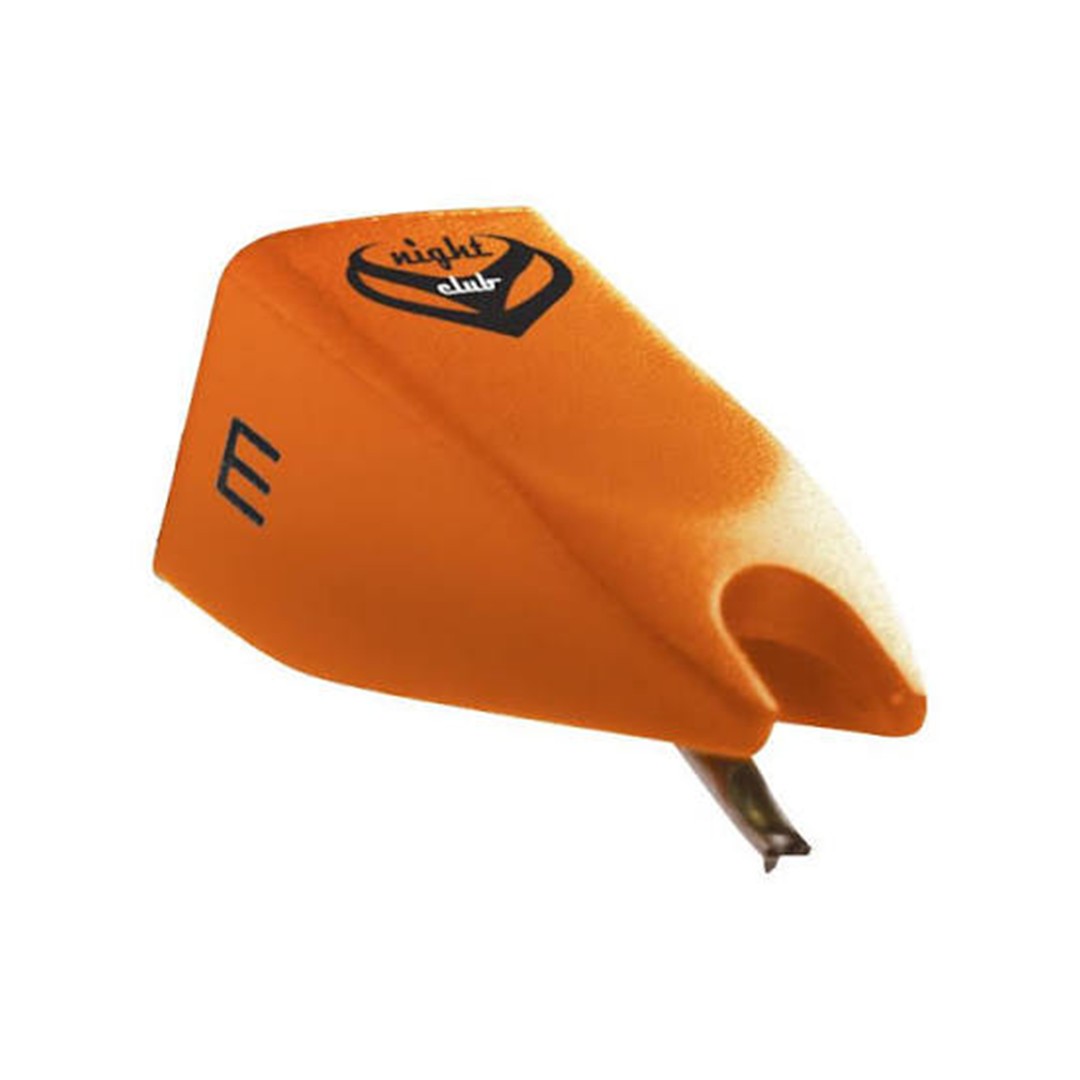

Designed for Nightclub MkII: The N-Club MkII serves as the replacement stylus for the Nightclub MkII cartridge. Ortofon’s compatibility information specifically lists Nightclub MkII among its supported stylus combinations.

Specifications:

• Product: Ortofon Stylus N-Club MKII
• Compatible Cartridge: Nightclub MkII
• Stylus Type: Special Elliptical
• Stylus Tip Radius: r/R 13/25 μm
• Output Voltage: 8 mV at 1 kHz, 5 cm/sec
• Channel Balance: 1.5 dB at 1 kHz
• Channel Separation: 23 dB at 1 kHz
• Frequency Response: 20 Hz–20 kHz, ±1.5 dB
• Tracking Ability: 80 μm at 315 Hz
• Compliance, Dynamic, Lateral: 20 μm/mN
• Tracking Force Range: 2.0–5.0 g (20–50 mN)
• Recommended Tracking Force: 3.0 g (30 mN)
• Tracking Angle: 20°
• Internal Impedance / DC Resistance: 1,000 Ohm
• Cartridge Weight: 18.5 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 580 mH
• Recommended Load Capacitance: 200–600 pF
