Special Elliptical Diamond: The Special Elliptical diamond supports detailed sound reproduction while maintaining controlled contact with record grooves.

High Output: The Stylus NC E provides a 6 mV output voltage at 1 kHz and 5 cm/sec.

Wide Frequency Response: Its 20 Hz–20 kHz frequency response supports detailed playback across a broad musical range.

Accurate Channel Separation: The stylus provides 23 dB channel separation, supporting clear stereo reproduction during vinyl playback.

Controlled Groove Tracking: With 65 μm tracking ability, the stylus handles record grooves accurately during DJ and studio applications.

Reduced Scratching: The Special Elliptical stylus design helps produce sound with minimal scratching during playback.

Flexible Tracking Force: The stylus supports 2.0–5.0 g tracking force, with Ortofon recommending 3.0 g for operation.

Specifications:

• Brand: Ortofon

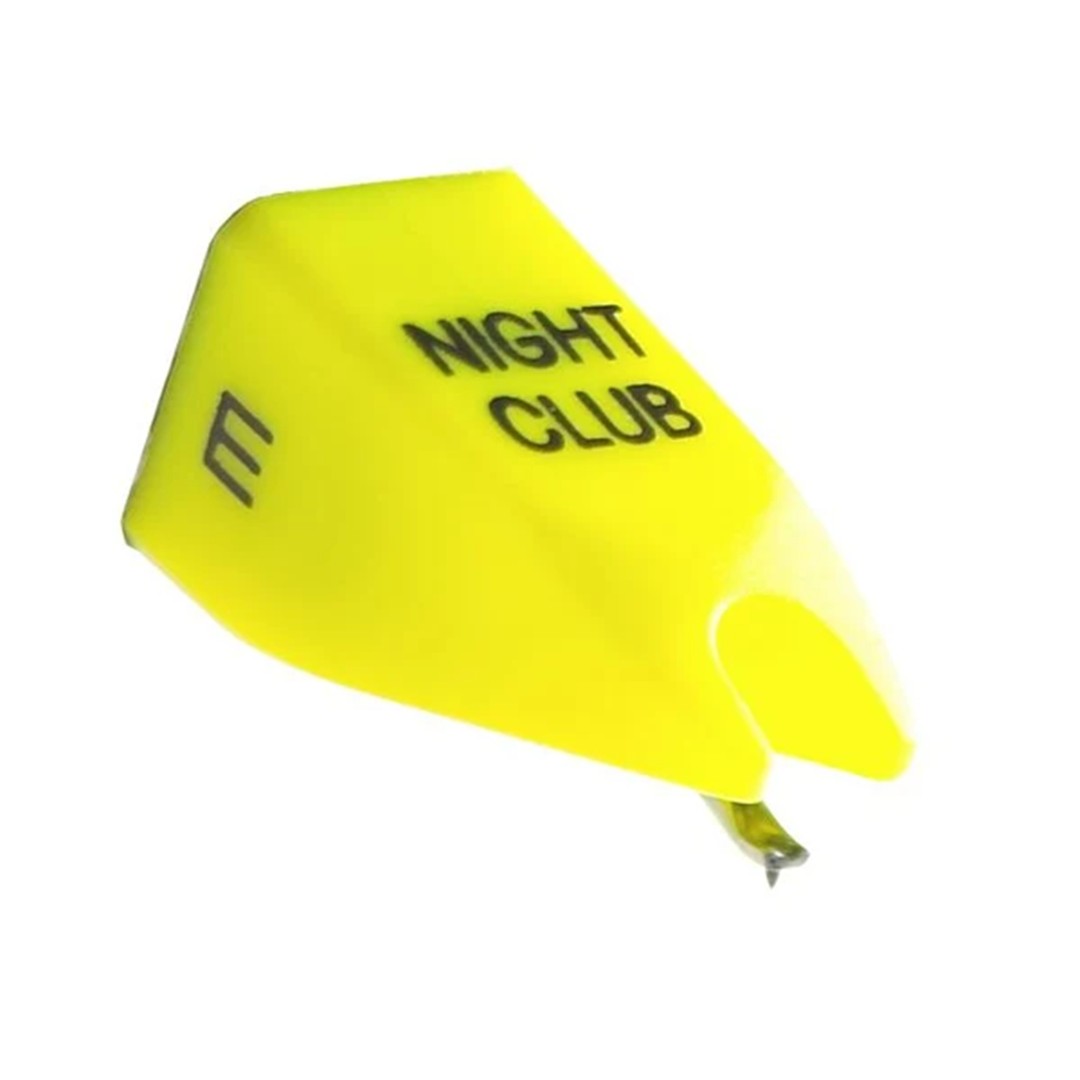

• Product: Stylus NC E (Night Club E)
• Application: Elliptical replacement stylus

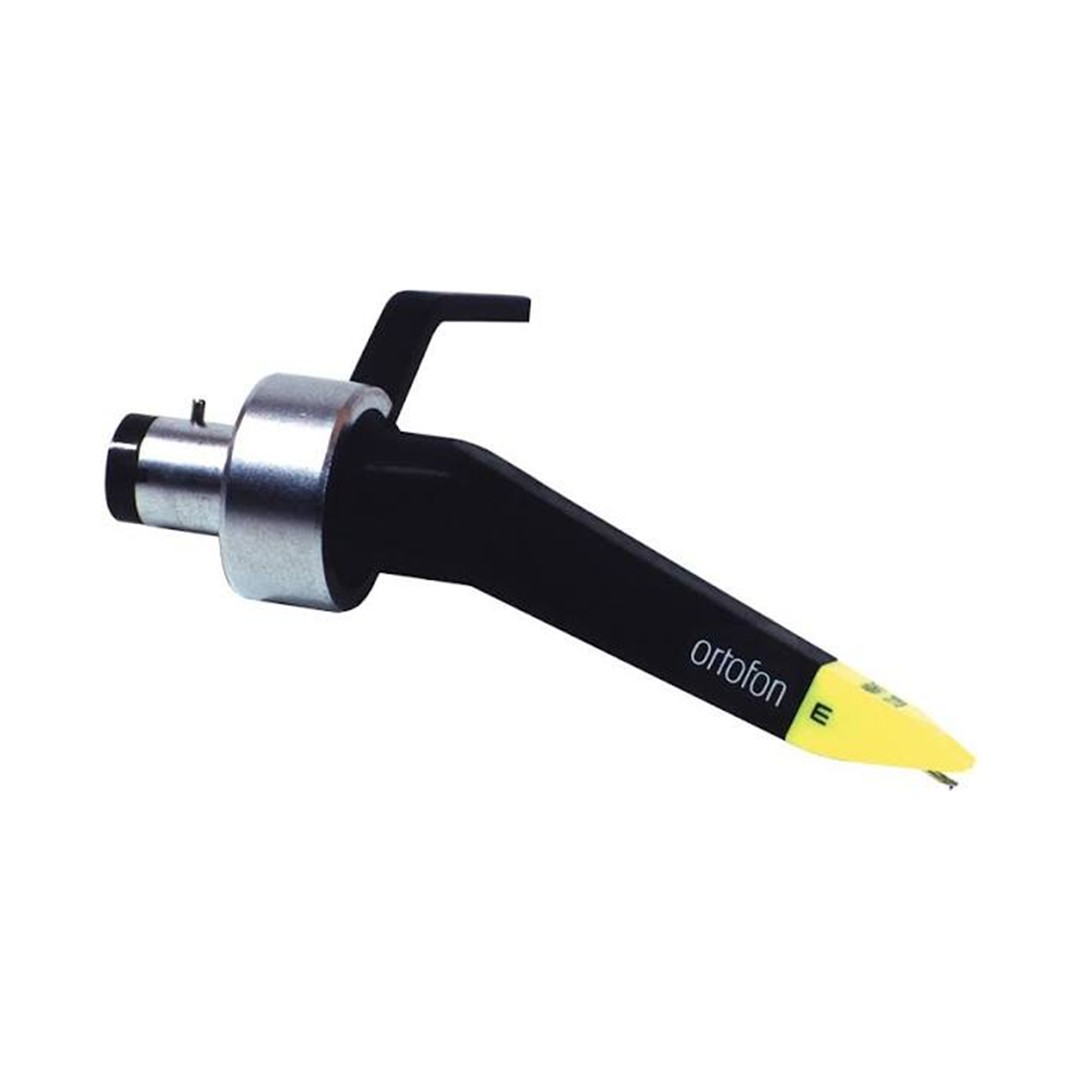

• Compatible Cartridge: Nightclub MKI cartridge
• Channel Balance at 1 kHz: 1.5 dB
• Output Voltage at 1 kHz, 5 cm/sec: 6 mV
• Channel Separation at 1 kHz: 23 dB
• Frequency Response: 20 Hz–20 kHz, ±1.5 dB
• Tracking Ability at 315 Hz: 65 μm
• Compliance, Dynamic, Lateral: 7 μm/m N
• Stylus Type: Elliptical
• Stylus Tip Radius: r/R 8/18 μm
• Tracking Force Range: 2.0–5.0 g (20–50 mN)
• Recommended Tracking Force: 3.0 g (30 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1000 Ohm
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 580 mH
• Recommended Load Capacitance: 200–600 pF
