Spherical Stylus Design: The STYLUS PRO uses a spherical stylus with an R 18 μm tip radius for reliable groove contact and consistent playback.

Robust Cantilever: Its robust cantilever supports demanding turntable activity while providing the durability needed for regular DJ applications.

Scratch and Back-Cueing Performance: The Pro cartridge supports basic scratching and back-cueing techniques, making it suitable for active DJ performance.

Versatile DJ Application: The STYLUS PRO provides consistent performance across a wide range of music styles and general-purpose DJ applications.

Balanced Sound Quality: The Pro Series delivers a flat, transparent sound across the spectrum while maintaining practical output and sound quality.

Reliable Tracking Ability: With 70 μm tracking ability at 315 Hz, the stylus provides dependable tracking during everyday DJ performance.

5 mV Output: The stylus delivers 5 mV output at 1 kHz and 5 cm/sec, providing practical signal performance for DJ systems.

Practical Tracking Force: The STYLUS PRO supports 3.0–5.0 g tracking force, with 4.0 g recommended for consistent tracking and reliable operation.

Specifications:

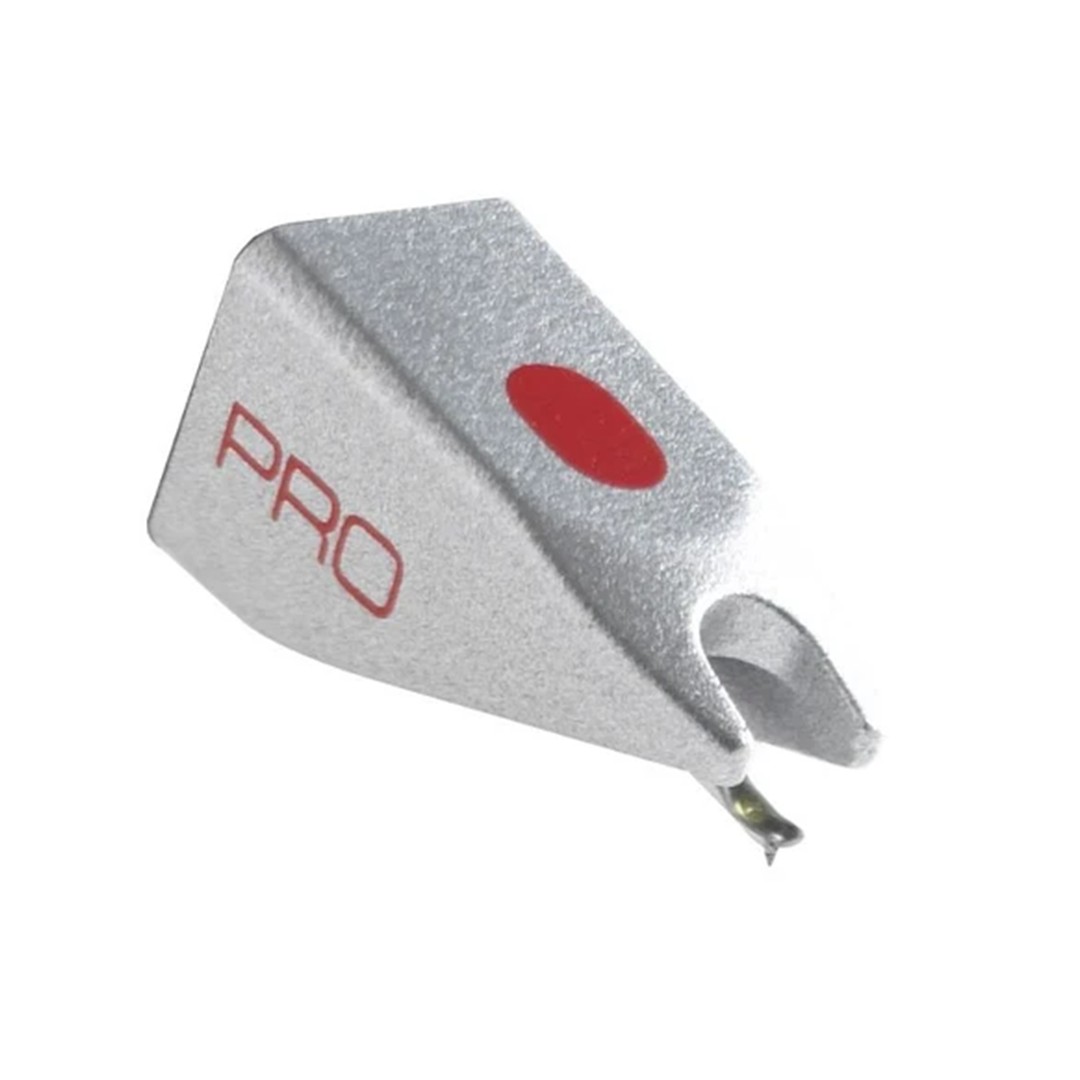

• Product: Ortofon STYLUS PRO
• Application: Pro cartridge

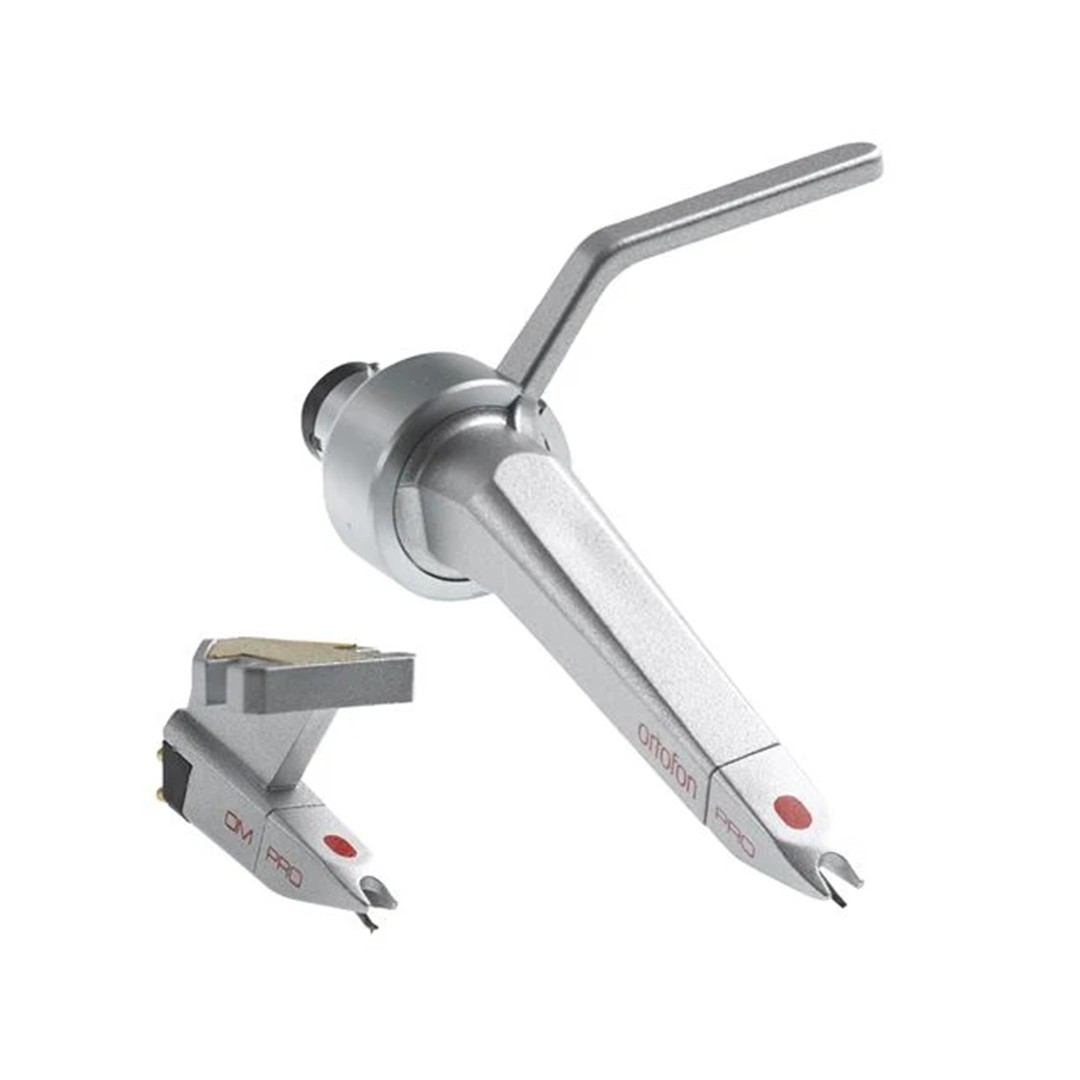

• Compatible system: Concorde MkI PRO and PRO cartridge
• Channel balance at 1 kHz: 1.5 dB
• Output voltage at 1 kHz, 5 cm/sec: 5 mV
• Channel separation at 1 kHz: 20 dB
• Frequency response: 20 Hz – 20 kHz, +3/-2 dB
• Tracking ability at 315 Hz: 70 μm
• Compliance, dynamic, lateral: 7 μm/mN
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Tracking force range: 3.0–5.0 g (30–50 mN)
• Recommended tracking force: 4.0 g (40 mN)
• Tracking angle: 20°
• Recommended load resistance: 47 kOhm
• Internal inductance: 450 mH
• Recommended load capacitance: 200–600 pF
