Spherical Diamond Stylus: The spherical diamond stylus provides reliable groove contact while helping minimise scratching during DJ use.

Solid Cantilever Construction: The solid cantilever withstands hectic activity at the turntable, supporting dependable performance during regular DJ sessions.

Versatile DJ Performance: The Pro S design suits virtually any DJ application, making the replacement stylus a practical all-round solution.

Reliable Tracking Ability: With 70 μm tracking ability at 315 Hz, the stylus provides consistent tracking across demanding turntable applications.

5 mV Output: The STYLUS PRO S delivers a 5 mV output at 1 kHz and 5 cm/sec for dependable signal performance.

Wide Frequency Response: Its 20 Hz to 20 kHz frequency response supports detailed audio reproduction across a broad audible frequency range.

Practical Tracking Force: The stylus supports 3.0–5.0 g tracking force, with 4.0 g recommended for consistent and reliable operation.

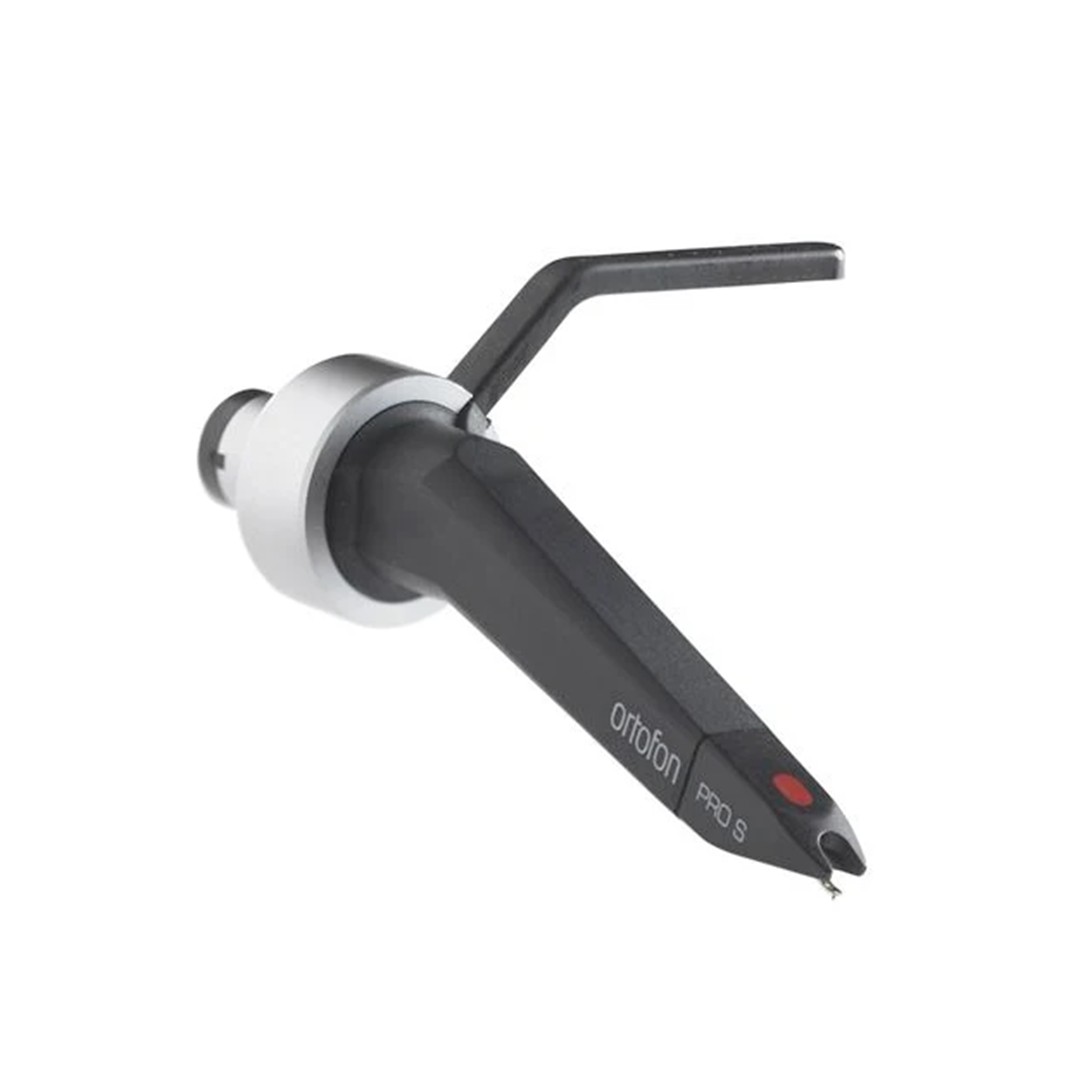

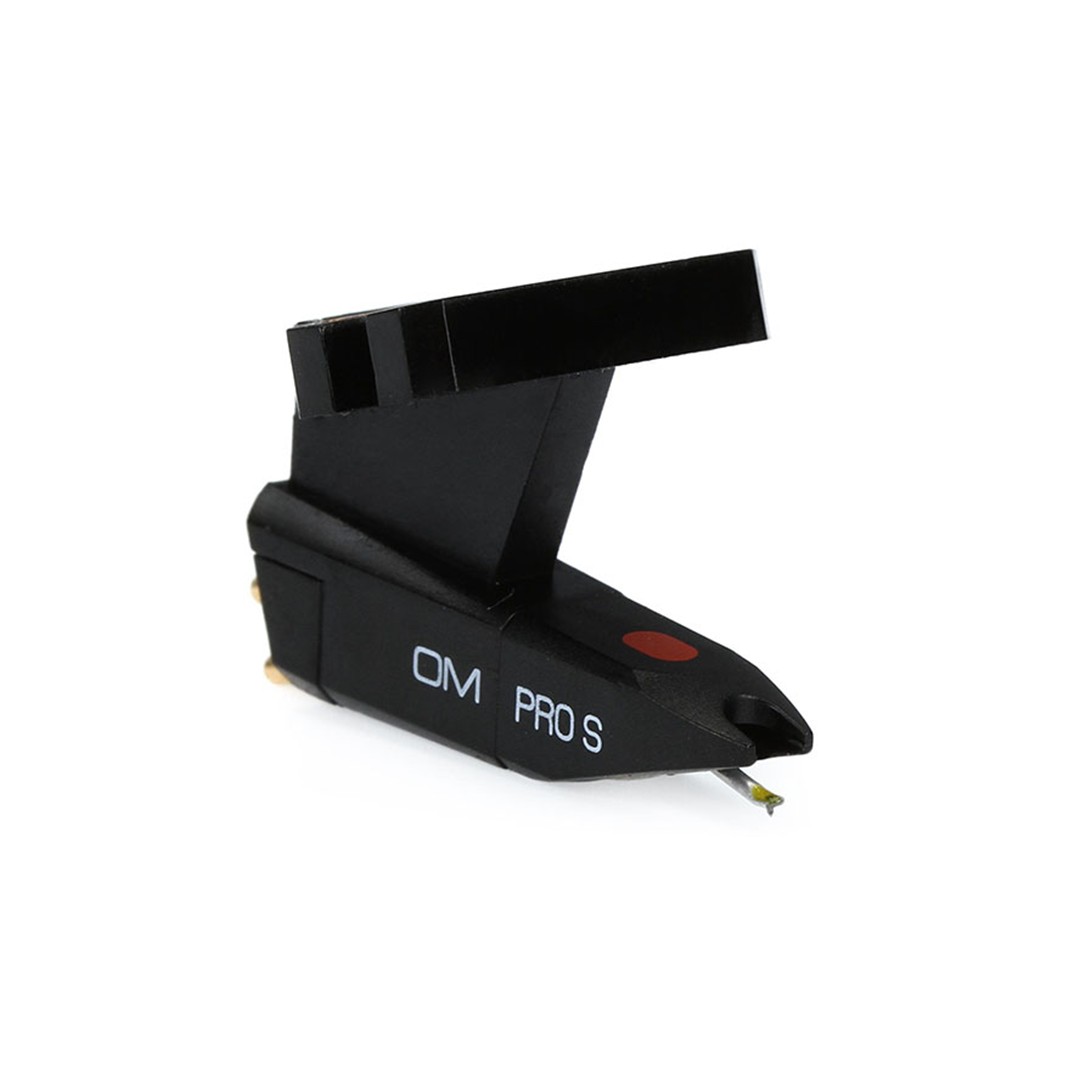

Dedicated Pro S Replacement: The STYLUS PRO S provides a dedicated replacement option for compatible Pro S cartridge systems, including Concorde and OM configurations.

Specifications

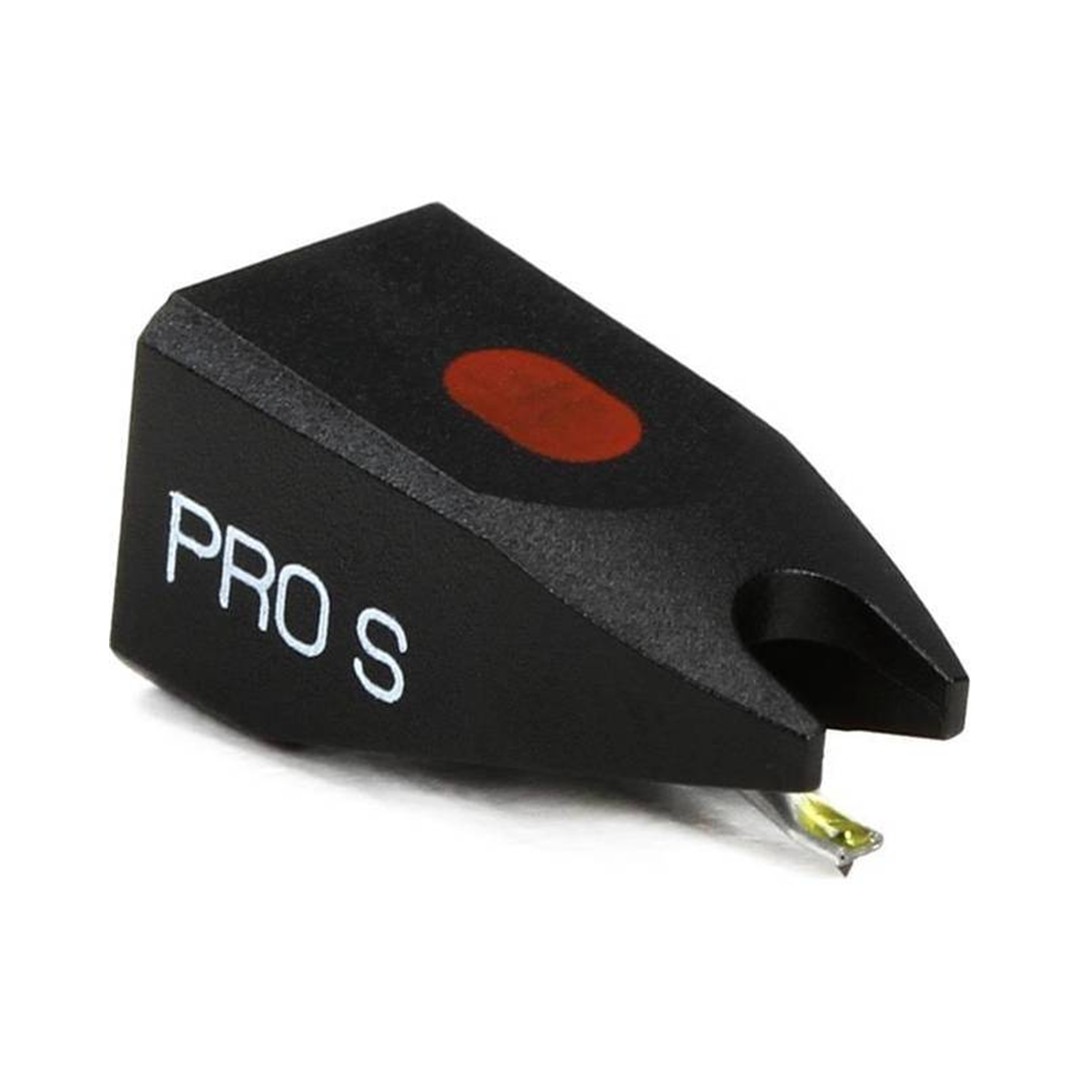

• Product: Ortofon STYLUS PRO S
• Compatible cartridge: Concorde MKI & OM Pro S
• Replacement stylus: Pro S
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Channel balance at 1 kHz: 2 dB
• Output voltage at 1 kHz, 5 cm/sec: 5 mV
• Channel separation at 1 kHz: 20 dB
• Frequency response: 20 Hz – 20 kHz, +/- 2 dB
• Tracking ability at 315 Hz: 70 μm
• Compliance, dynamic, lateral: 7 μm/mN
• Tracking force range: 3.0–5.0 g (30–50 mN)
• Recommended tracking force: 4.0 g (40 mN)
• Tracking angle: 20°
• Internal impedance/DC resistance: 750 Ohm
• Cartridge weight: 18.5 g / 5.0 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 450 mH
• Recommended load capacitance: 200–600 pF
