Designed for Scratching: The STYLUS SCRATCH is specifically designed for scratching and back-cueing, providing the tracking performance needed for demanding DJ techniques.

Reinforced Rubber Suspension: The reinforced suspension supports reliable performance when DJs apply higher tracking forces during intensive scratch and back-cueing sessions.

High Tracking Ability: With 80 μm tracking ability at 315 Hz, the Scratch provides dependable groove handling during demanding turntable performance.

Spherical Stylus Profile: The R 18 μm spherical stylus maintains reliable groove contact and suits the movements associated with scratching and back-cueing.

High 7 mV Output: The stylus delivers 7 mV output at 1 kHz and 5 cm/sec, providing strong signal output for DJ applications.

Energetic Sound Reproduction: The Scratch produces solid bass reproduction and extended highs, creating an energetic sound suitable for a wide range of music styles.

Durable Performance: The reinforced construction helps protect stylus performance and longevity when DJs work with higher tracking forces.

Flexible Tracking Force: The stylus supports 3.0–5.0 g tracking force, with 4.0 g recommended for reliable tracking and consistent performance.

Concorde Scratch Compatibility: The STYLUS SCRATCH is designed as the replacement stylus for the Concorde Scratch MkII cartridge. Ortofon lists the replacement stylus unit as Scratch.

Specifications:

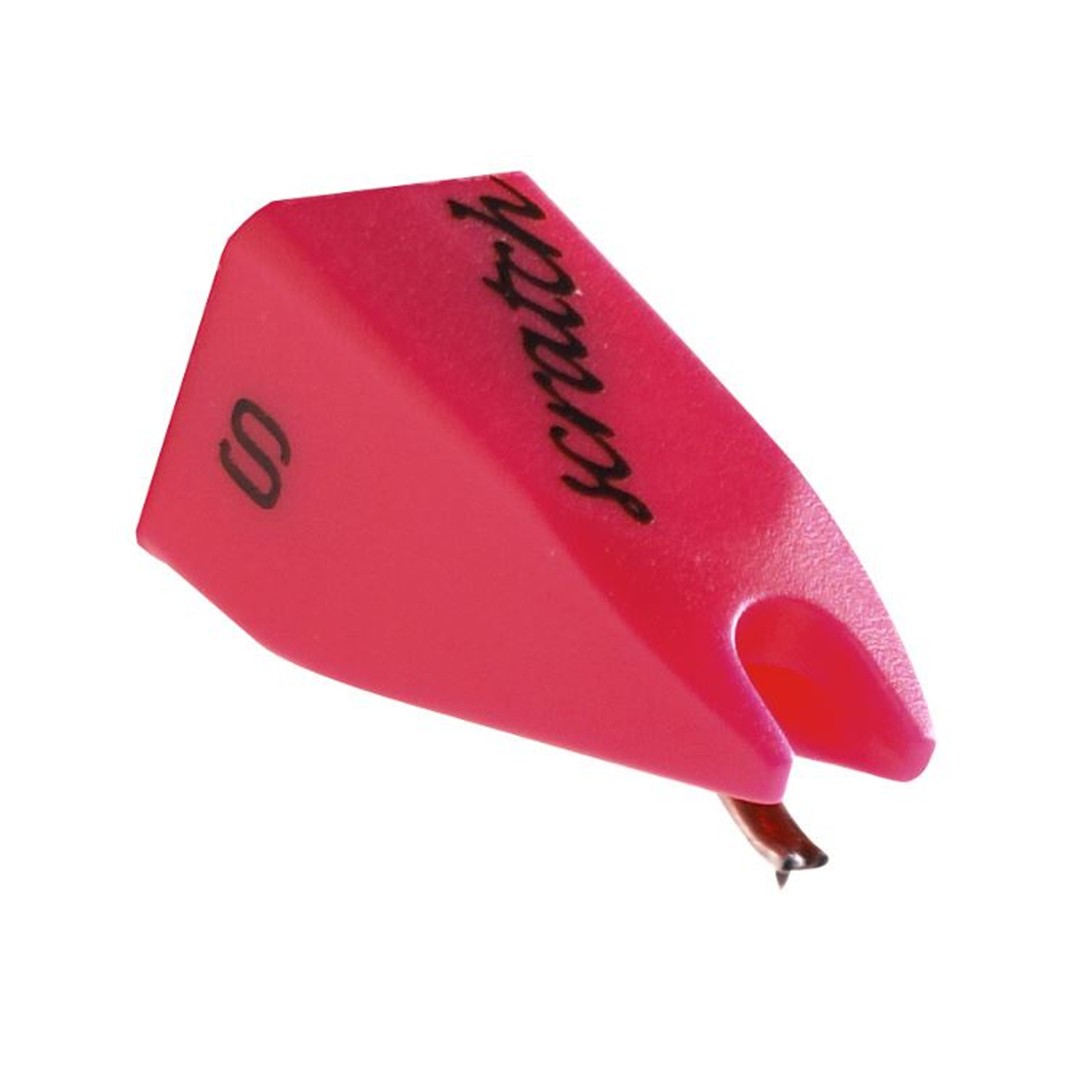

• Product: Ortofon STYLUS SCRATCH

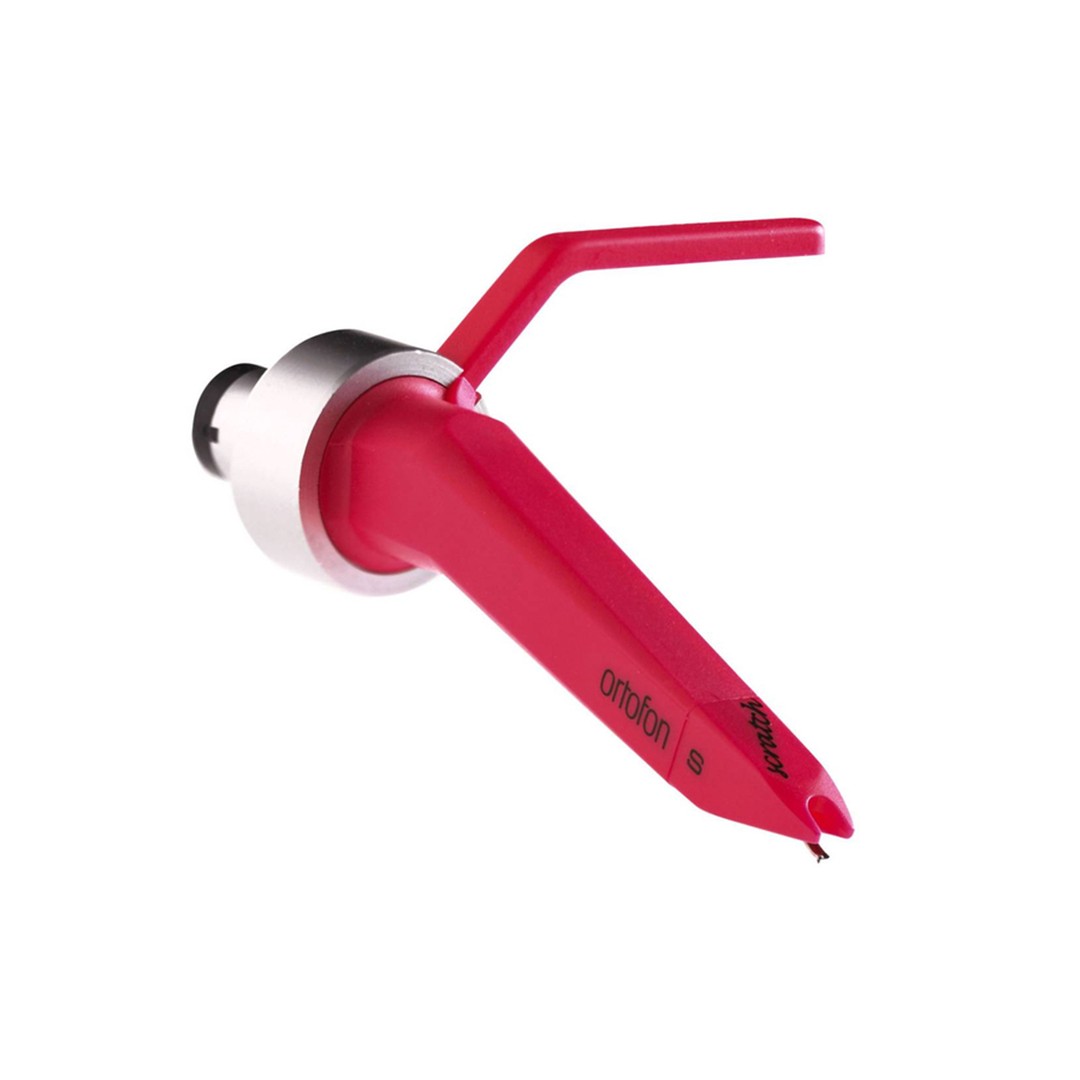

• Compatible cartridge: Concorde Scratch MkII
• Channel balance at 1 kHz: 1.5 dB
• Output voltage at 1 kHz, 5 cm/sec: 7 mV
• Channel separation at 1 kHz: 25 dB
• Frequency response: 20 Hz – 20 kHz, 3 dB/-2 dB
• Tracking ability at 315 Hz: 80 μm
• Compliance, dynamic, lateral: 6 μm/mN
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Tracking force range: 3.0–5.0 g (30–50 mN)
• Recommended tracking force: 4.0 g (40 mN)
• Tracking angle: 20°
• Internal impedance/DC resistance: 750 Ohm
• Cartridge weight: 18.5 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 450 mH
• Recommended load capacitance: 200–600 pF
