Third-Generation Amplifier Architecture: The Powersoft UNICA 8M 8K8 utilizes Powersoft’s proprietary third-generation amplifier platform. This advanced architecture delivers exceptional audio performance while maintaining outstanding efficiency. Furthermore, it achieves an impressive signal-to-noise ratio, ensuring pristine sound reproduction across every installation. As a result, users experience greater clarity, accuracy, and consistency regardless of application size.

High-Power 8000W Performance: The UNICA 8M 8K8 delivers a total rated power output of 8000W across eight channels. Each channel provides up to 1000W, offering substantial headroom for demanding loudspeaker systems. Additionally, bridgeable channel pairs enable up to 2000W per bridged pair, giving system designers greater flexibility when powering larger speakers or subwoofers.

Flexible Hi-Z and Lo-Z Operation: Designed for maximum installation versatility, the amplifier supports both high-impedance and low-impedance loudspeaker systems. This flexibility allows installers to deploy the amplifier across a wide range of applications. Consequently, users can support distributed audio systems, performance venues, corporate environments, and hospitality installations with a single amplifier platform.

Advanced DSP Processing: The integrated DSP engine provides powerful tools for system optimization. Engineers can apply parametric IIR filters, custom FIR filters, shelving EQs, all-pass filters, and advanced crossover configurations. Furthermore, the DSP enables precise loudspeaker tuning, helping achieve optimal system performance and improved audio consistency throughout the venue.

Comprehensive Crossover Control: The amplifier includes multiple crossover options, including Butterworth, Linkwitz-Riley, Bessel, and linear-phase FIR filters. Users can select slopes ranging from 6 dB/octave to 48 dB/octave. Therefore, loudspeaker systems can be configured with exceptional precision for superior frequency management and system integration.

TruePower™ and Advanced Limiting Technologies: Powersoft incorporates multiple protection systems to maximize performance and reliability. These include RMS voltage limiting, RMS current limiting, peak limiting, Dynamic EQ, and TruePower™ technology. As a result, loudspeakers receive optimal power delivery while remaining protected from damaging operating conditions.

Active DampingControl™: Active DampingControl™ enhances loudspeaker performance by actively managing amplifier output characteristics. Consequently, bass response becomes tighter and more controlled. This technology improves transient response and increases overall system accuracy, particularly in demanding low-frequency applications.

Loudspeaker Diagnostic Tools: The UNICA platform includes sophisticated loudspeaker monitoring capabilities. Features such as pilot tone monitoring, average impedance monitoring, and load impedance measurement help identify potential issues before they become critical. Therefore, technicians can proactively maintain system health and minimize downtime.

Dante™ and AES67 Audio Networking: The amplifier supports Dante™ and AES67 digital audio transport, allowing seamless integration into modern networked audio environments. With eight Dante/AES67 input channels and three Gigabit Ethernet ports, audio routing becomes simpler and more scalable. Furthermore, networked audio reduces infrastructure complexity while improving system flexibility.

Extensive Networking Capabilities: Three Gigabit Ethernet ports support switched and split-redundant network modes. This configuration enhances network reliability and redundancy. As a result, mission-critical installations benefit from increased operational security and uninterrupted audio performance.

Third-Party System Integration: UNICA simplifies integration with industry-leading control platforms. Native compatibility with Q-SYS™, Symetrix™, and Crestron enables centralized system control and monitoring. Consequently, integrators can create streamlined workflows and unified system management solutions.

ArmoníaPlus™ and Powersoft Cloud Management: Users gain complete remote control through ArmoníaPlus™ software and Powersoft Cloud connectivity. These platforms provide real-time monitoring, system diagnostics, amplifier configuration, and firmware management. Therefore, technicians can manage installations efficiently from virtually anywhere.

Energy-Efficient Operation: The redesigned output stage and power supply significantly reduce energy consumption. Less energy converts into wasted heat, which improves overall efficiency. Additionally, lower operating costs make the amplifier an attractive choice for large-scale and long-term installations.

Advanced Thermal Management: A completely redesigned heatsink improves heat dissipation and system cooling. This enhanced thermal design maintains stable operation even under demanding conditions. As a result, the amplifier delivers reliable performance while extending component longevity.

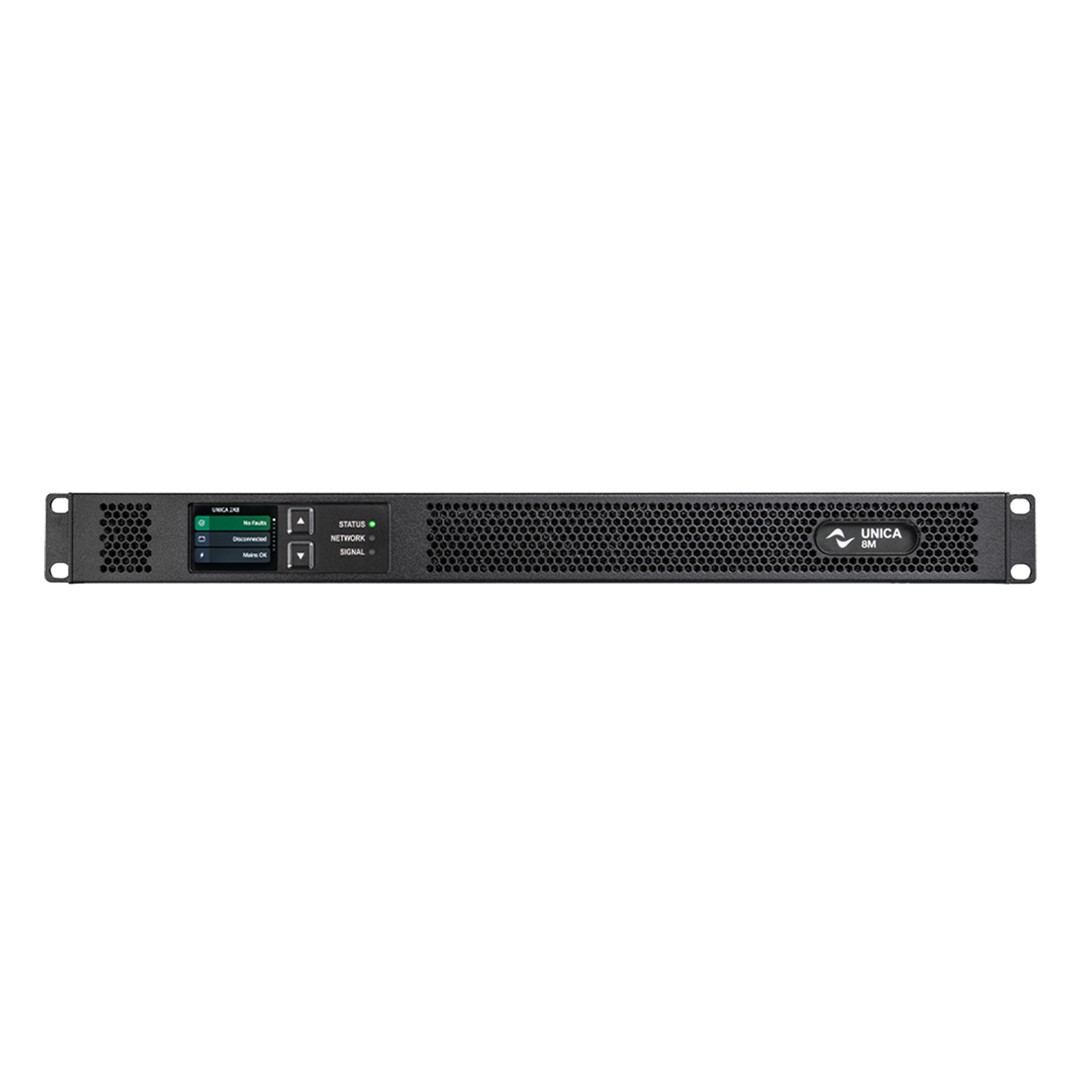

Compact 1RU Installation Design: Despite its powerful performance capabilities, the UNICA 8M 8K8 occupies only a single rack unit. This compact footprint allows installers to maximize rack space without sacrificing power or functionality. Consequently, equipment rooms remain organized and efficient.

Fast Startup and Backup Power Support: The amplifier starts in less than 10 seconds under normal conditions. When powered through PoE backup, startup time decreases to less than 0.5 seconds. Therefore, critical installations can recover quickly after power interruptions and maintain operational continuity.

Snapshot Recall and System Presets: Built-in memory allows users to store and recall up to 50 amplifier snapshots. This feature simplifies system deployment and enables rapid configuration changes. Furthermore, technicians can quickly switch between presets for different venues, events, or operating requirements.

Universal Power Supply: The universal regulated switch-mode power supply supports worldwide operation from 80V to 265V AC. Power Factor Correction (PFC) and Smart Rail Management (SRM) improve efficiency and stability. As a result, the amplifier delivers consistent performance across varying power conditions worldwide.

Designed for Modern Installations: The combination of advanced DSP, high-power output, networked audio, cloud management, and third-party integration makes the UNICA 8M 8K8 a complete installation solution. Whether deployed in auditoriums, stadiums, corporate facilities, hospitality venues, educational institutions, or houses of worship, it delivers reliable performance and exceptional flexibility.

Specifications:

General:

• Model: Powersoft UNICA 8M | 8K8
• Amplifier Type: Installation Amplifier with DSP
• Form Factor: 1RU Rackmount
• Total Rated Power: 8000W
• Dimensions: 489 x 400 x 44.3 mm
• Weight: 7.9 kg
• IP Rating: IP20

Channel Configuration:

• Output Channels: 8
• Output Type: Hi-Z or Lo-Z
• Bridgeable: Per channel pair
• Analog Inputs: 8
• Dante™/AES67 Inputs: 8

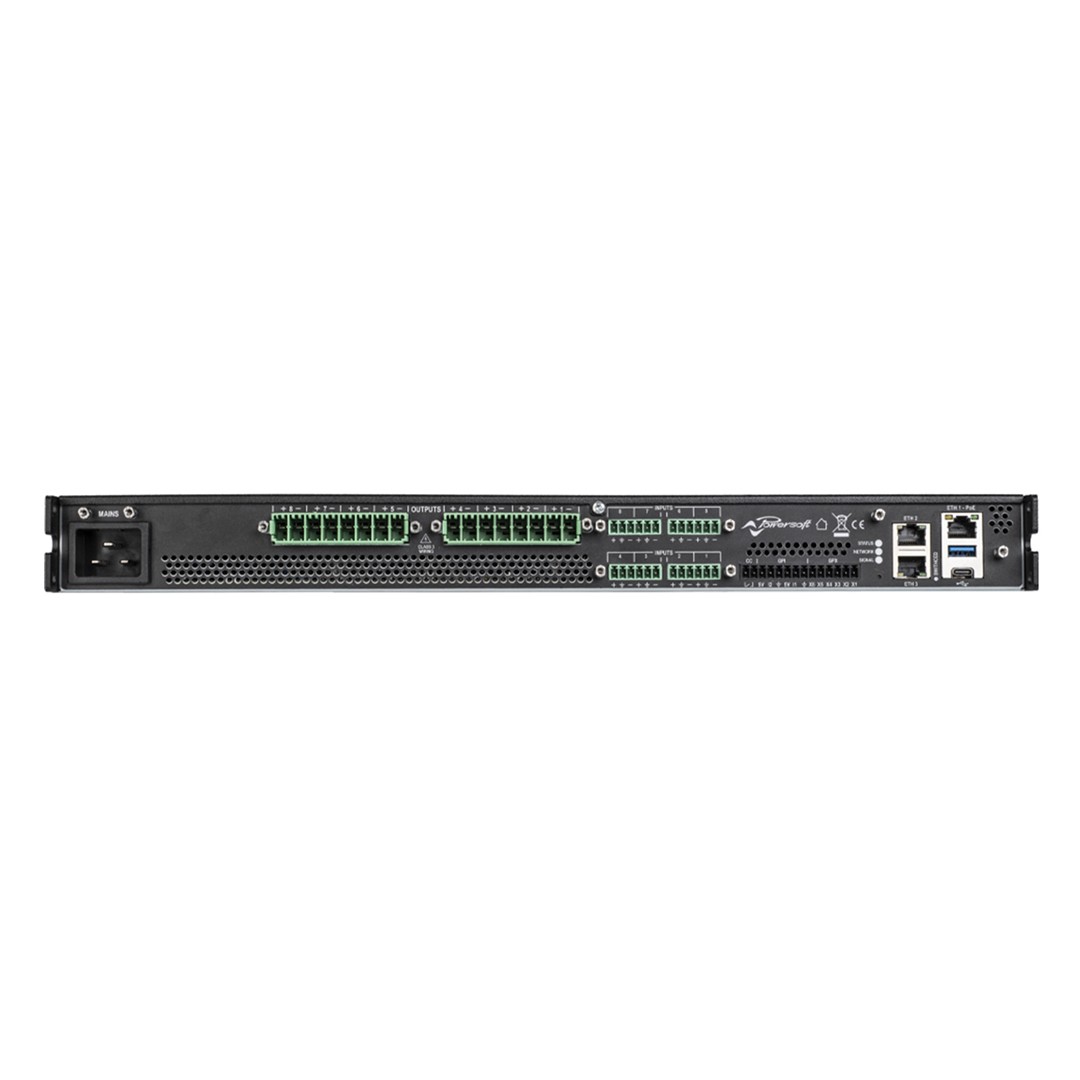

• Network Ports: 3 x RJ45 Gigabit Ethernet

Audio Performance:

• Default Gain: 32 dB
• Input Sensitivity: 2.84 Vrms / 11.3 dBu
• Maximum Input Level: > +24 dBu
• Frequency Response: 20 Hz – 20 kHz (+0.0 dB / -1.0 dB @ 8Ω)
• SNR (Analog): 112 dB(A)
• SNR (Dante/AES67): 116 dB(A)
• THD+N: < 0.05%
• SMPTE IMD: < 0.01%
• Damping Factor: >2500

DSP:

• AD Converters: 24-Bit Tandem™ @ 48 kHz
• DA Converters: 24-Bit Tandem™ @ 48 kHz
• Latency: 2.6 ms
• Snapshot Memory: Up to 50 presets
• Input Delay: Up to 2 s
• Output Delay: Up to 100 ms
• Equalization: FIR and Parametric IIR
• Crossover Types:
  • Linear Phase FIR
  • Butterworth
  • Linkwitz-Riley
  • Bessel
• Limiting:
  • RMS Voltage
  • RMS Current
  • Peak Limiter
  • TruePower™
  • Dynamic EQ

Maximum Output Power (8K8 Model):

• 8 x 1000W @ 70V
• 8 x 1000W @ 8Ω
• 8 x 1000W @ 4Ω
• 8 x 1000W @ 2Ω
• 2 x 2000W Bridged @ 8Ω
• 2 x 2000W Bridged @ 4Ω

Power Supply:

• Universal Regulated Switch Mode with PFC and SRM
• Operating Voltage: 80–265 VAC
• Nominal Voltage: 100–240 VAC, 50/60 Hz
• AC Connector: IEC C20 Inlet
• Eco Mode Consumption: 43W
• Standby Consumption: 20W

Environmental:

• Operating Temperature: 0°C to +50°C
• Humidity Range: 10% to 85% Non-Condensing

Networking & Control:

• Network Modes:
  • Switched Mode
  • Split-Redundant Mode
• Remote Control:
  • ArmoníaPlus™
  • Powersoft Cloud
• Third-Party Integration:
  • Q-SYS™
  • Symetrix™
  • Crestron
