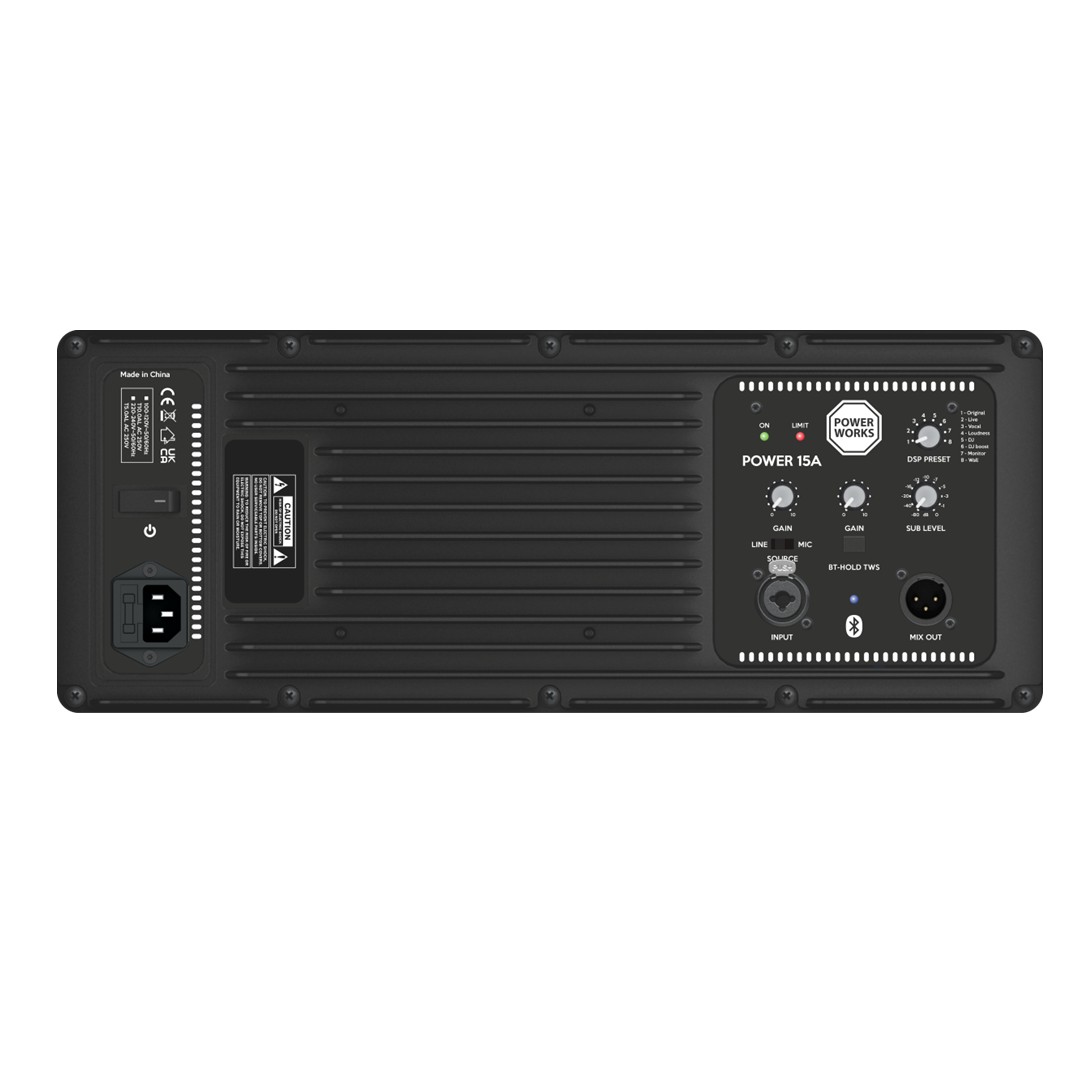

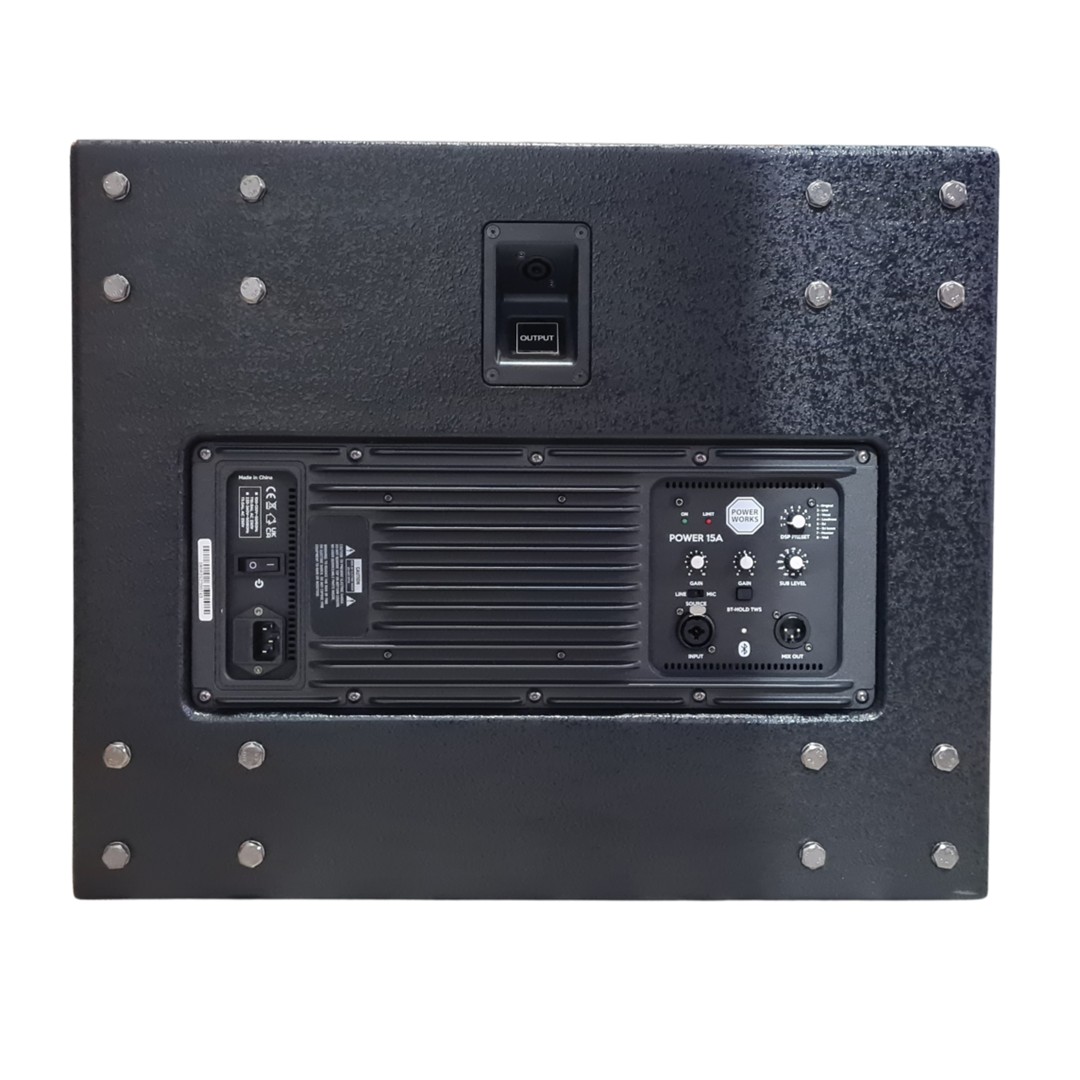

Mic/Line Input Section: This section accepts both balanced and unbalanced signals via XLR or 1/4” jack. Press the Mic/Line switch for microphones. Phantom power is not included, so use dynamic or battery-powered condenser mics.

Master Level Control: Adjusts the overall volume of the Mic/Line inputs. Ensures precise control over signal strength without affecting the Mix Out output.

BT/TWS Connectivity: Pair your smartphone or tablet quickly using the BT/TWS button. The blue LED indicates pairing status, and unpairing is simple with a single press. Supports wireless music streaming.

BT/TWS Level Control: Independently adjusts the volume of Bluetooth and TWS sources. This allows balancing of wireless audio with other input signals for seamless sound.

Subwoofer Level Control: Provides independent adjustment of the low-frequency output. Ensures deep, punchy bass while maintaining clarity for mid and high frequencies.

Mix Out: XLR Mix Out delivers an EQed mix of all inputs and BT sources. It allows daisy-chaining multiple speakers or connecting to mixers without affecting the main master volume.

DSP Presets: Choose from eight presets to match your environment or application. Options include Original, Live, Vocal, Loudness, DJ, DJ-Boost, and Monitor Wall for instant EQ optimization.

Power and Safety: The power switch and IEC socket with fuse ensure safe operation. Always connect to a proper AC outlet and replace fuses only when the unit is off.

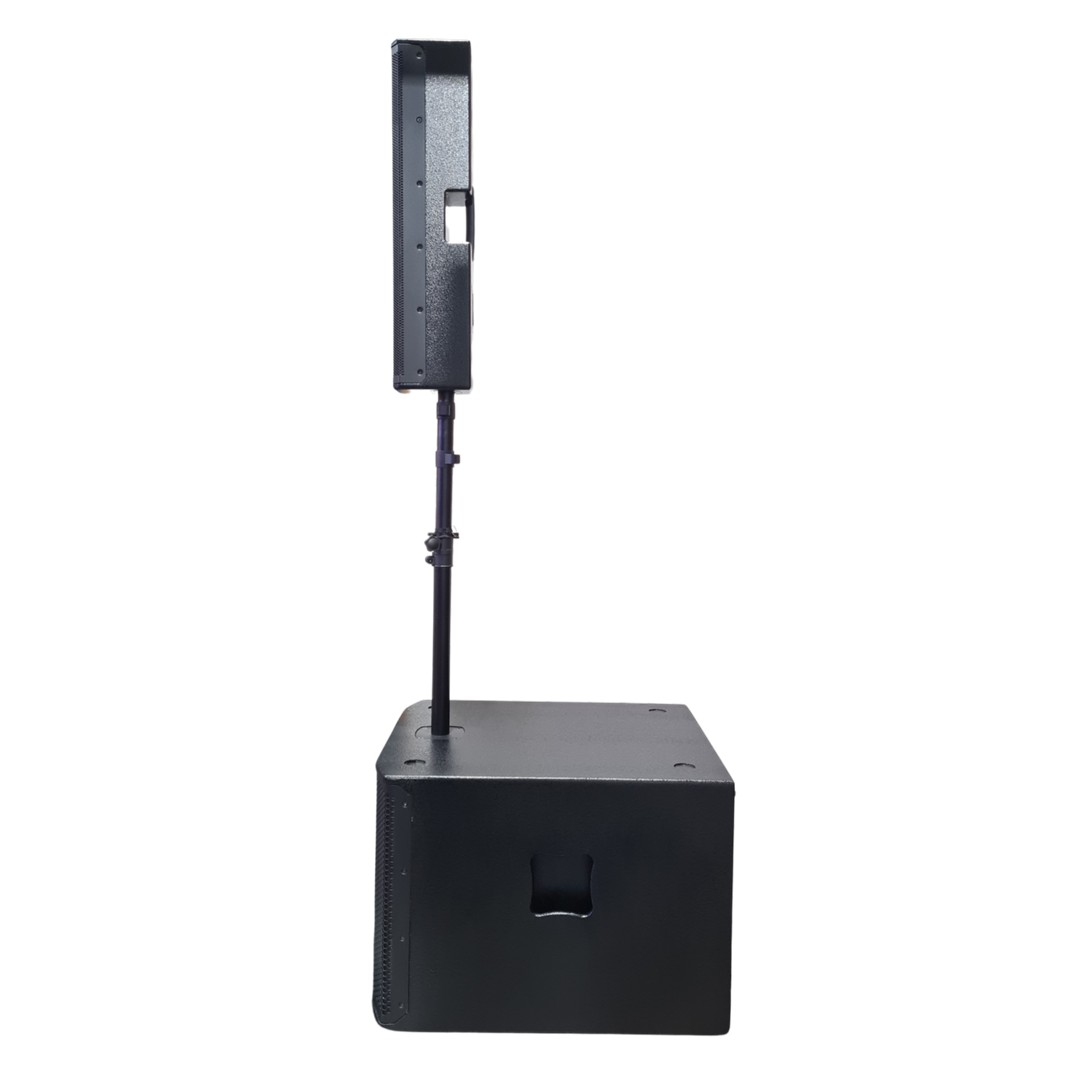

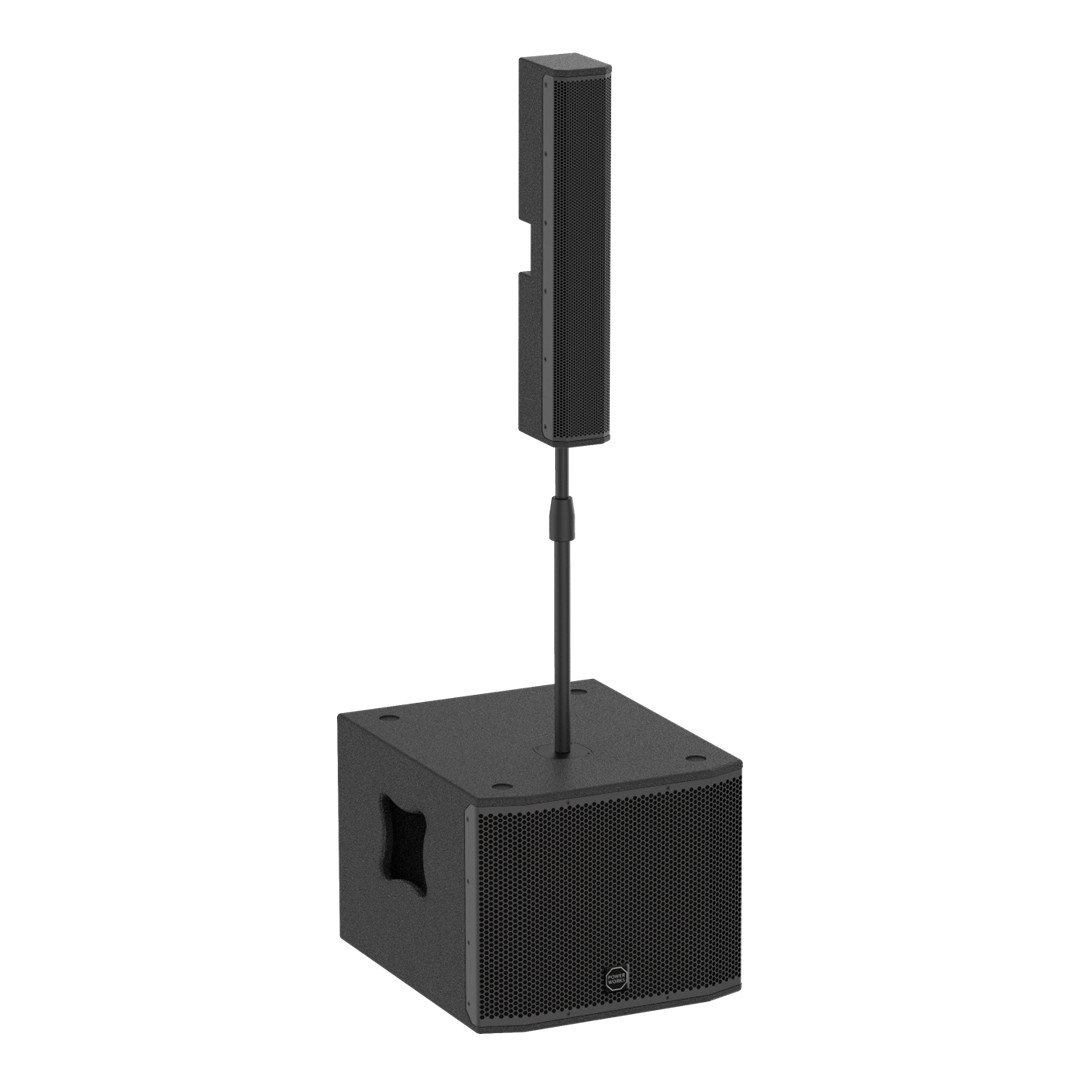

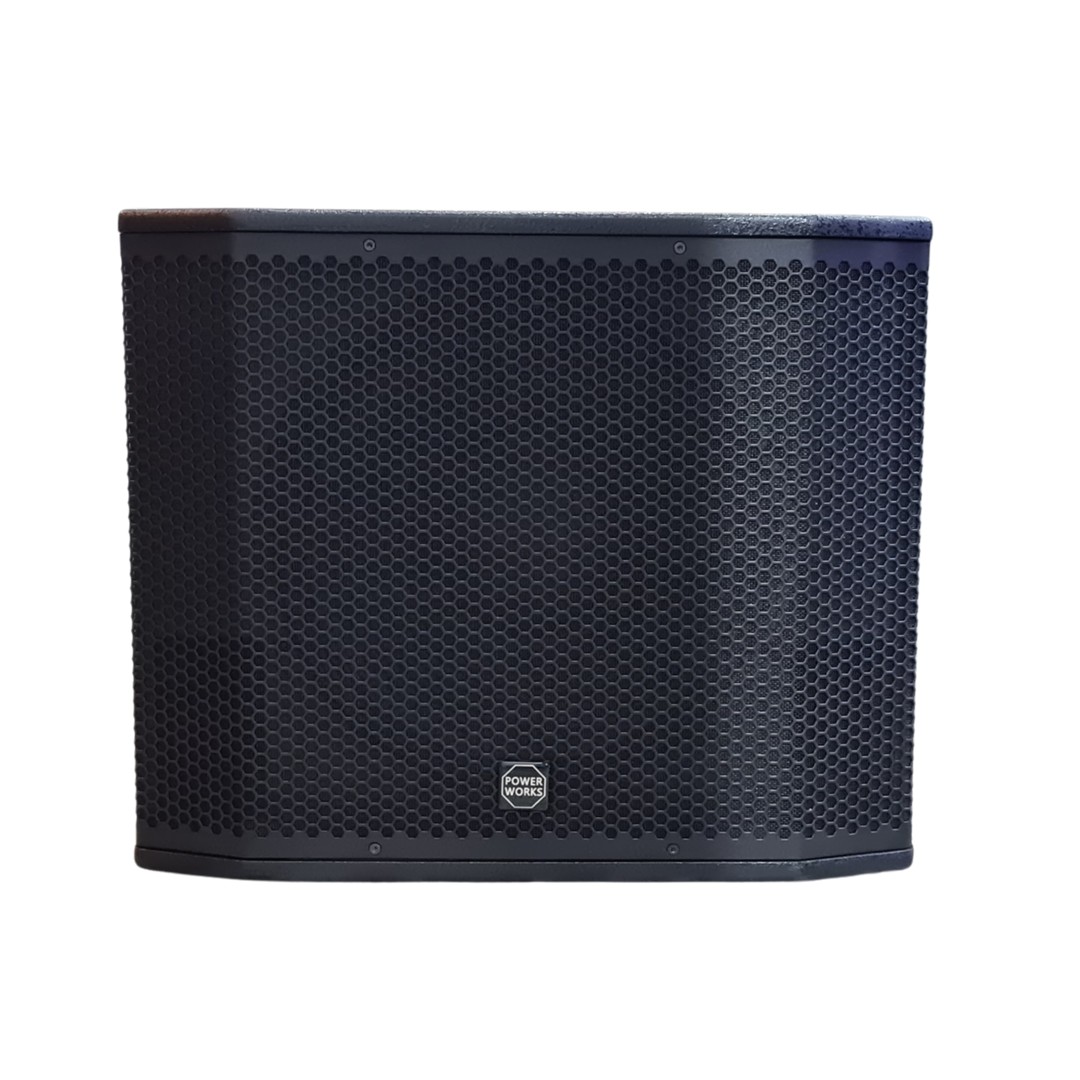

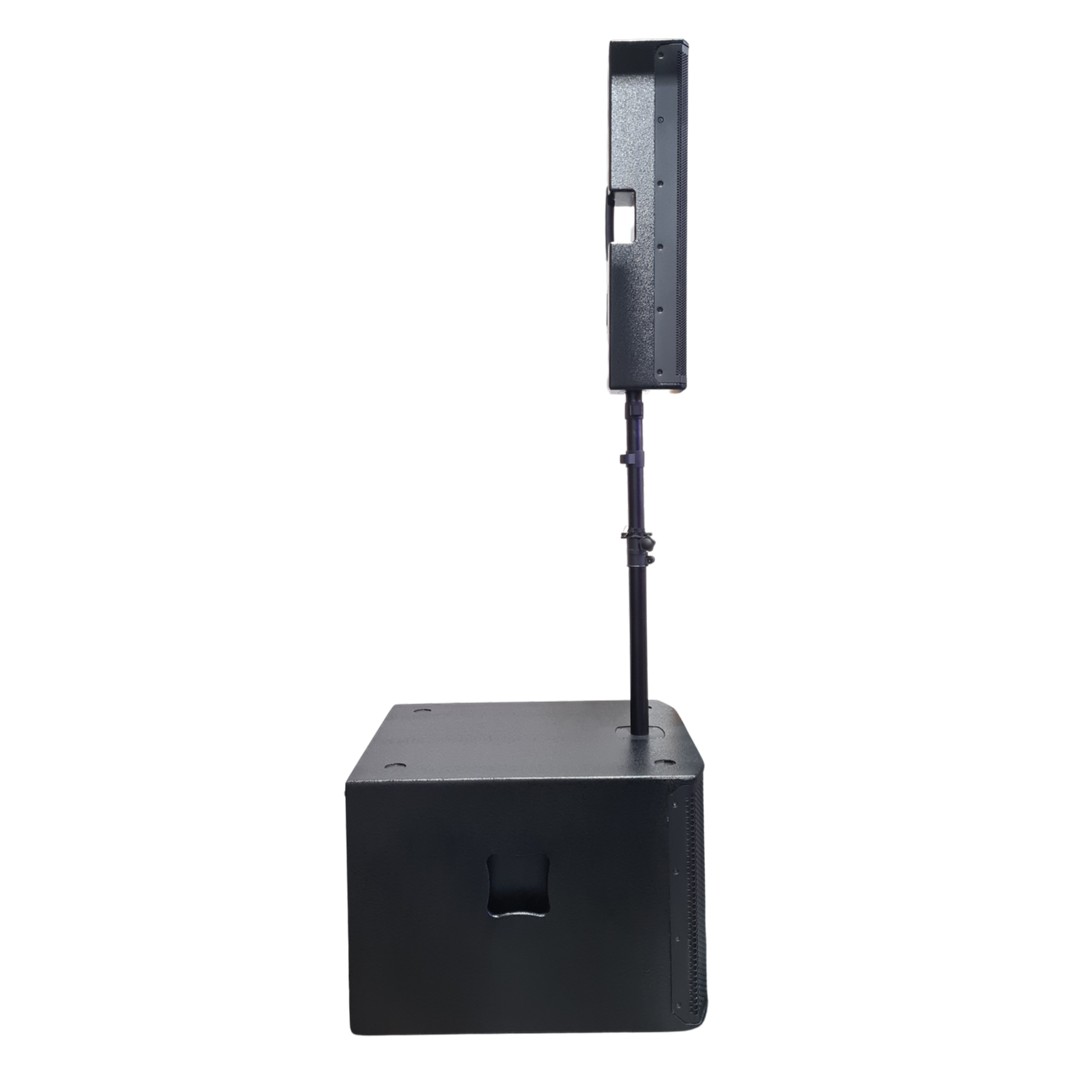

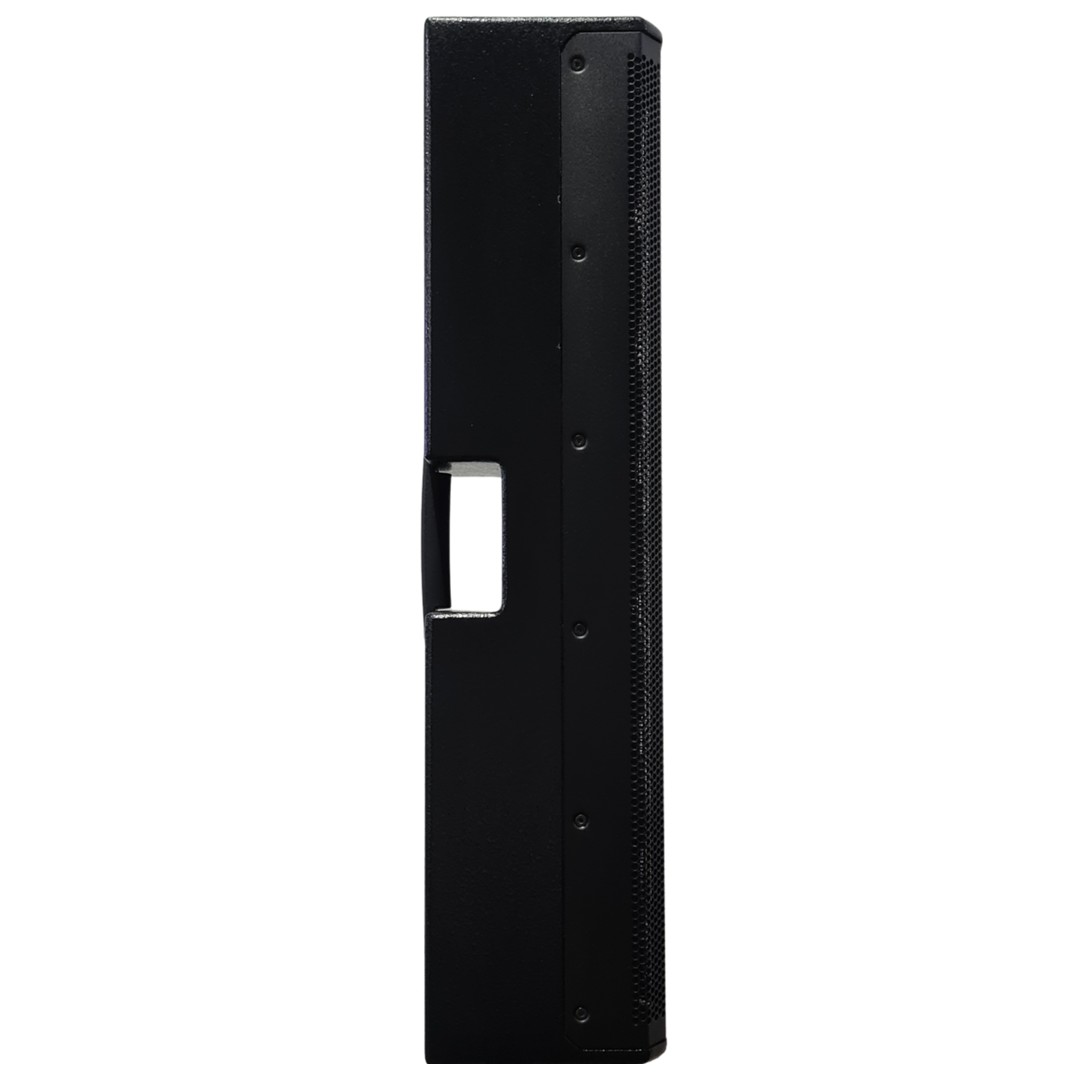

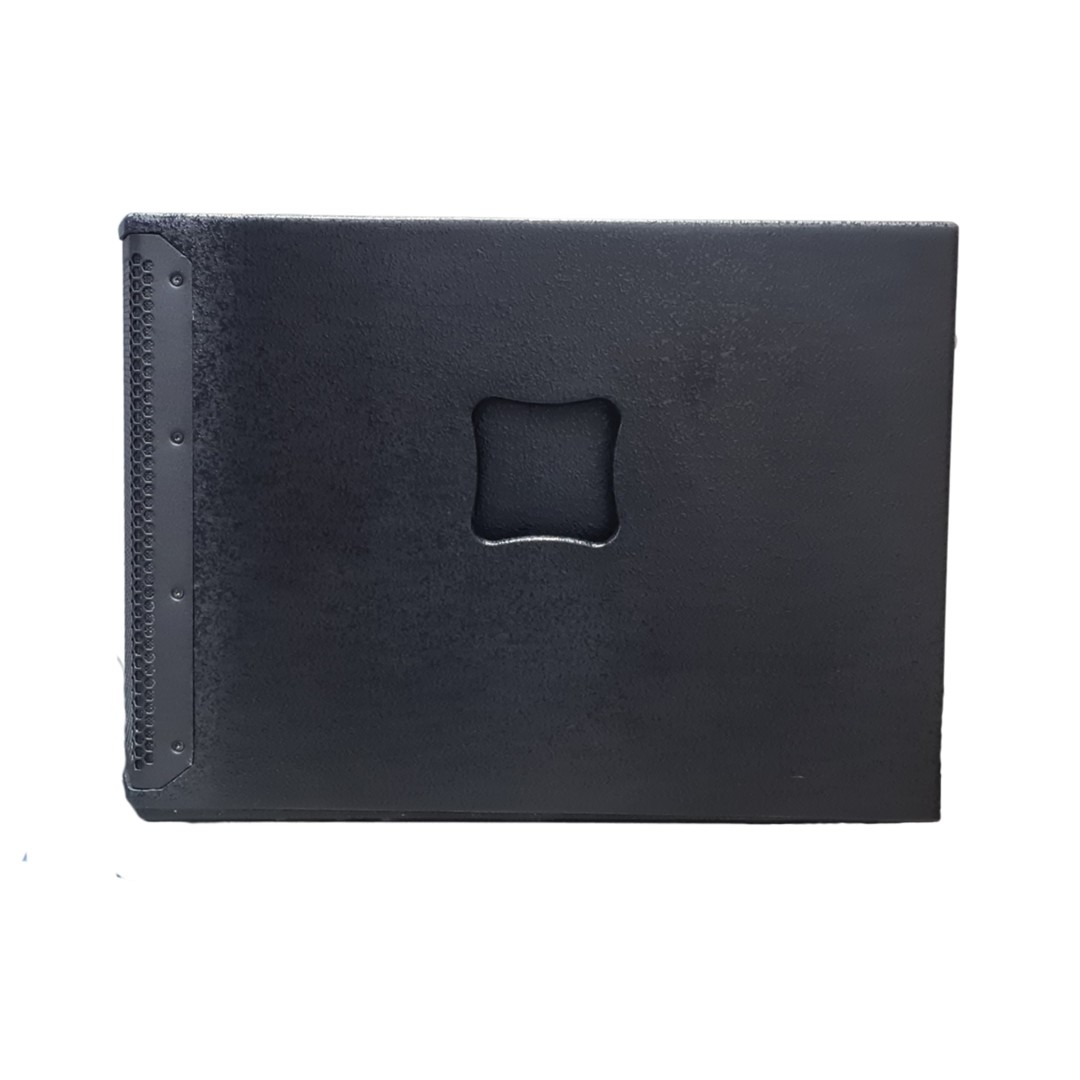

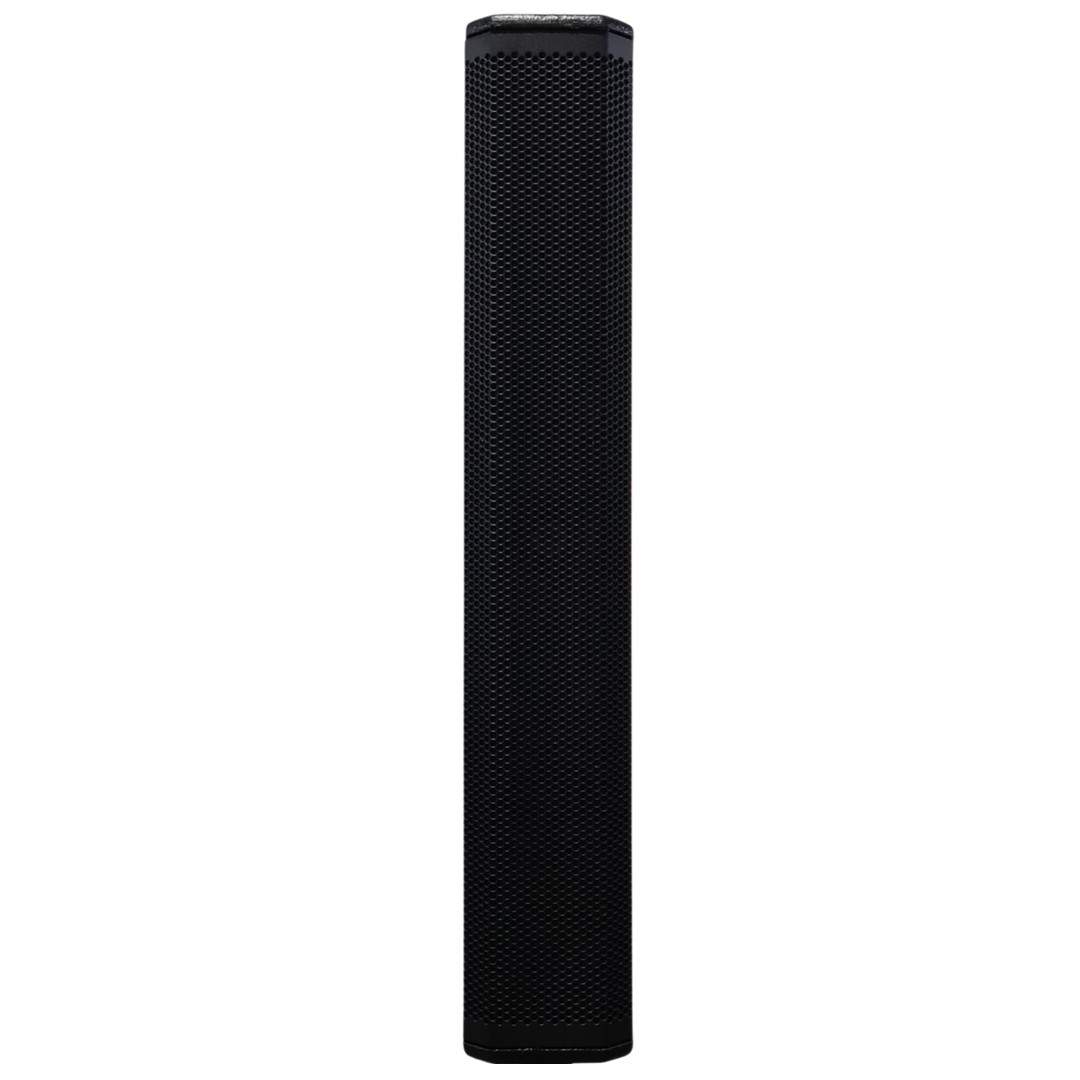

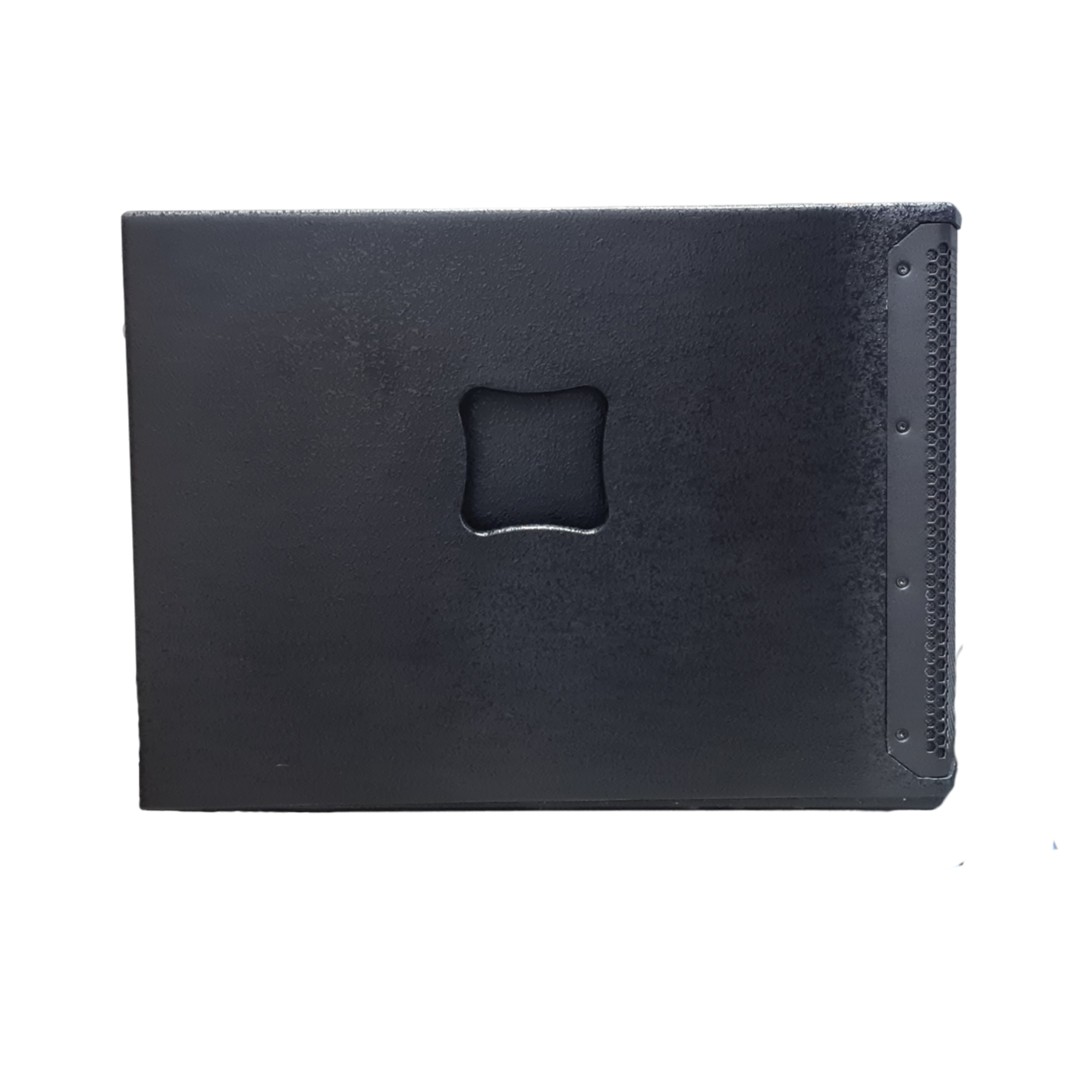

Enclosure and Build: Plywood cabinet with black metal grille, rubber feet, and durable black paint offers stability, protection, and professional aesthetics. Column and subwoofer are compact yet robust.

Specifications:

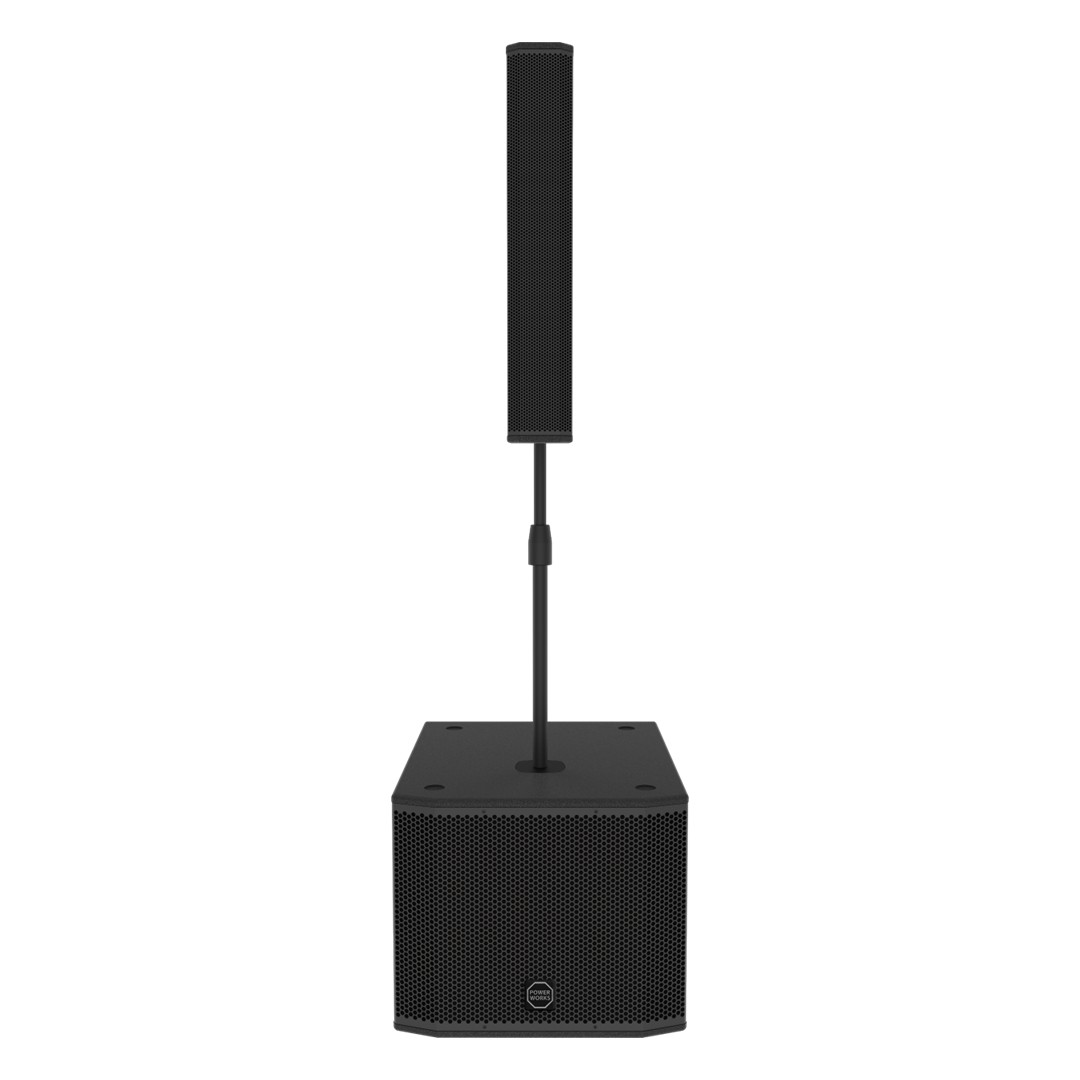

• System Type: High Power Column PA System with Subwoofer

• RMS Power: 1200W

• Peak Power: 2400W

• Max Peak SPL: 130dB

• Frequency Response: 40Hz–20kHz

• High-Frequency: 1” Exit Compression Driver, 1” Voice Coil

• Mid-Frequency: 6 x 3.5” Wideband Speakers, 1” Voice Coil

• Low-Frequency: 15” Woofer, 4” Voice Coil

• Horn Coverage: 100° Horizontal x 50° Vertical

• Amplifier Type: Class D

• DSP Processing: Original/Live/Vocal/Loudness/DJ/DJ-Boost/Monitor Wall

• Connectors Input: XLR/Bluetooth

• Connectors Output: XLR

• Power Supply: AC 110–240V, 50/60Hz

• Enclosure Construction: Plywood cabinet, black metal grille, rubber feet

• Cabinet Material: Wood

• Dimensions: Sub: 470 x 560 x 660 mm, Column: 720 x 120 x 160 mm

• Net Weight: Sub: 34 kg, Column: 5.7 kg
