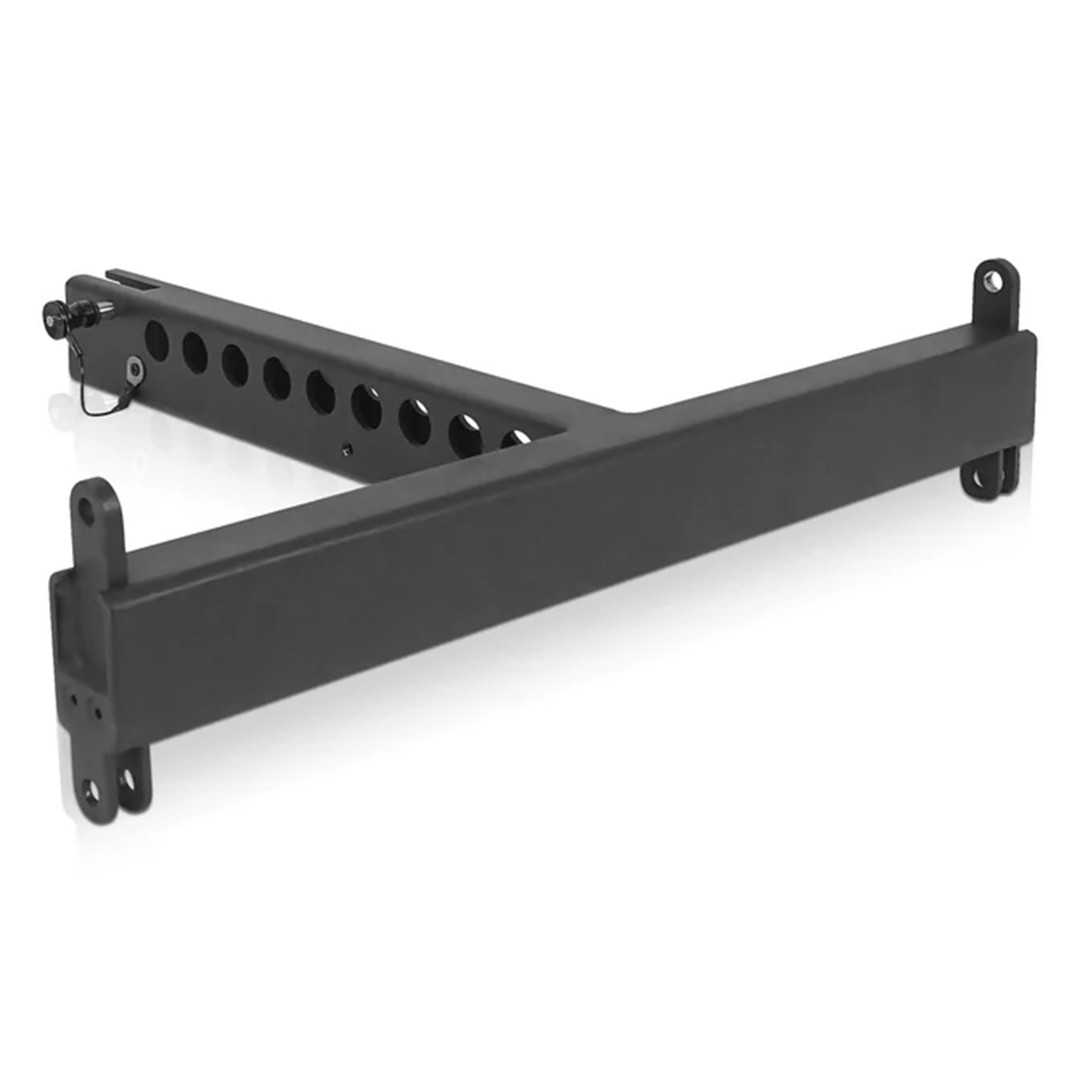

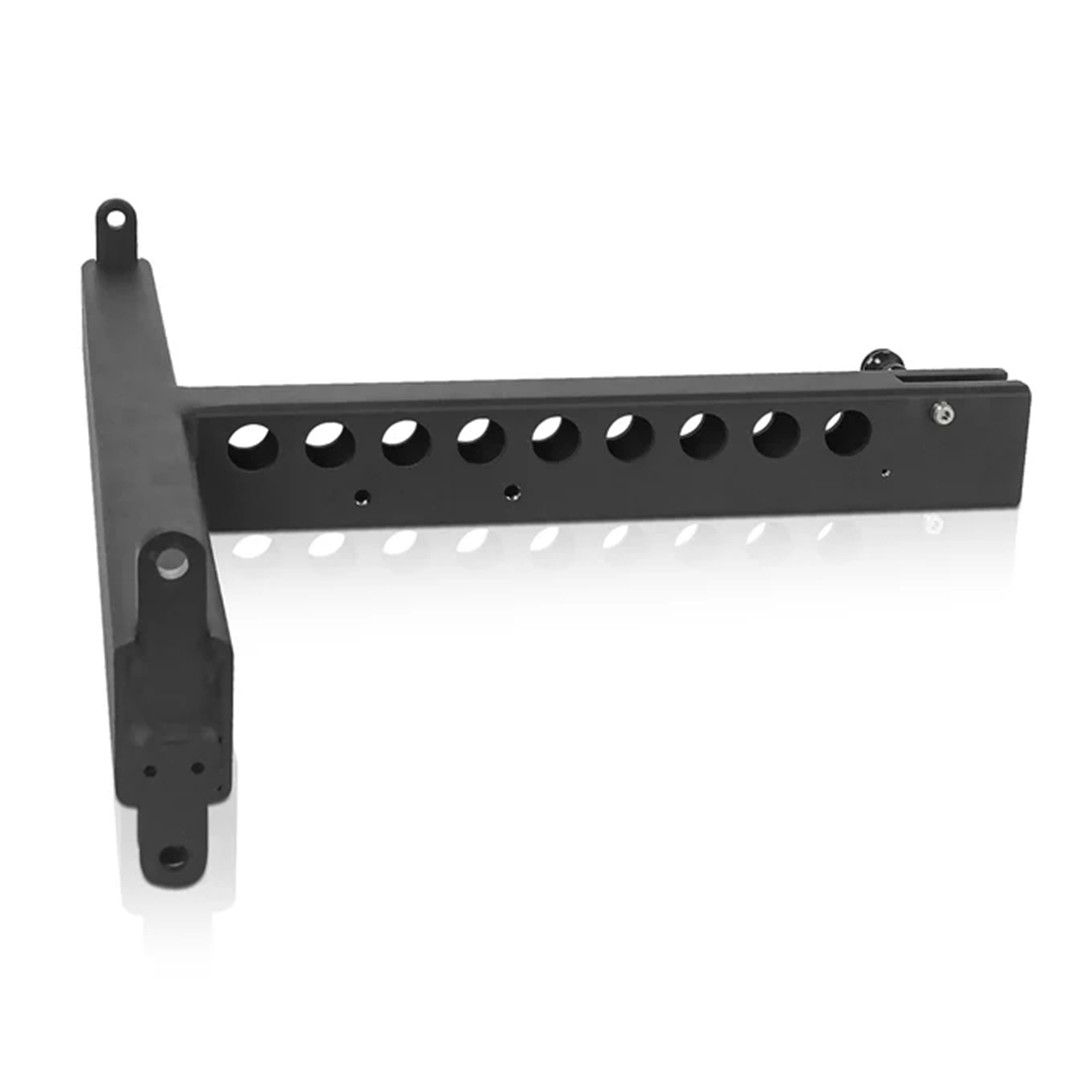

Purpose-Built for ZETHUS-A28PW Line Array Speakers: The ZETHUS-A28FF is specifically engineered to support and suspend Sound Town’s ZETHUS-A28PW line array speakers. Its compatibility ensures a precise fit and optimal rigging performance in both fixed and mobile sound systems.

Heavy-Duty Construction with 1-Ton Load Capacity: Crafted from tour-grade, high-strength materials, the frame is designed to handle up to 1 ton of weight. This makes it ideal for large-scale installations, demanding live events, and rigorous touring environments, offering both strength and reliability under pressure.

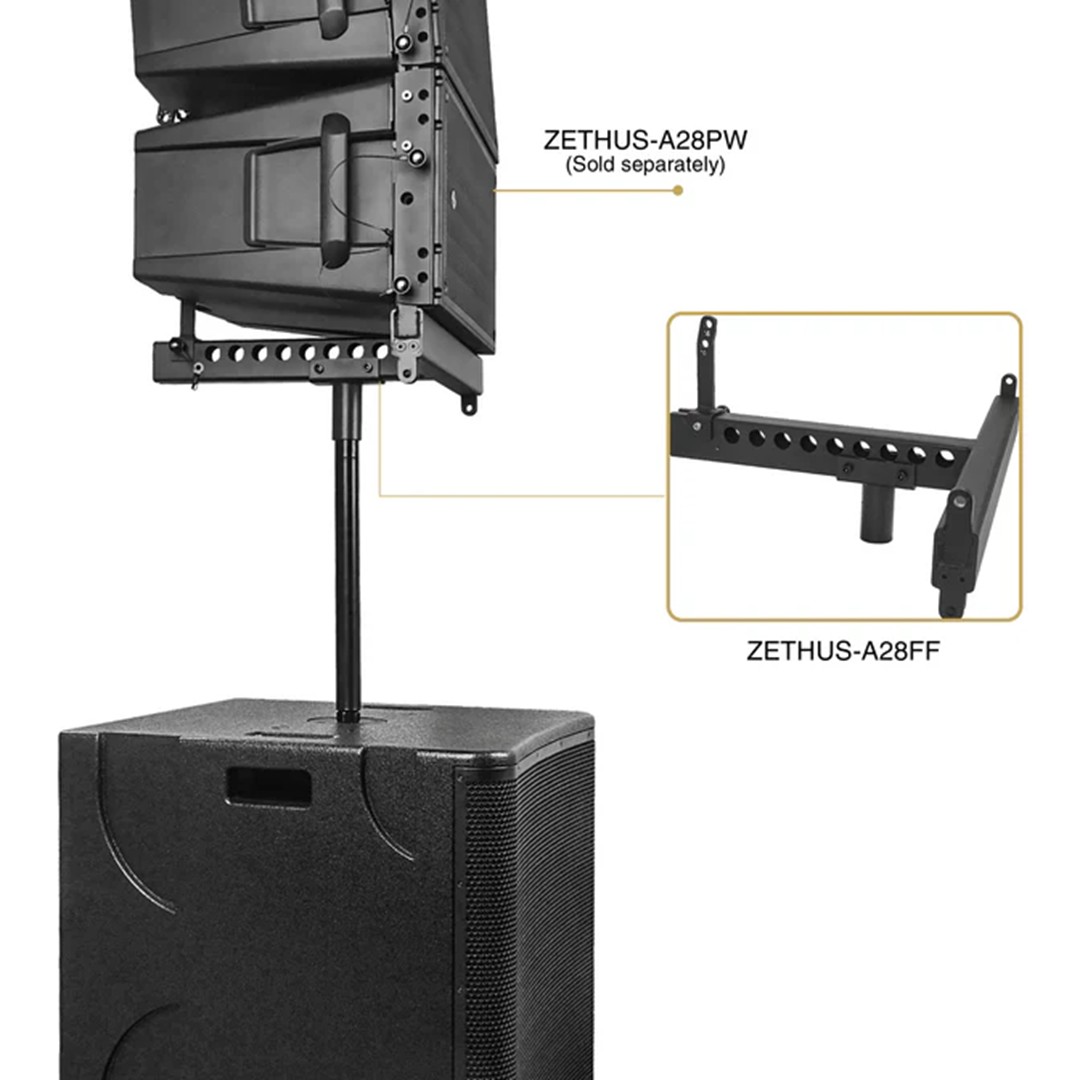

Integrated M20 Thread and Locknut for Versatile Stacking: The base of the frame features an M20 thread and locknut that integrates effortlessly with Sound Town’s STSD-MM1449B mounting brackets (sold separately). This allows users to stack ZETHUS-A28PW line array speakers on top of compatible subwoofers, forming powerful vertical sound arrays with stability.

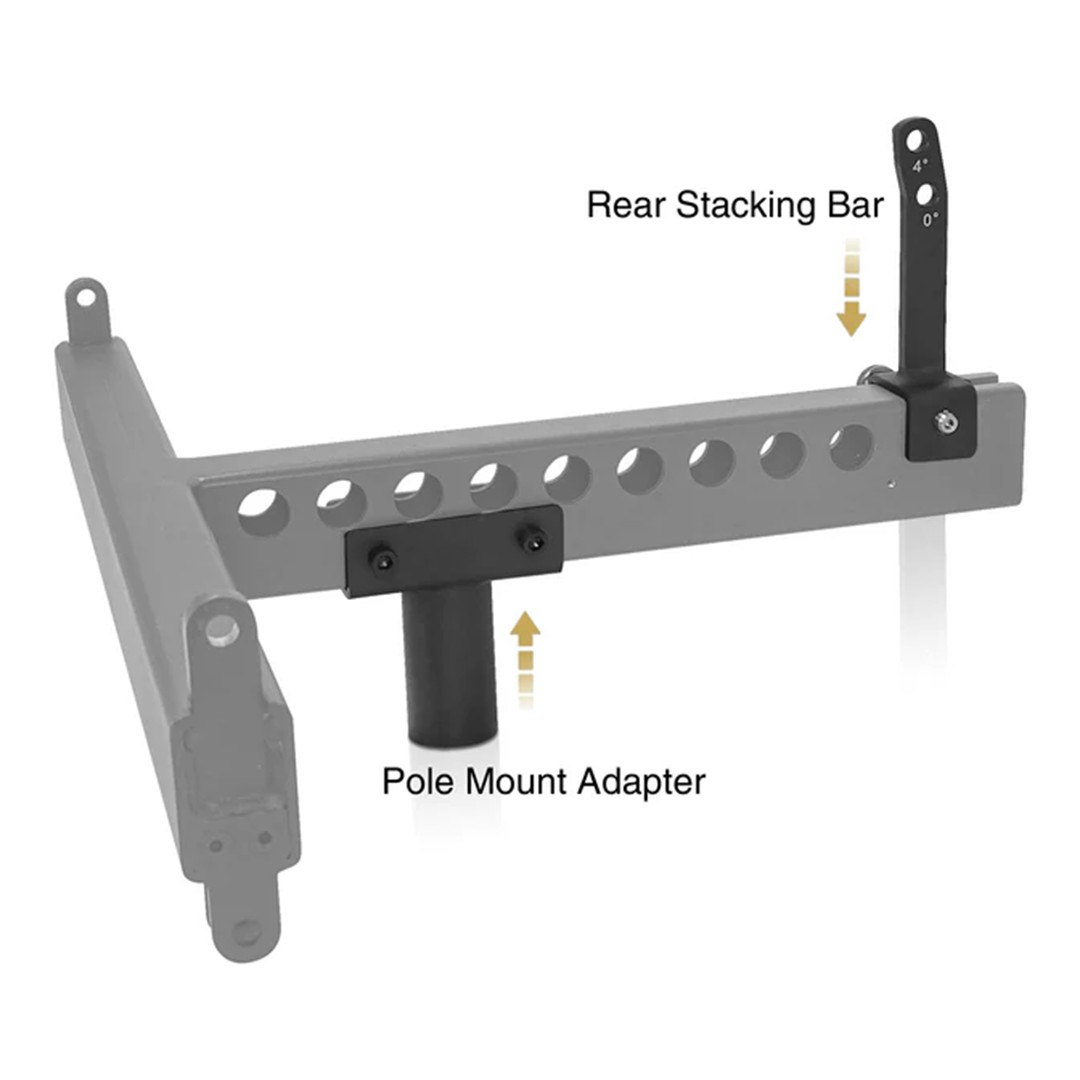

Customizable Splay Angles for Precision Coverage: The rear stacking bar supports splay angle adjustments from 0° to 8°. These variable angles allow fine-tuned sound coverage and directional control, making it easier to match dispersion patterns to different venue layouts and audience areas.

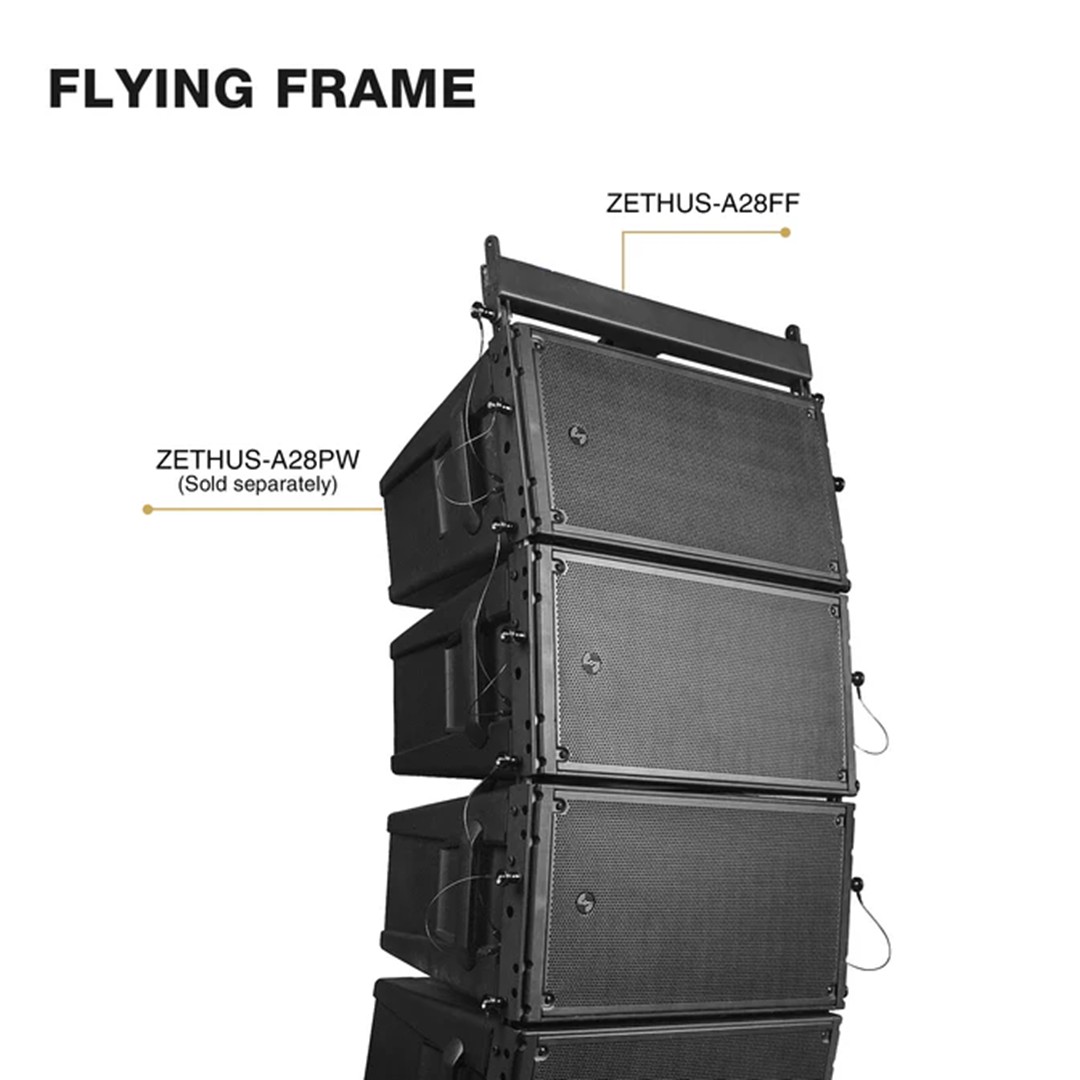

Dual Configuration Support: Suspension and Ground Stack: Whether flown or ground-stacked, the ZETHUS-A28FF provides the flexibility needed to adapt to any event or venue. It’s a versatile solution for mobile setups and permanent installations alike.

Quick and Easy Installation with Marked Points: Installation is simple and fast, thanks to clearly labeled mounting points. This user-friendly design benefits both experienced professionals and first-time users, ensuring secure and efficient rigging with minimal setup time.

Specifications:

• Model: ZETHUS-A28FF

• Product Type: Suspension flying frame

• Compatible Speakers: Sound Town ZETHUS-A28PW line array speakers

• Compatible Mount: STSD-MM1449B mounting bracket (sold separately)

• Maximum Load Capacity: Up to 1 ton (2,000 lbs / 907 kg)

• Material: High-strength, tour-grade steel construction

• Mounting Thread: M20 thread with locknut

• Splay Angle Range: Adjustable from 0° to 8°

• Configuration Options: Supports both suspended (flown) and ground-stacked setups

• Rigging Support: Rear stacking bar included for precise angle adjustment

• Installation: Clearly marked installation points for easy setup

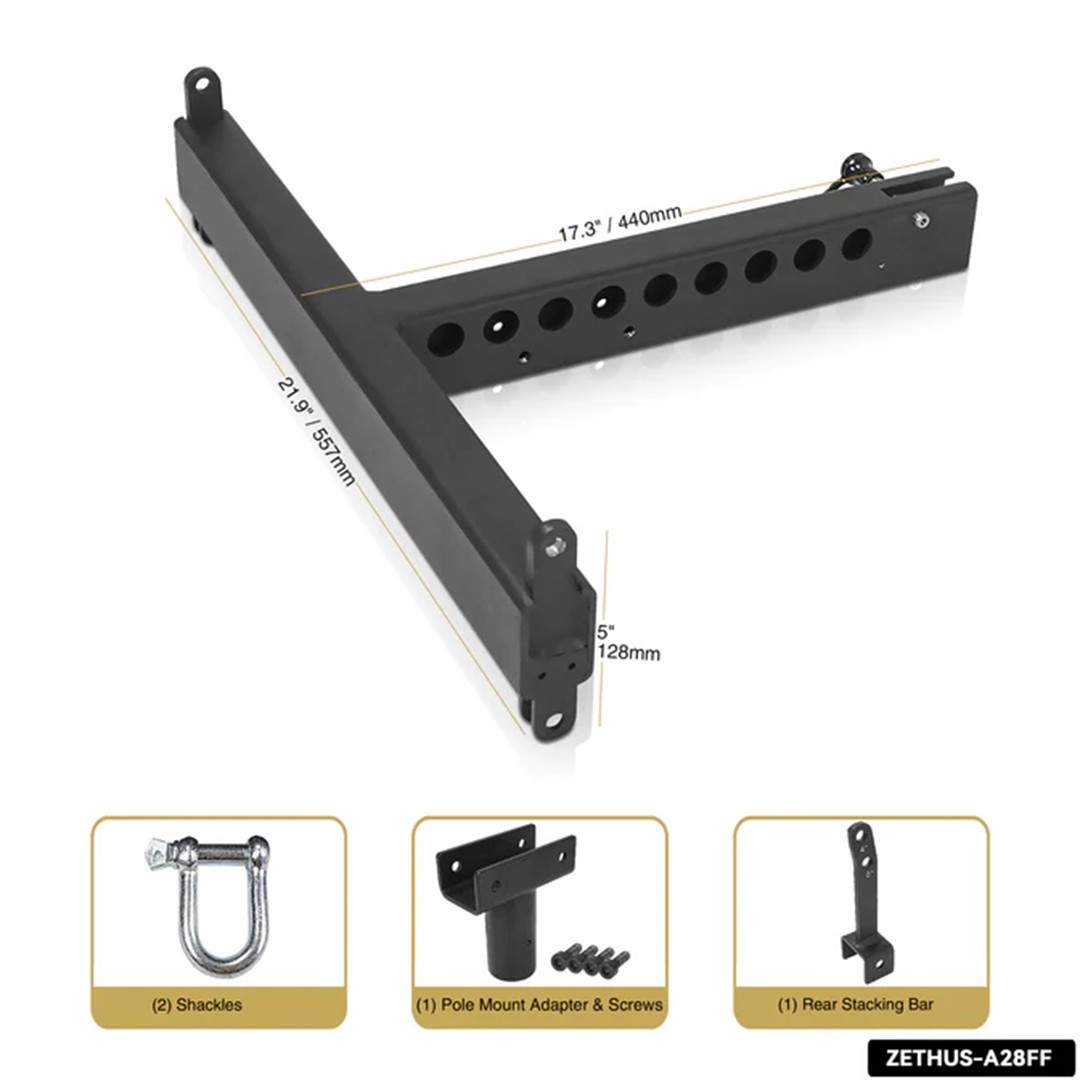

• Product Width: 21.9 inches (55.6 cm)

• Product Height: 5.0 inches (12.7 cm)

• Product Depth: 17.3 inches (43.9 cm)

• Product Weight: 17.0 lbs (7.7 kg)
