Powerful and Efficient Amplification: The VIO-L210 is powered by a 900W RMS Class D Digipro G3 amplifier, ensuring high efficiency and low power consumption. It delivers a peak power of 1800W, producing a maximum SPL of 135 dB. This power enables the system to deliver clear, distortion-free sound, even at high volumes.

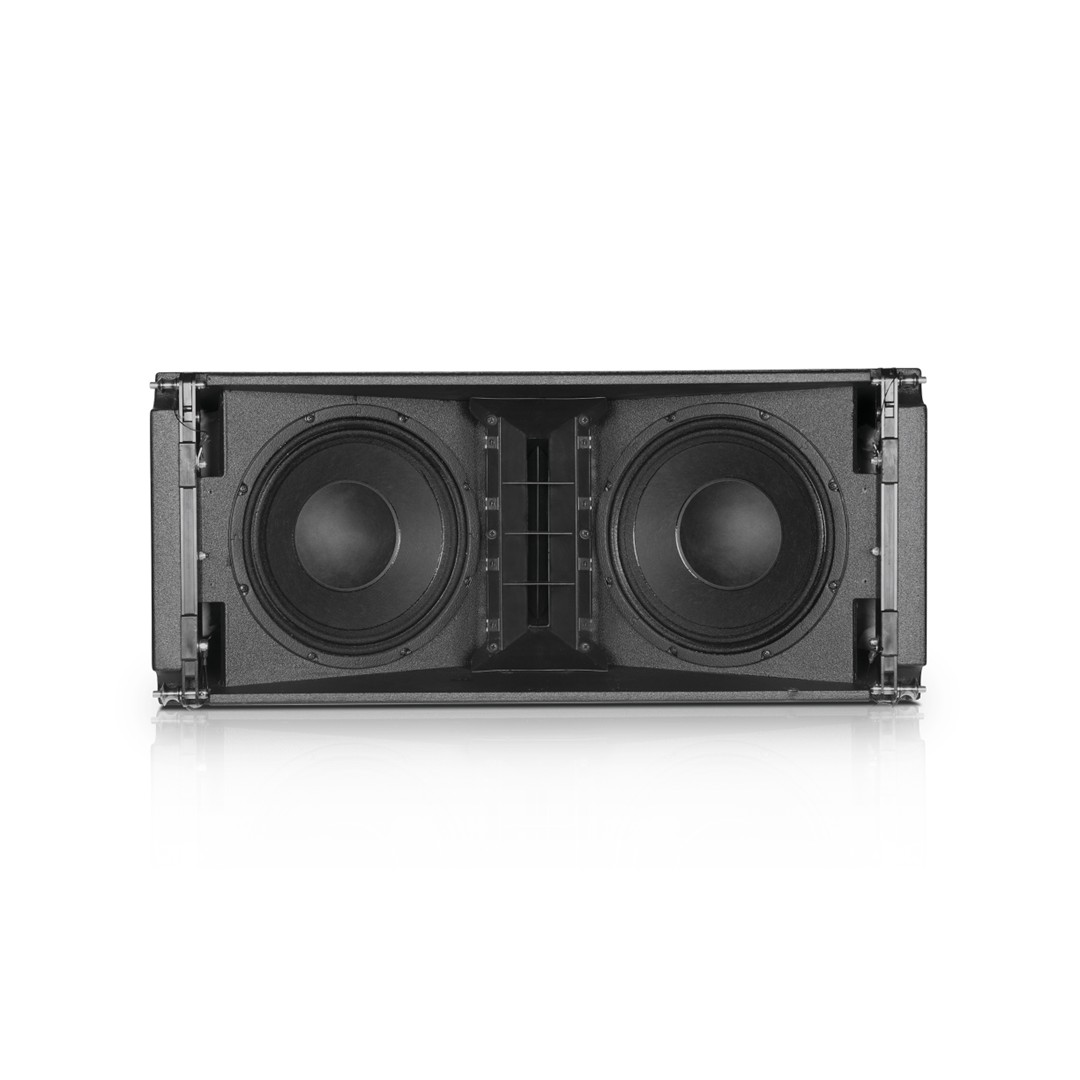

Advanced Acoustic Design: The dual 10″ neodymium woofers are arranged in a V-shape within a bass reflex wooden enclosure. This design enhances efficiency and ensures deep, precise low-frequency reproduction. The 3″ voice coil compression driver provides accurate high frequencies, creating a well-balanced sound signature.

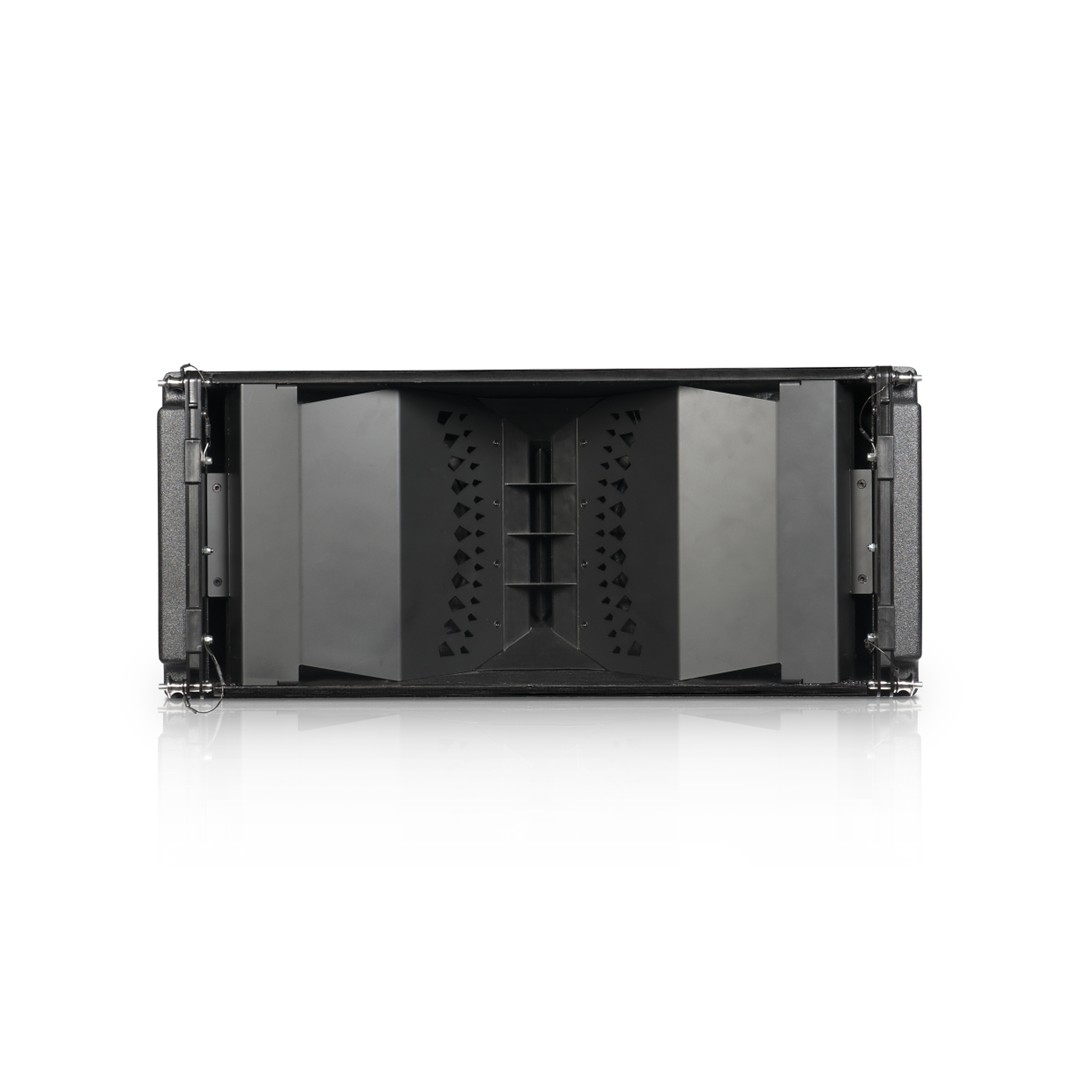

Optimized Waveguide and Phase Plugs: A newly designed waveguide creates a cylindrical wavefront, improving high-frequency directivity and throw distance. The two aluminum phase plugs reduce interference in the crossover region, enhancing clarity and transient response.

Intelligent DSP Processing: The onboard 56-bit DSP processor with FIR filters ensures a perfectly coherent sound. The system features dual active multiband peak, RMS, and thermal limiters to protect against overload. Digital optical isolation prevents noise from potential differences in the audio chain.

Seamless Integration and Control: The VIO-L210 is RDNet-ready, allowing remote monitoring and control via dBTechnologies’ Aurora Net software. This feature provides real-time system status, EQ adjustments, and delay settings for optimal performance.

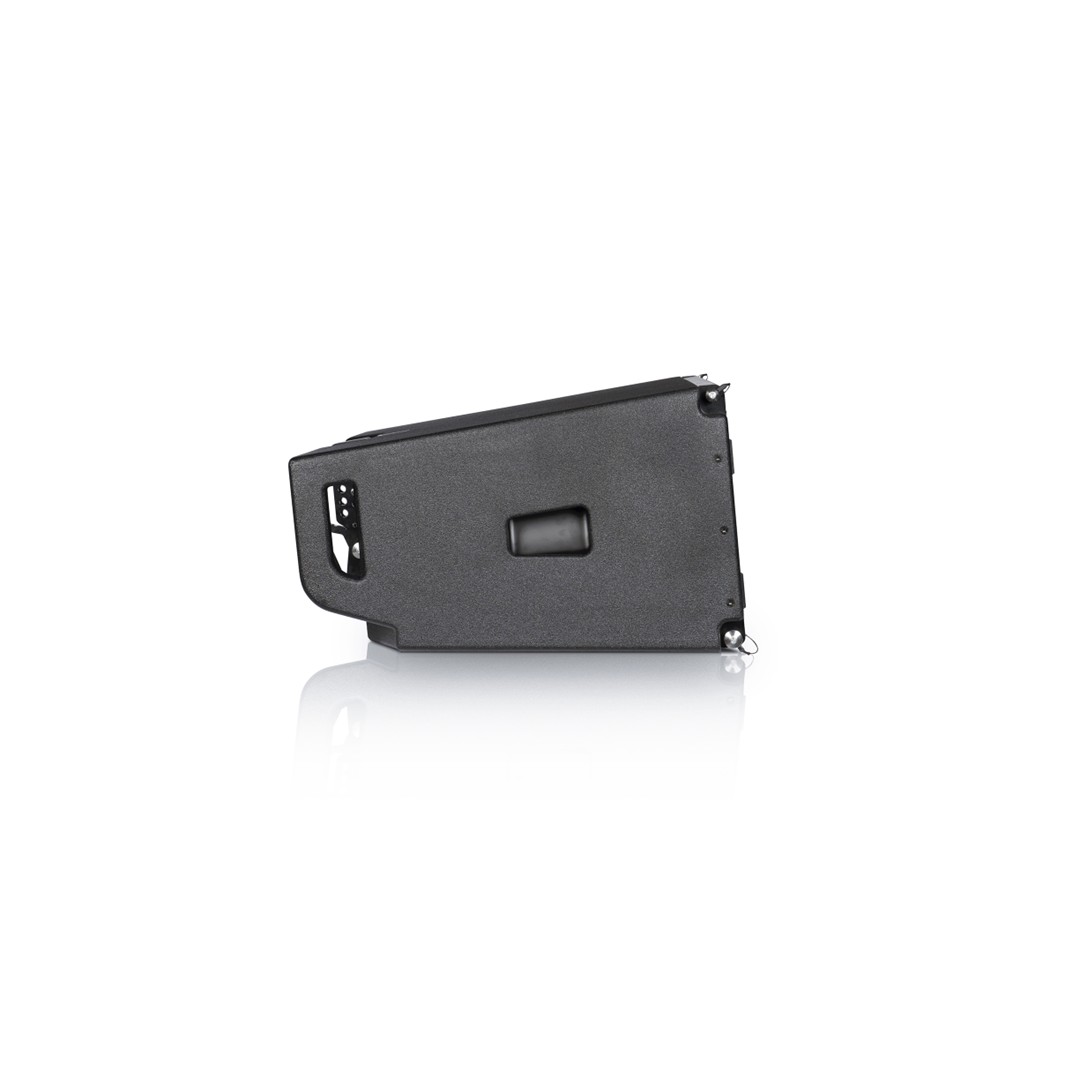

Durable and Road-Ready Design: The rugged multiplex plywood enclosure is coated with protective polyurea paint for durability. Integrated side handles make transport easy, while a built-in rain cover protects internal components from moisture and dust.

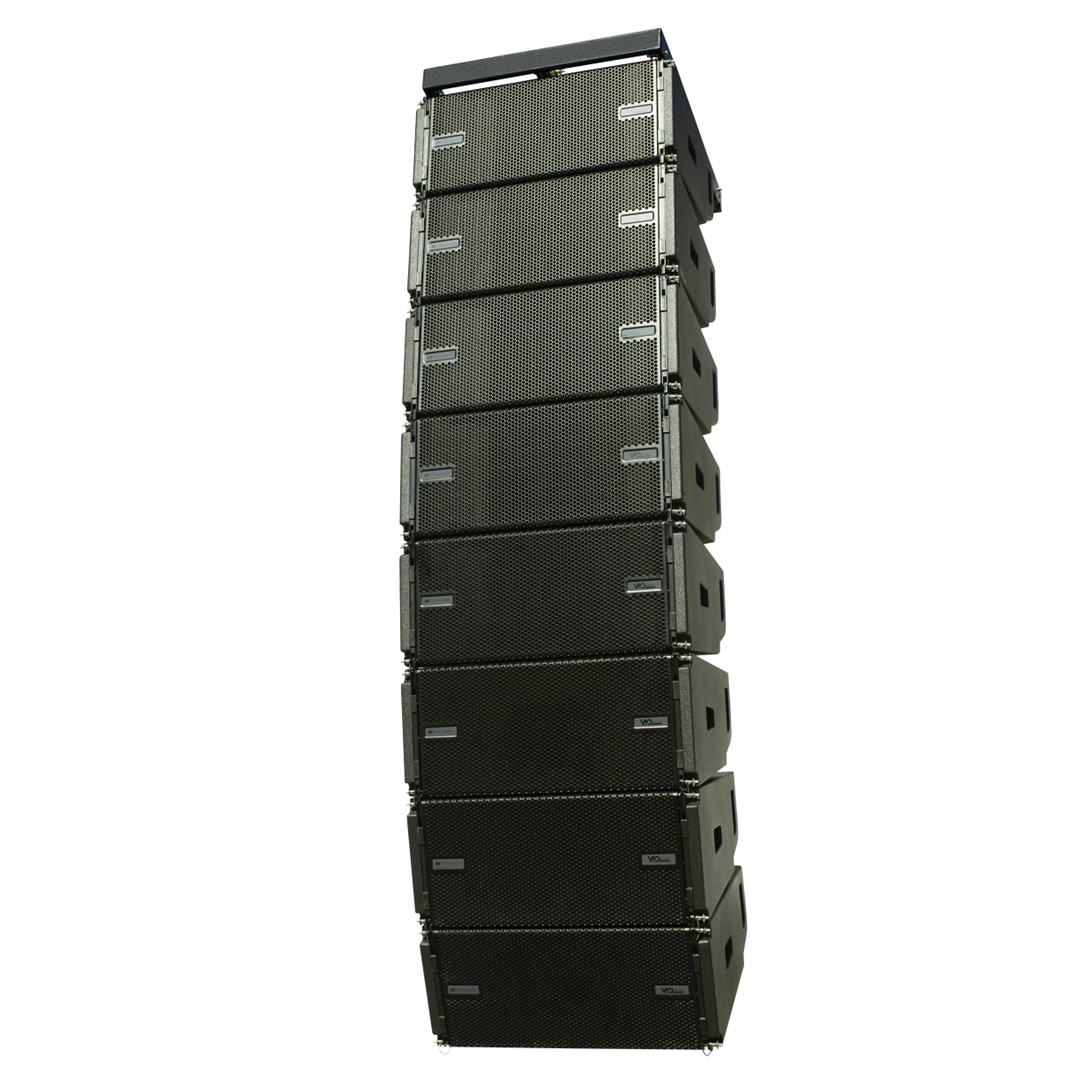

Fast and Flexible Rigging System: The three-point rigging hardware allows quick, safe, and precise system setup. Front links ensure easy connection at any angle, while the rear rigging strand enables angle adjustments through dBTechnologies Composer software. This system speeds up deployment for both touring and fixed installations.

Specifications:

• Speaker Type: 2-way Active Line Array Module.​
• Frequency Response: 67 Hz to 20,000 Hz (-6 dB).​
• Maximum SPL: 135 dB.​
• High-Frequency Driver: 1 x 1.4″ neodymium compression driver with 3″ voice coil.​
• Low-Frequency Drivers: 2 x 10″ neodymium woofers with 2.5″ voice coils.​
• Amplifier: Class D Digipro G3, 900W RMS
• Cooling: Convection.​
• Processor: DSP 56-bit with FIR filters.​
• Crossover Frequency: 950 Hz.​

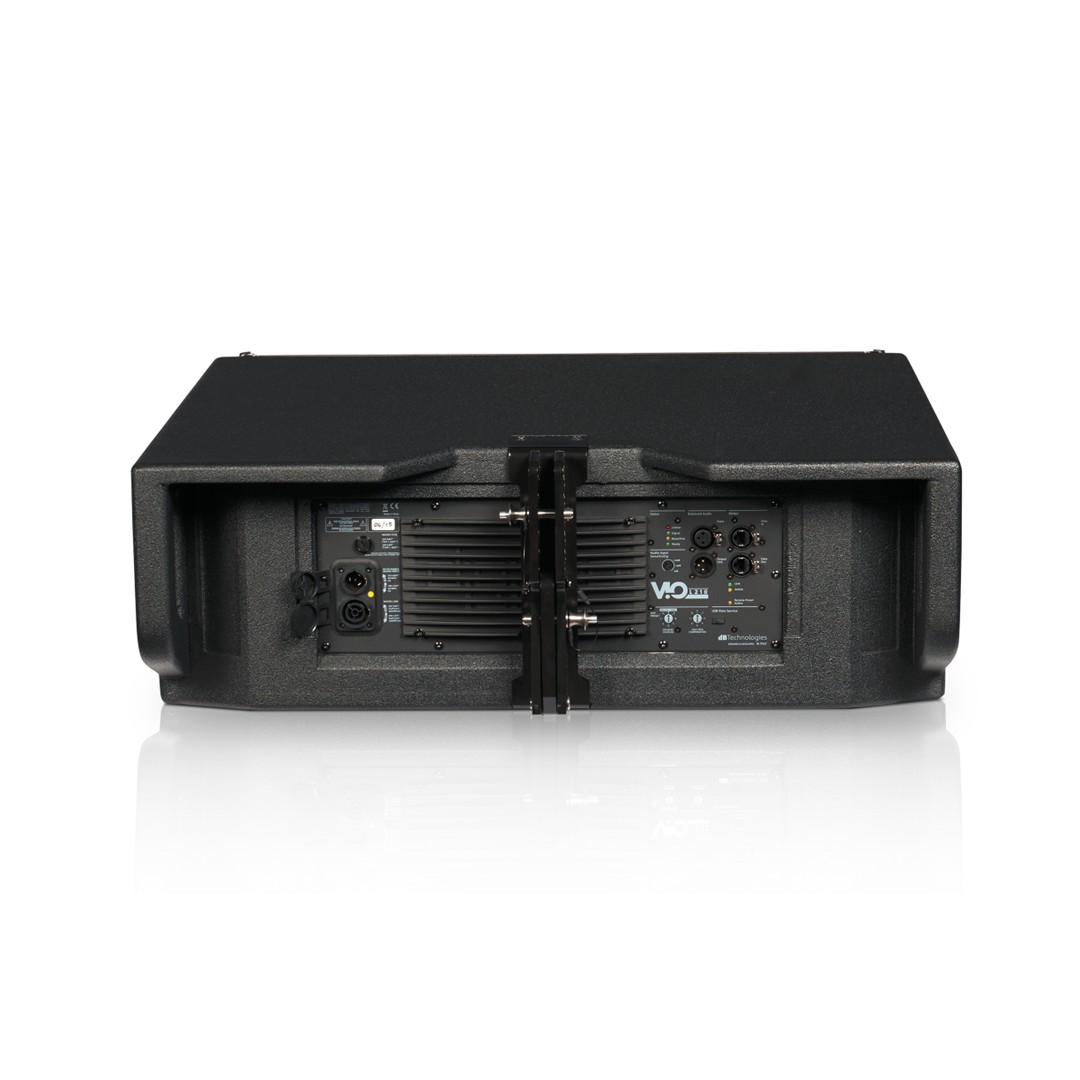

• Input/Output: 1 x XLR female input, 1 x XLR male output, RDNet remote control RJ45 connectors (in/out), 1 x PowerCon TRUE1 in/out.​
• Controls: Speaker coupling (7 presets), HF compensation (8 presets), input attenuation rotary switch.​
• Housing: Multiplex plywood with polyurea paint, trapezoidal 10° design.​
• Dimensions: 720 mm (W) x 320 mm (H) x 520 mm (D).​
• Weight: 28.6 kg.
