High-Efficiency Dual-Channel Power: The CA‑1202 delivers 2 × 120 W per channel, supporting both Low‑Z (4/8 Ω) and High‑Z (70/100 V) outputs. This flexibility allows it to drive a wide range of commercial loudspeakers, making it perfect for distributed audio in restaurants, hotels, retail spaces, and corporate environments.

Energy Star Certified Design: This amplifier exceeds efficiency standards while consuming less mains power than conventional models. Energy Star certification guarantees operational cost savings and reduces environmental impact, making it an ideal choice for energy-conscious installations.

Direct Drive Constant Power Technology: By utilizing direct drive, constant power circuitry, the CA‑1202 delivers consistent, reliable audio performance. This technology ensures clean, high-fidelity sound across all output levels while protecting connected speakers from overload.

Auto Ramp Power Control: Auto Ramp automatically powers the amplifier up and down based on input signals. This prevents sudden noise, reduces power consumption, and extends the life of internal components, making it energy-smart and user-friendly.

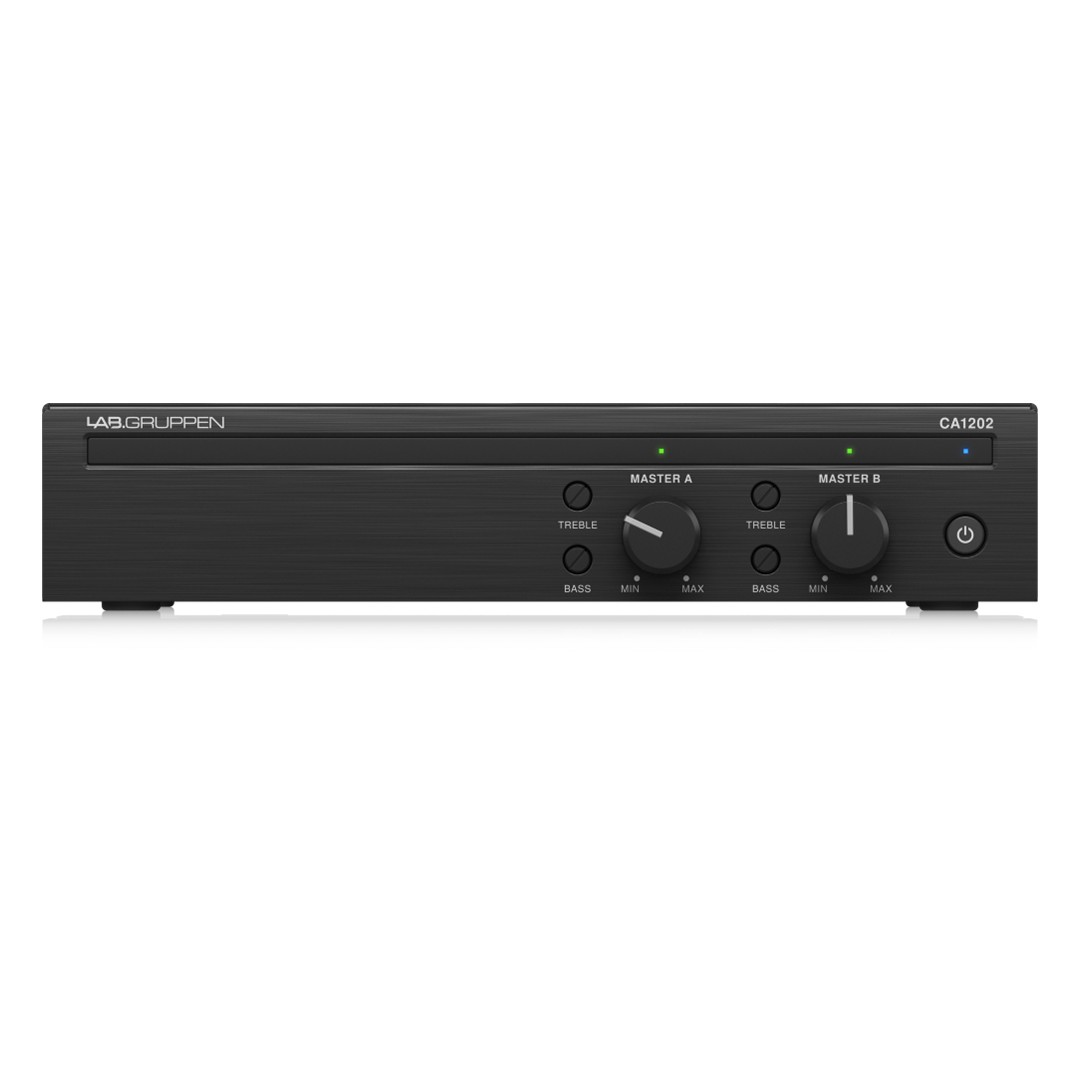

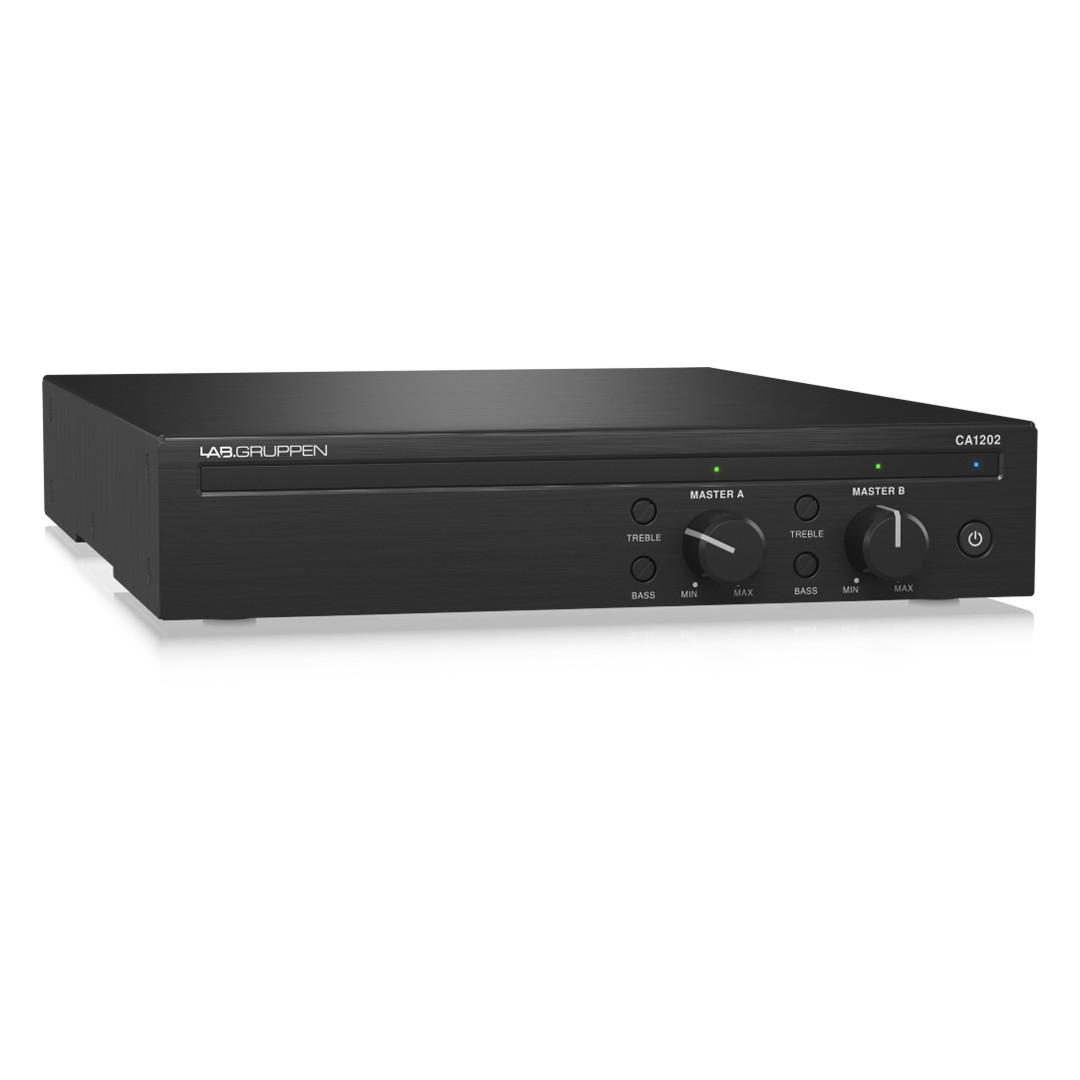

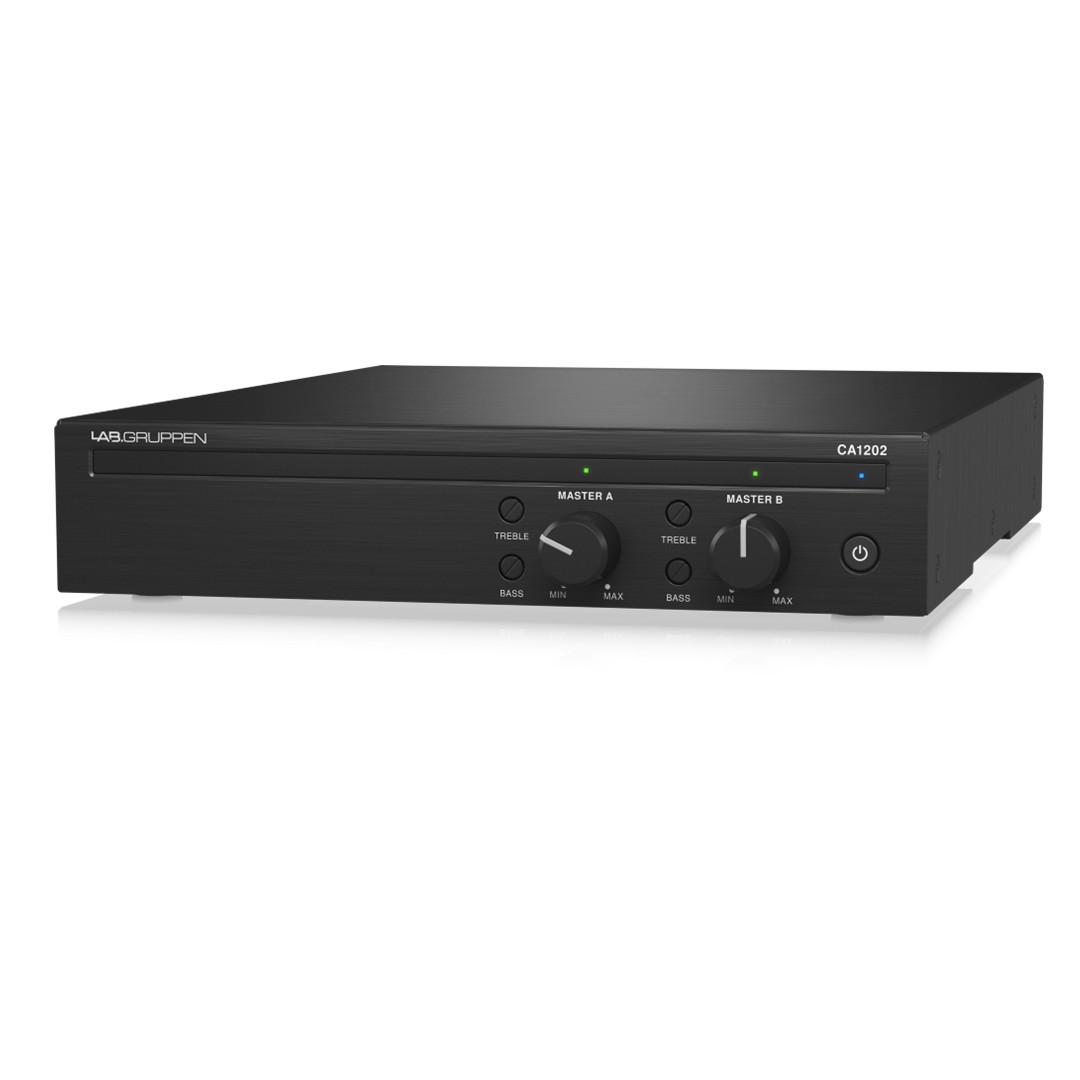

Intuitive Front Panel Controls: Each channel features individual master volume and bass/treble adjustments. The front-panel power button and simple control layout allow even non-technical users to operate the amplifier efficiently.

Remote Volume Control Options: A standard RJ‑45 port enables GPI remote control via Ethernet cabling. Compatible controllers, such as the LAB.LEVEL or CRC-V series, allow effortless adjustment of multiple zones in larger installations.

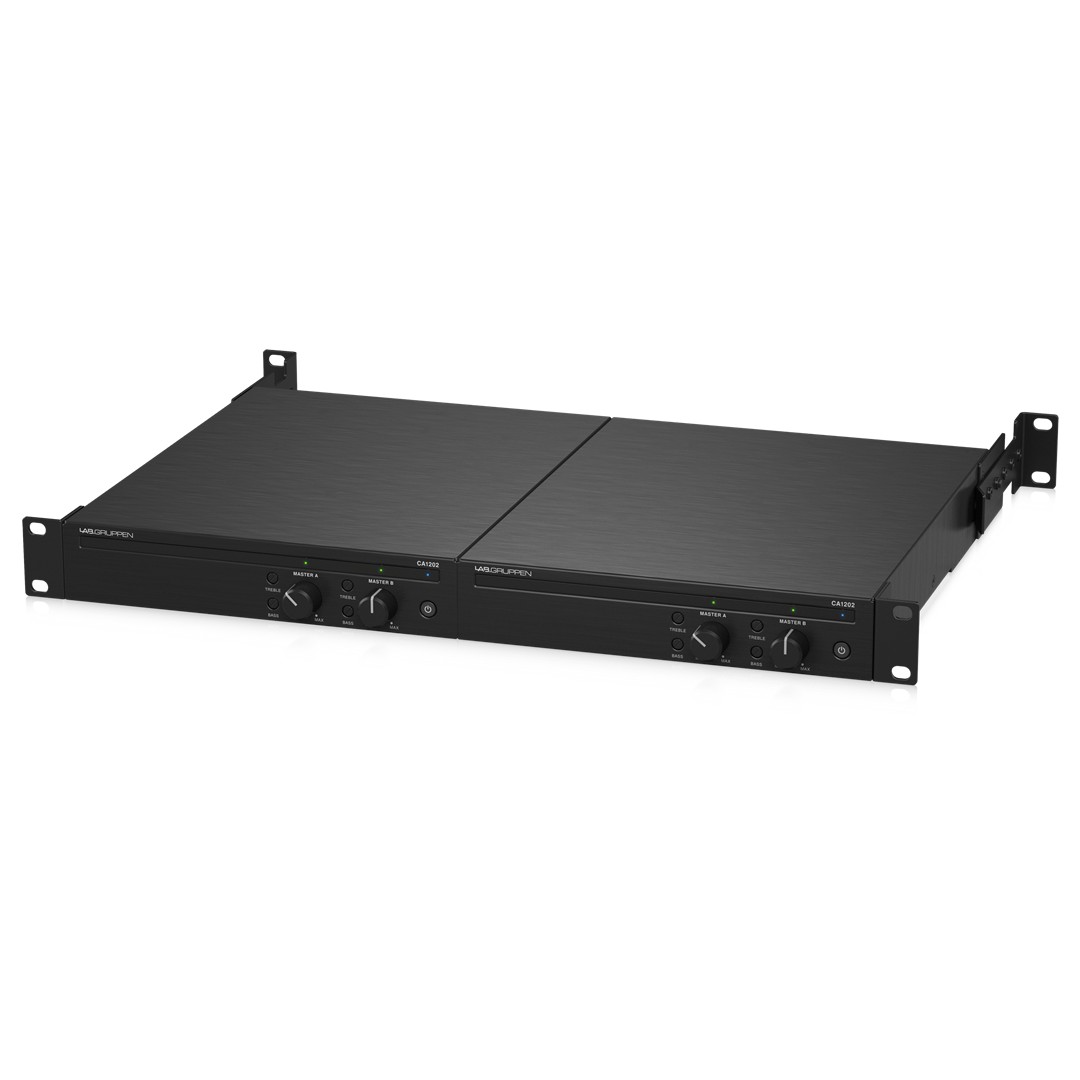

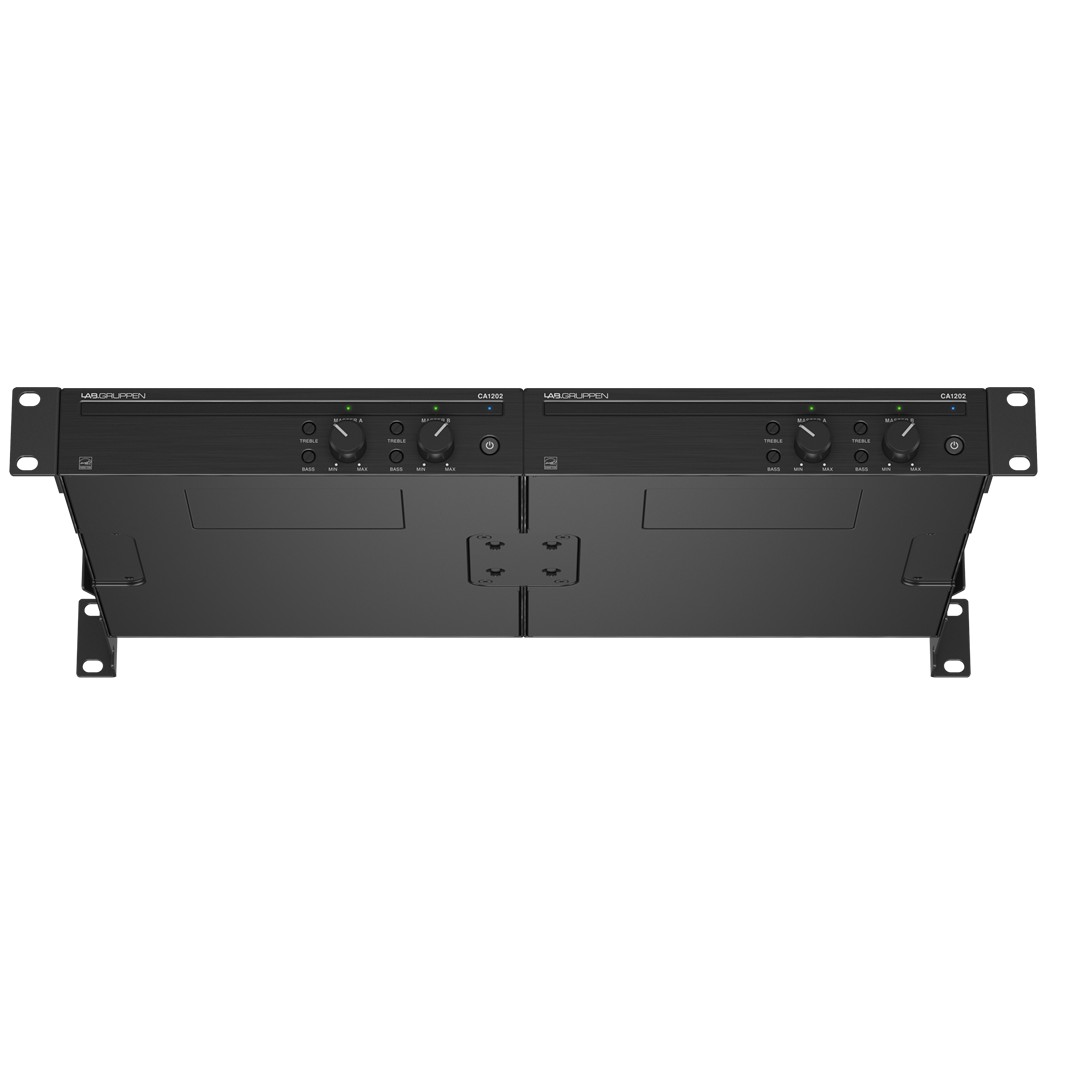

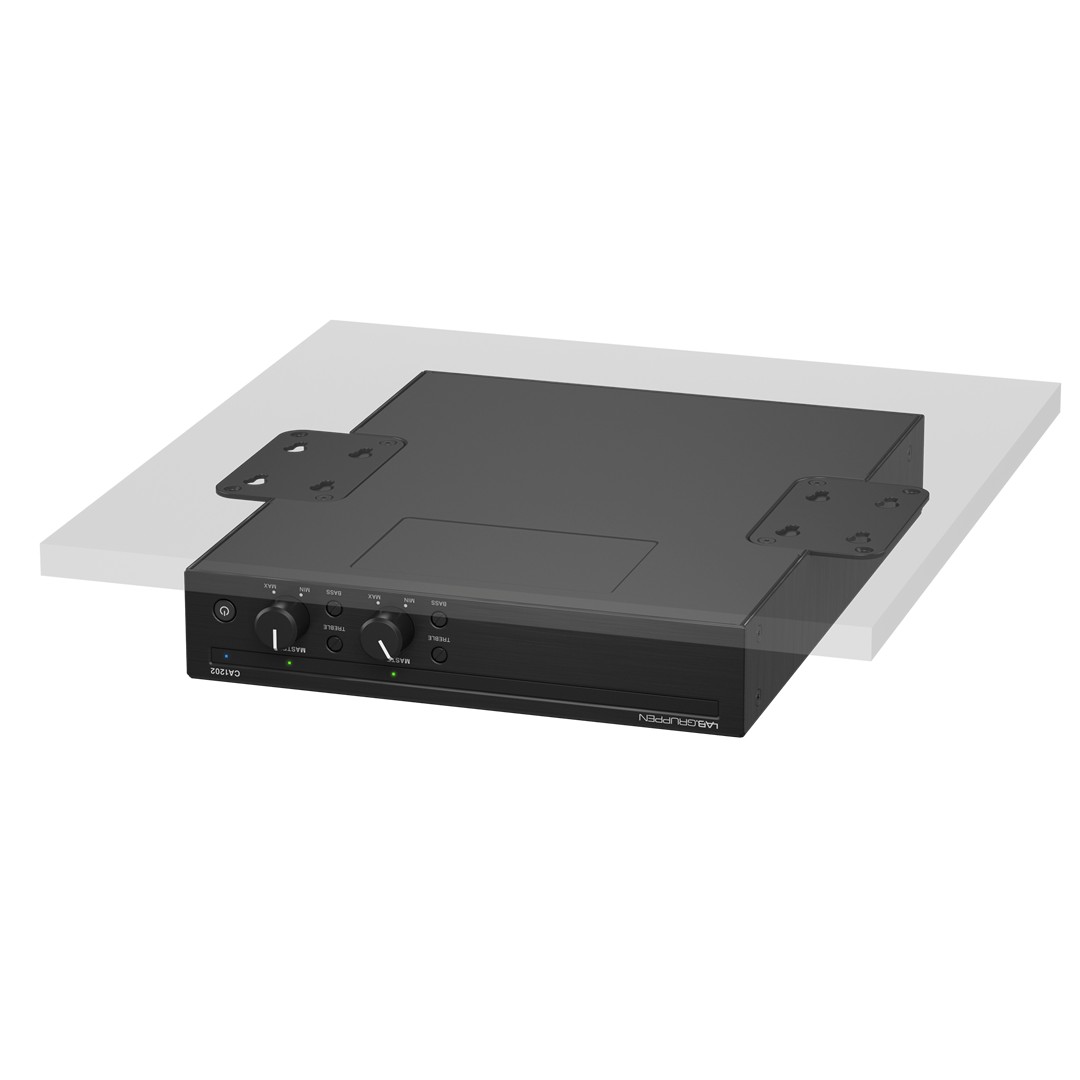

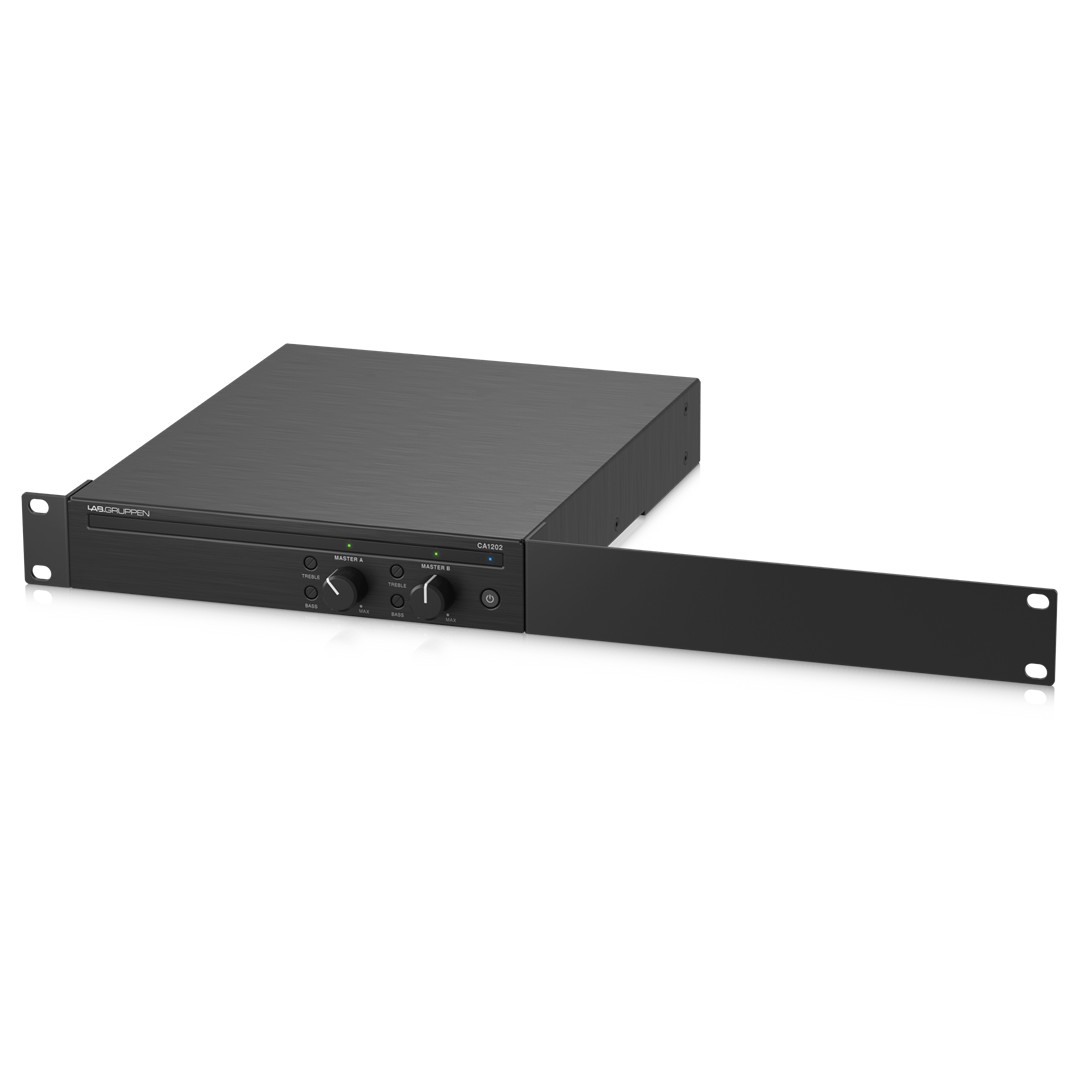

Flexible Mounting and Installation: The 1U, half-rack enclosure can be mounted on racks, tables, walls, or shelves. Optional brackets enhance flexibility, and rubber feet allow standalone placement without additional hardware.

Quiet Fan-Less Operation: Convection cooling eliminates the need for fans, providing whisper-quiet operation. This makes the CA‑1202 ideal for noise-sensitive environments like offices, hotels, and classrooms.

Specifications:

Power & Channels:

• 2 independent amplifier channels

• 2 × 120 W output per channel (4 Ω, 8 Ω, 70 V, 100 V)

• Class‑D amplifier for high efficiency

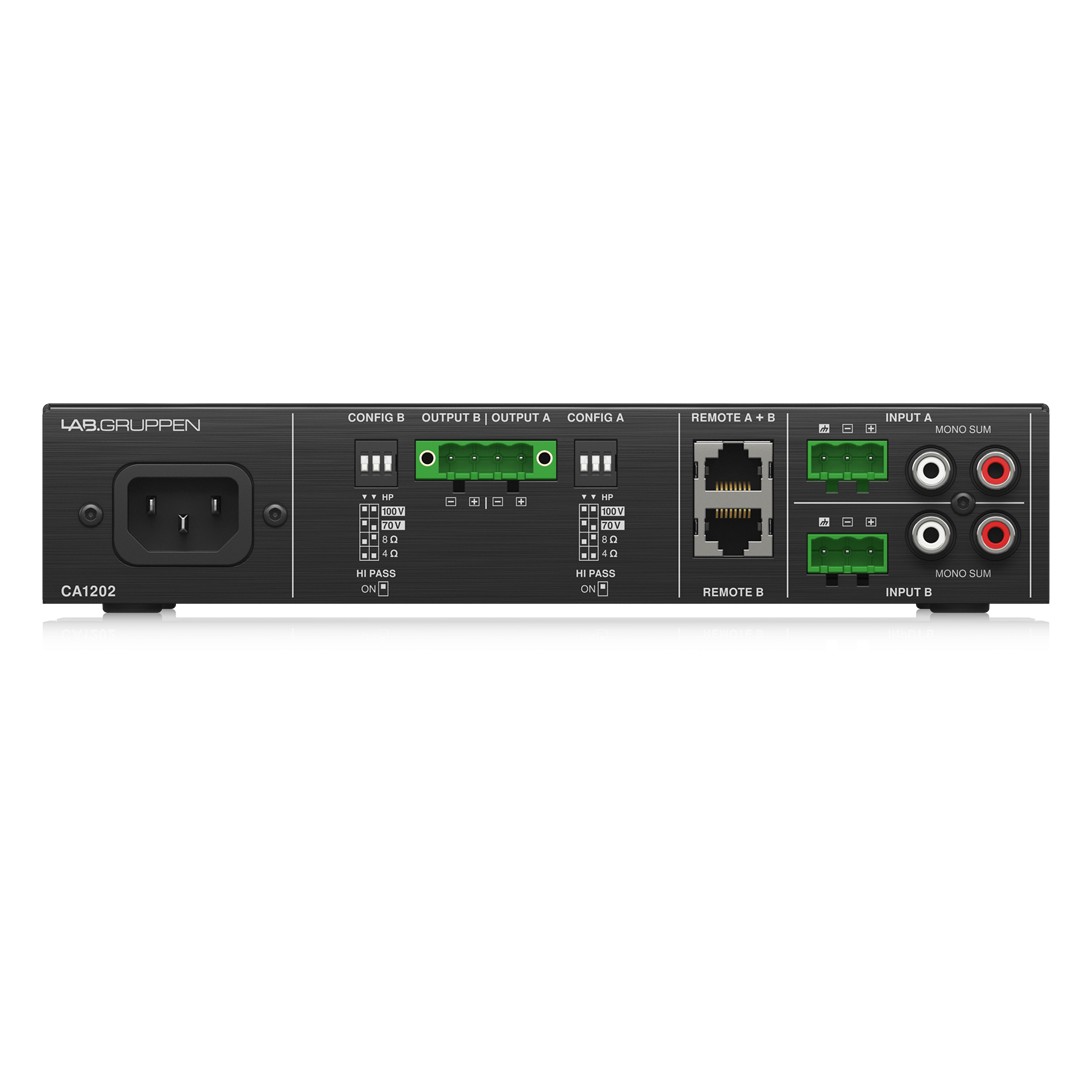

Inputs / Outputs:

• 2 × Euroblock 3‑pin balanced line inputs

• 2 × RCA unbalanced stereo inputs (summed to mono; one source at a time)

• Euroblock speaker outputs (Low‑Z and High‑Z support)

• RJ‑45 port for GPI remote volume control

Performance:

• Frequency Response: 20 Hz – 20 kHz ±0.5/‑1 dB

• Signal-to-Noise Ratio: > 97 dBA

• Total Harmonic Distortion (THD): ≤ 0.05 %

• Crosstalk: > 85 dB

• Switchable 80 Hz high-pass filter per channel

• 2‑band shelving EQ (Bass/Treble) per channel

Protections & Reliability:

• Thermal, overcurrent, DC fault, and ultrasonic protection

• Output limiting to prevent overdrive

Power & Efficiency:

• AC Input: 100 V – 240 V AC, 50/60 Hz

• Typical Power Consumption: ~70 W (1/8 rated power at 4 Ω)

• ENERGY STAR certified

Physical / Mechanical:

• Rack Size: 1 U, half-rack width with included brackets

• Convection-cooled, fanless design for quiet operation

• Dimensions: 299.7 × 218.4 × 43.2 mm (11.8 × 8.6 × 1.7″)

• Weight: ~2.6 kg (5.8 lb)

• Single LED status indicators

Certifications & Safety:

• ENERGY STAR, CE, RoHS, PSE, CCC, cTUVus
