4 Inputs / 1 Output Configuration: The CM‑41 provides four mic/line inputs, each with individual volume control. Its single output allows easy connection to amplifiers or other system components.

Individual Channel and Tone Controls: Each input has a dedicated front-panel gain knob. Master bass and treble controls let you shape the overall sound to suit any room.

Configurable Priority Muting: This feature automatically reduces background music when announcements are made, ensuring clear communication over ambient sound.

GPI Remote Volume Control: The standard RJ‑45 Ethernet connector supports remote operation. You can control volume from wall-mounted panels or tabletop controllers.

Aux Output for Expansion: An auxiliary output allows easy integration with additional amplifiers, processors, or other devices for larger distributed audio systems.

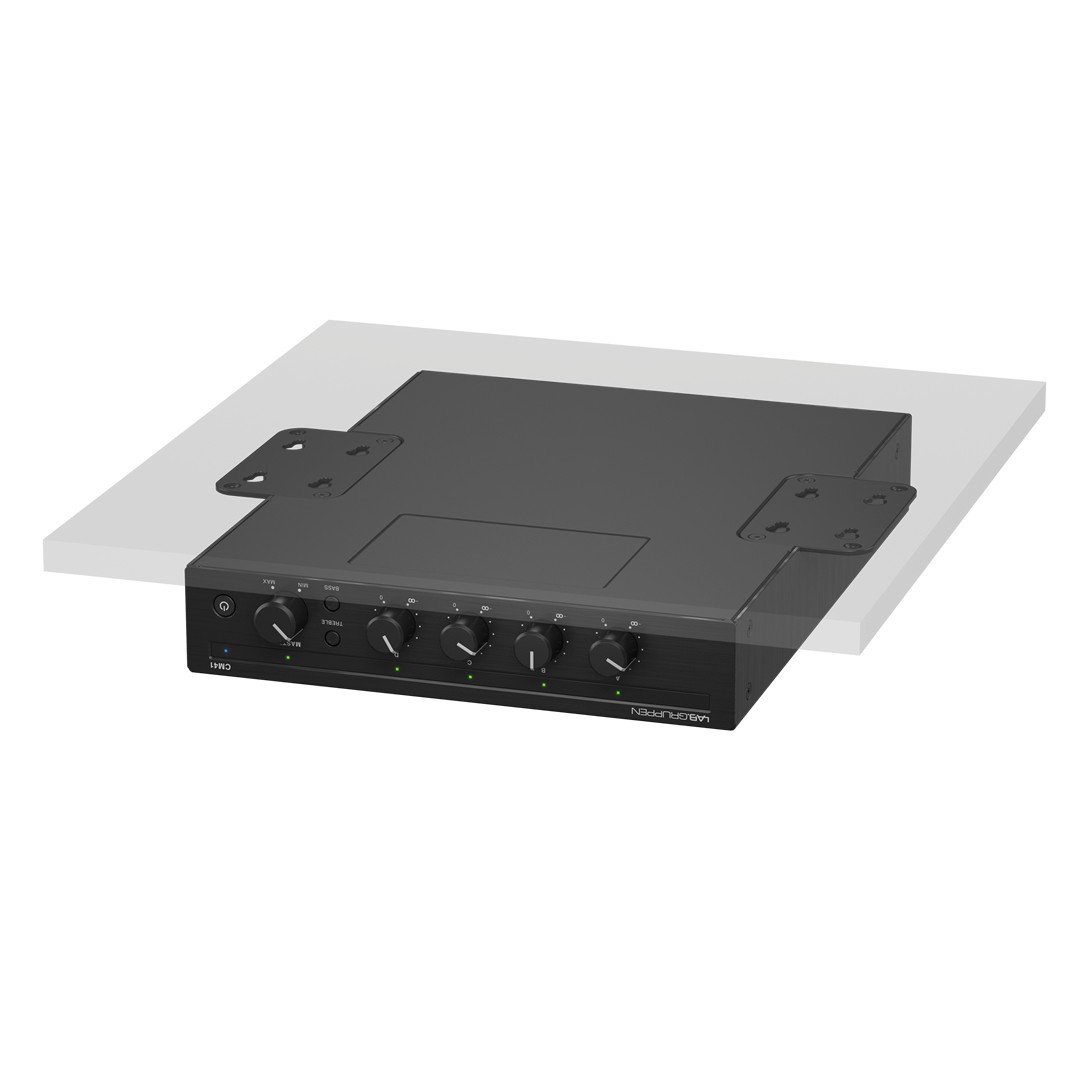

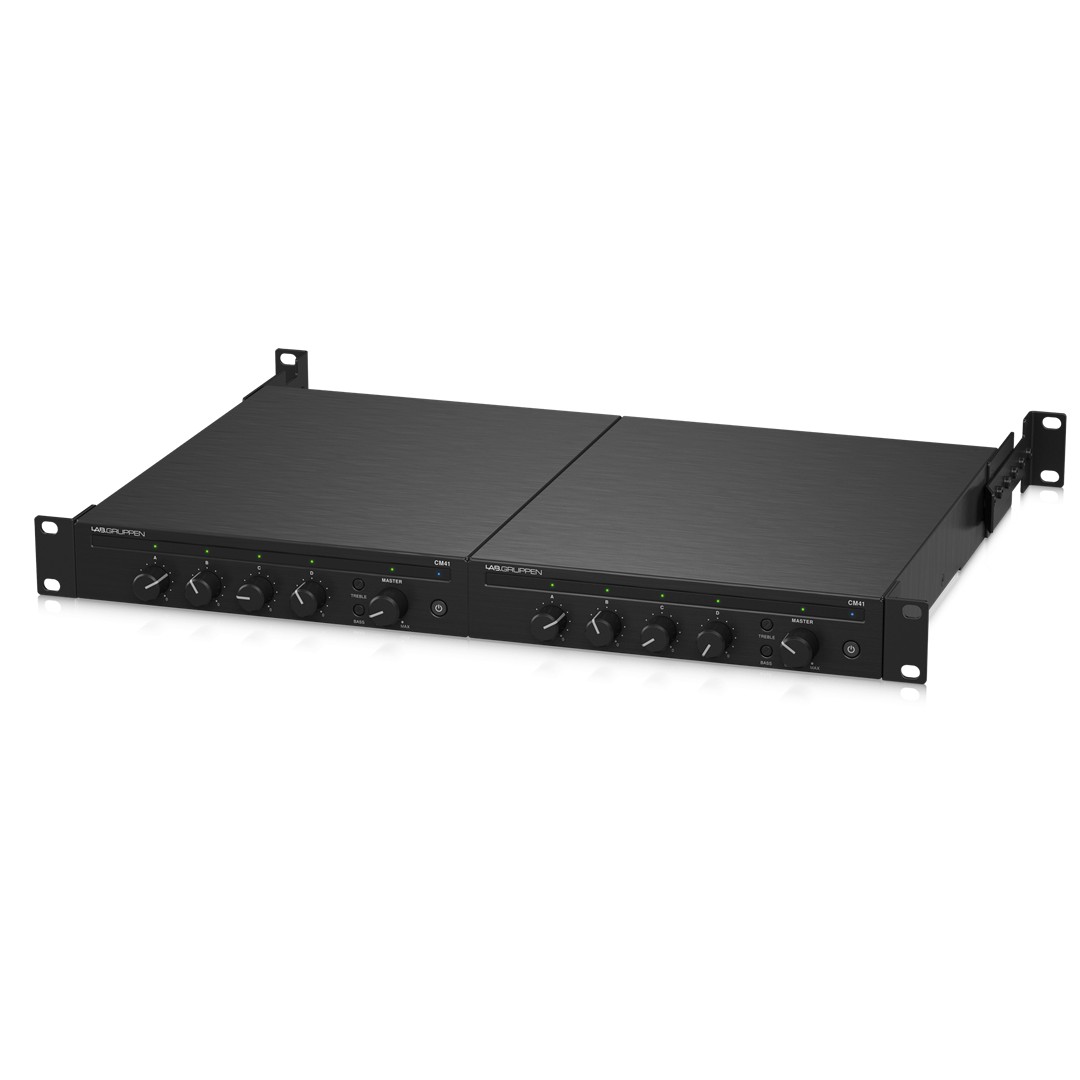

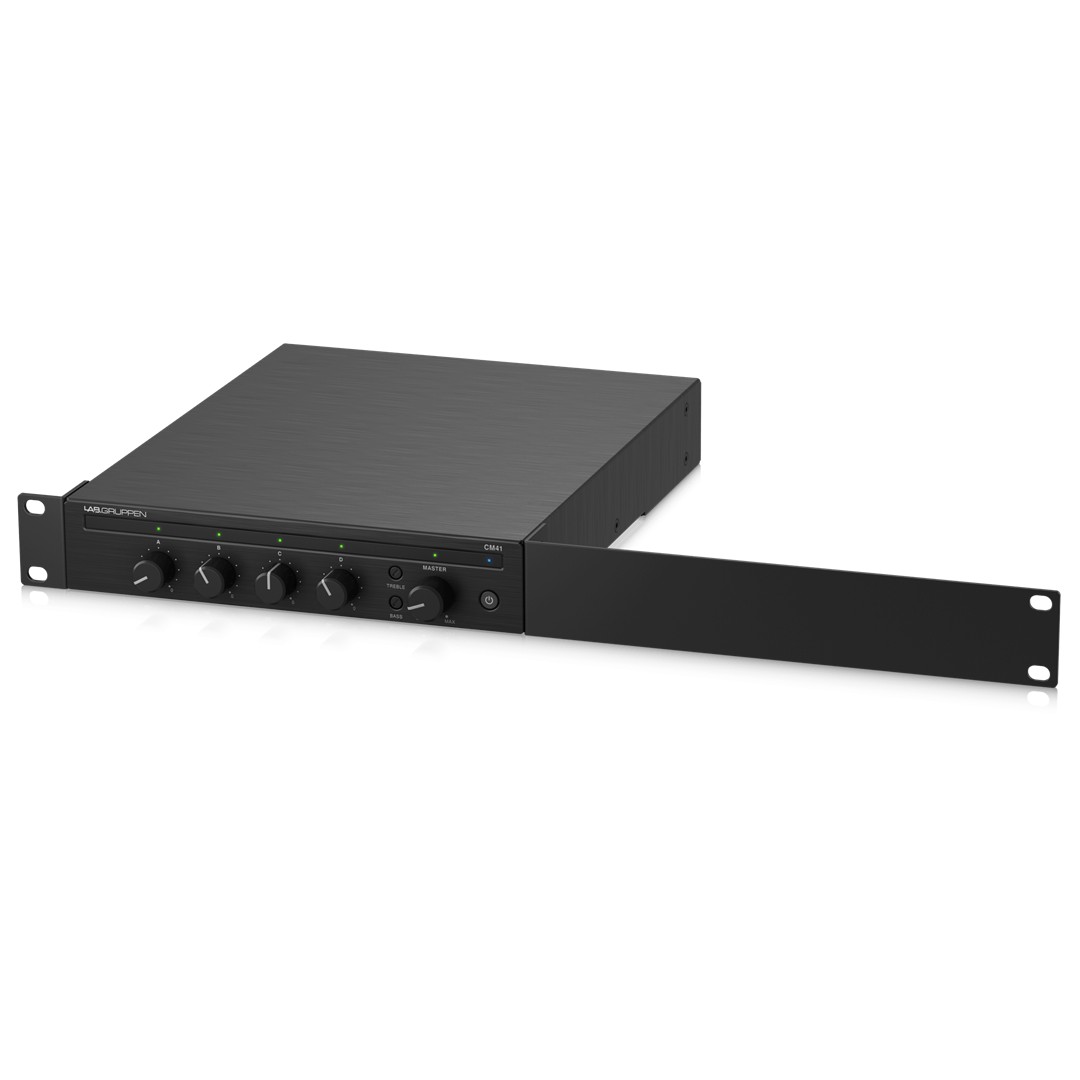

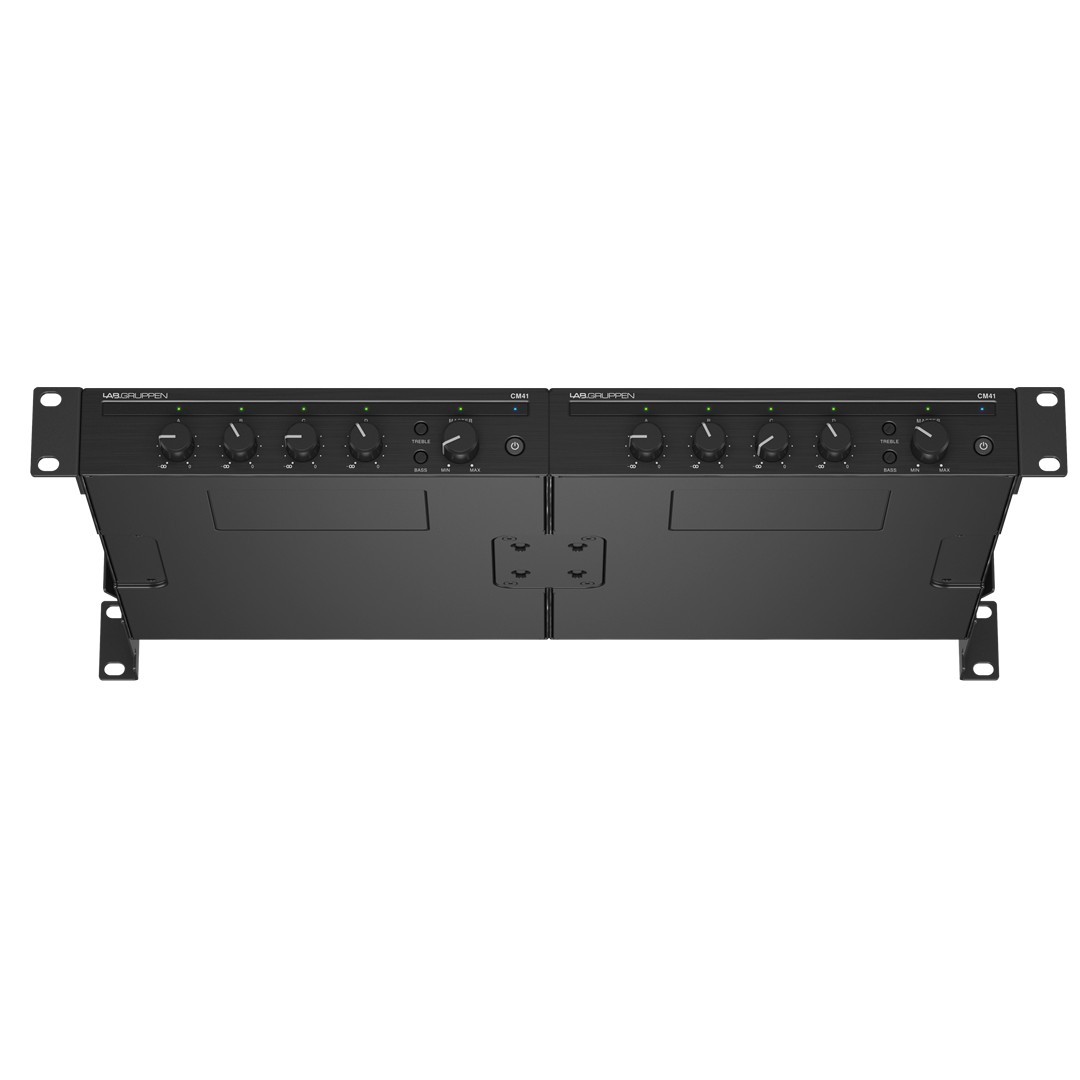

Flexible Rack and Surface Mounting: The 1U, half-rack enclosure comes with brackets for rack, table, or wall installation. It adapts to any commercial or industrial setup.

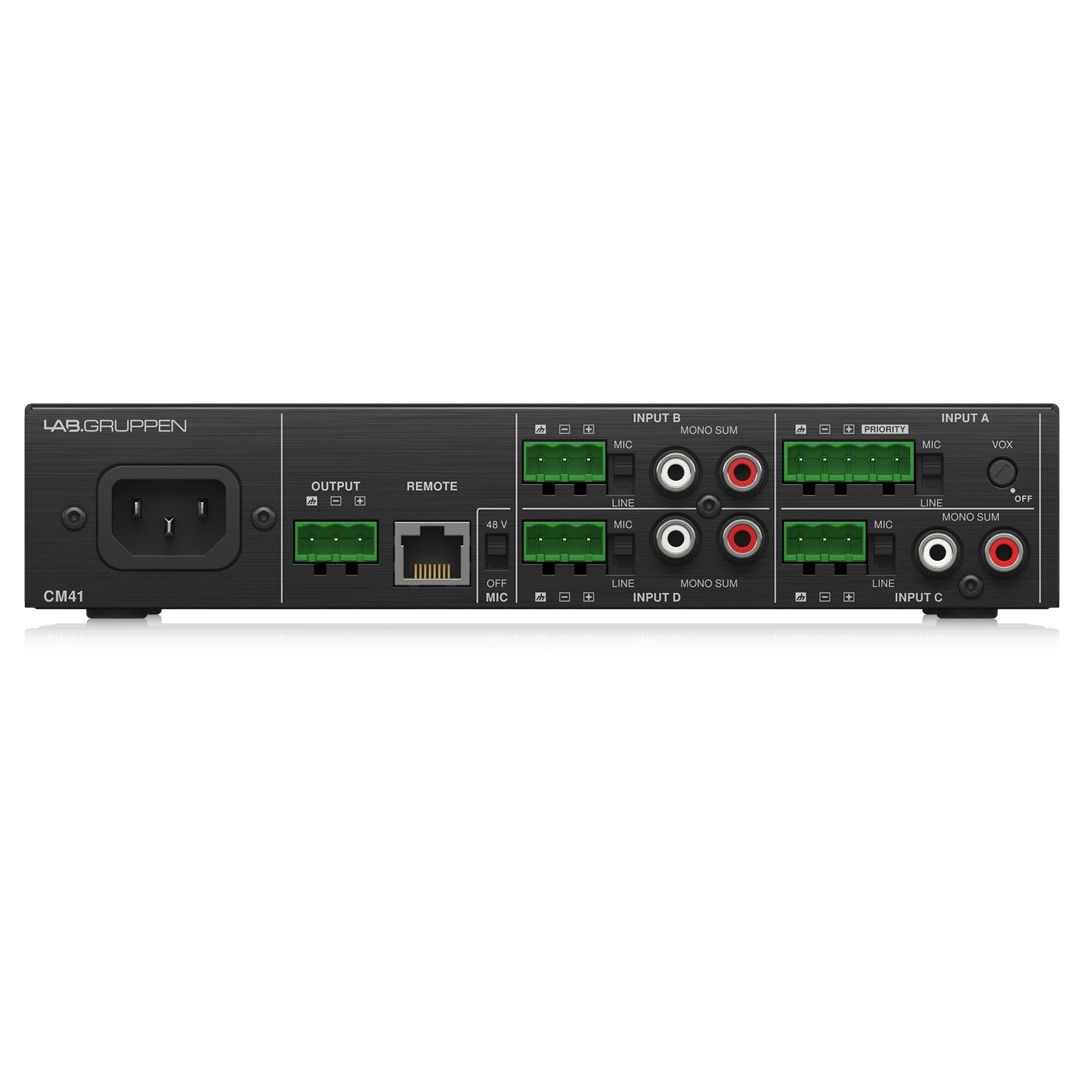

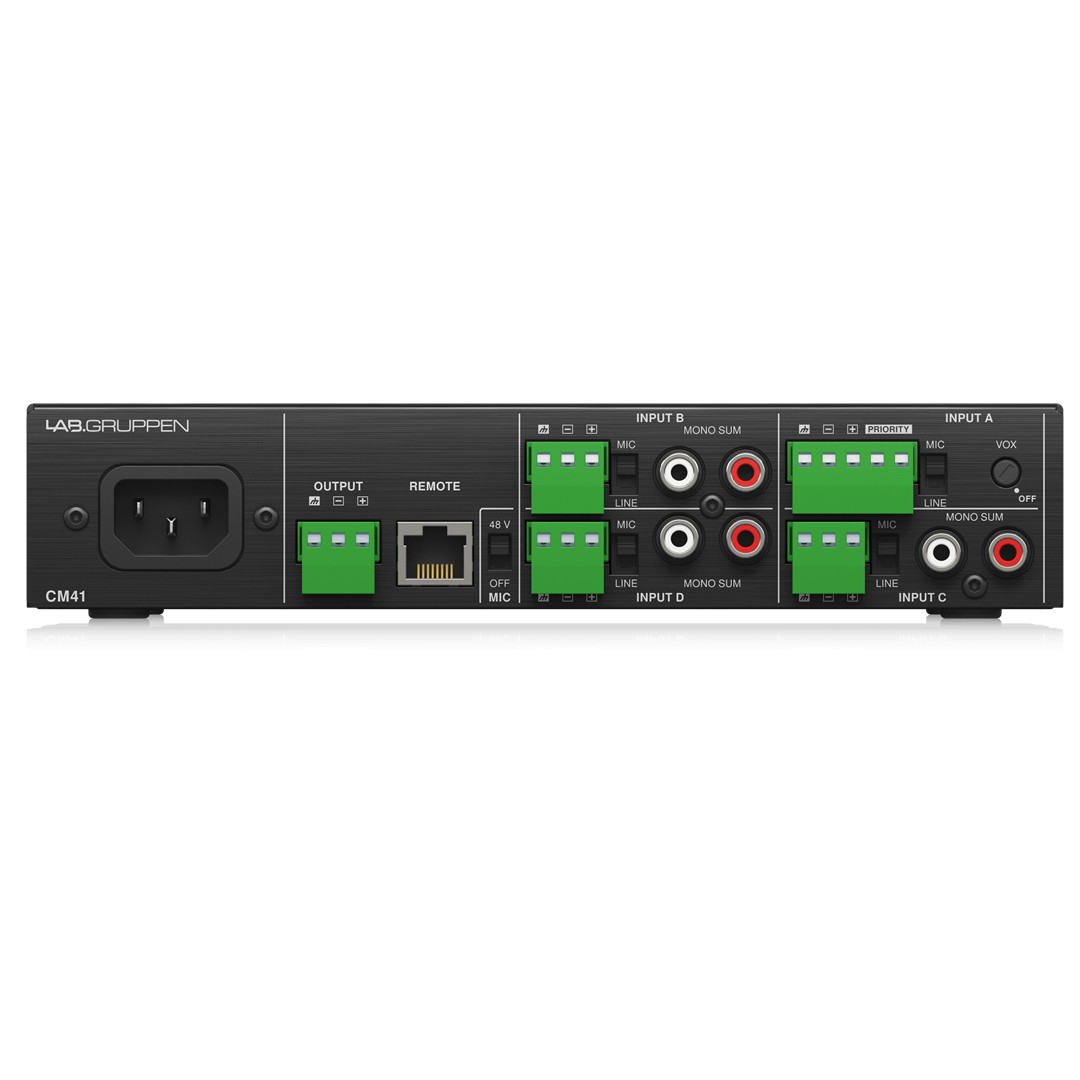

Durable Euroblock Connectors: Euroblock mic/line inputs and outputs simplify wiring and maintenance while ensuring reliable, secure connections.

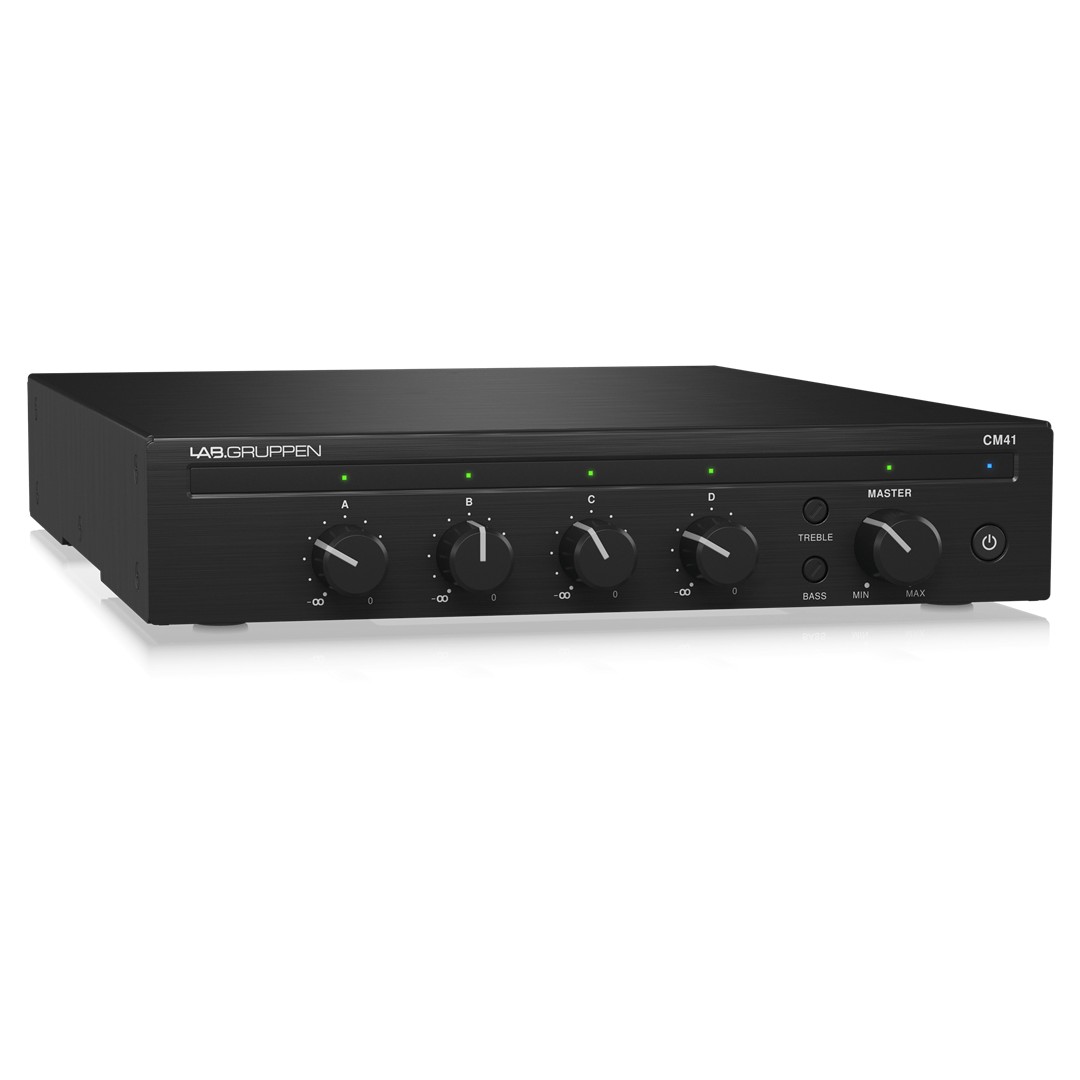

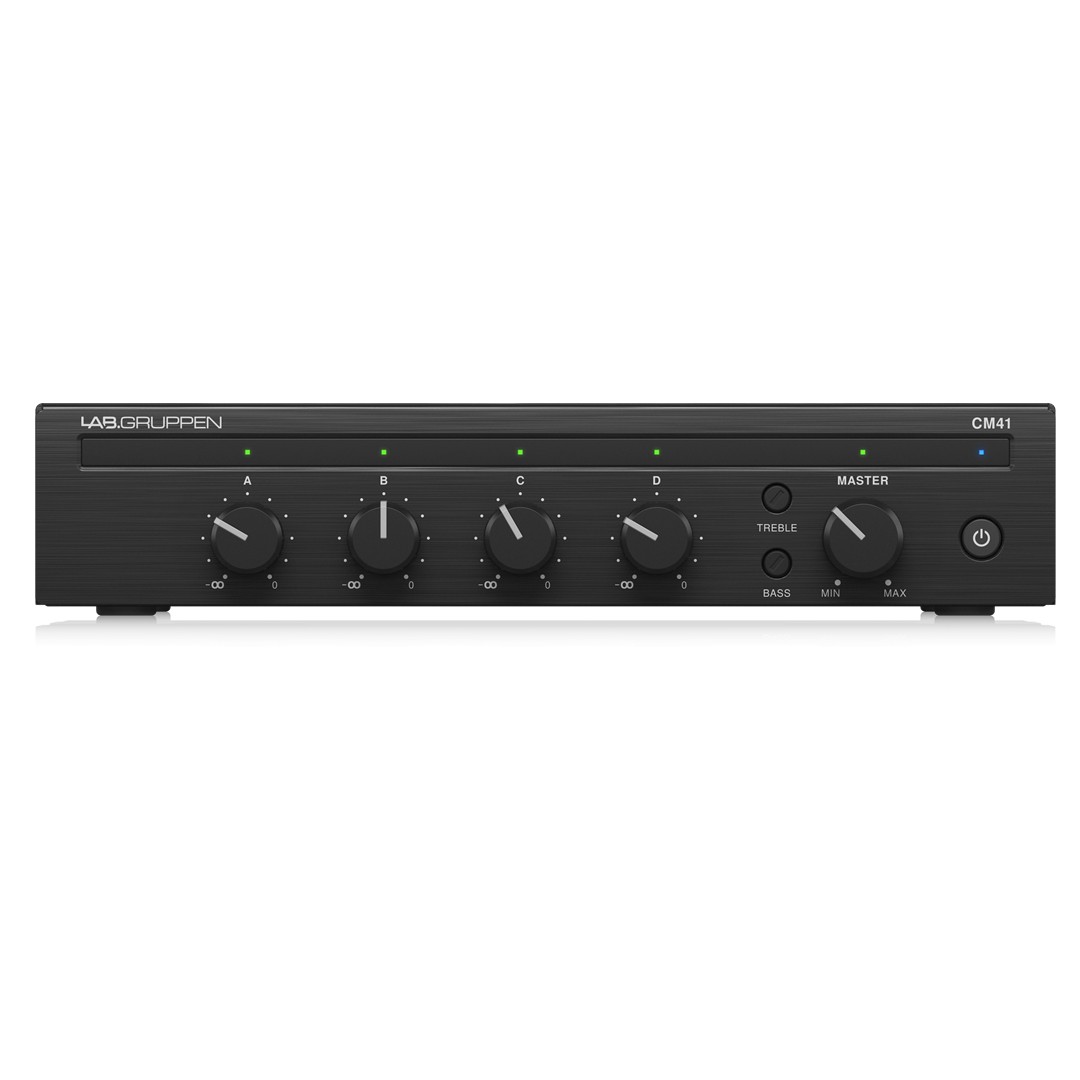

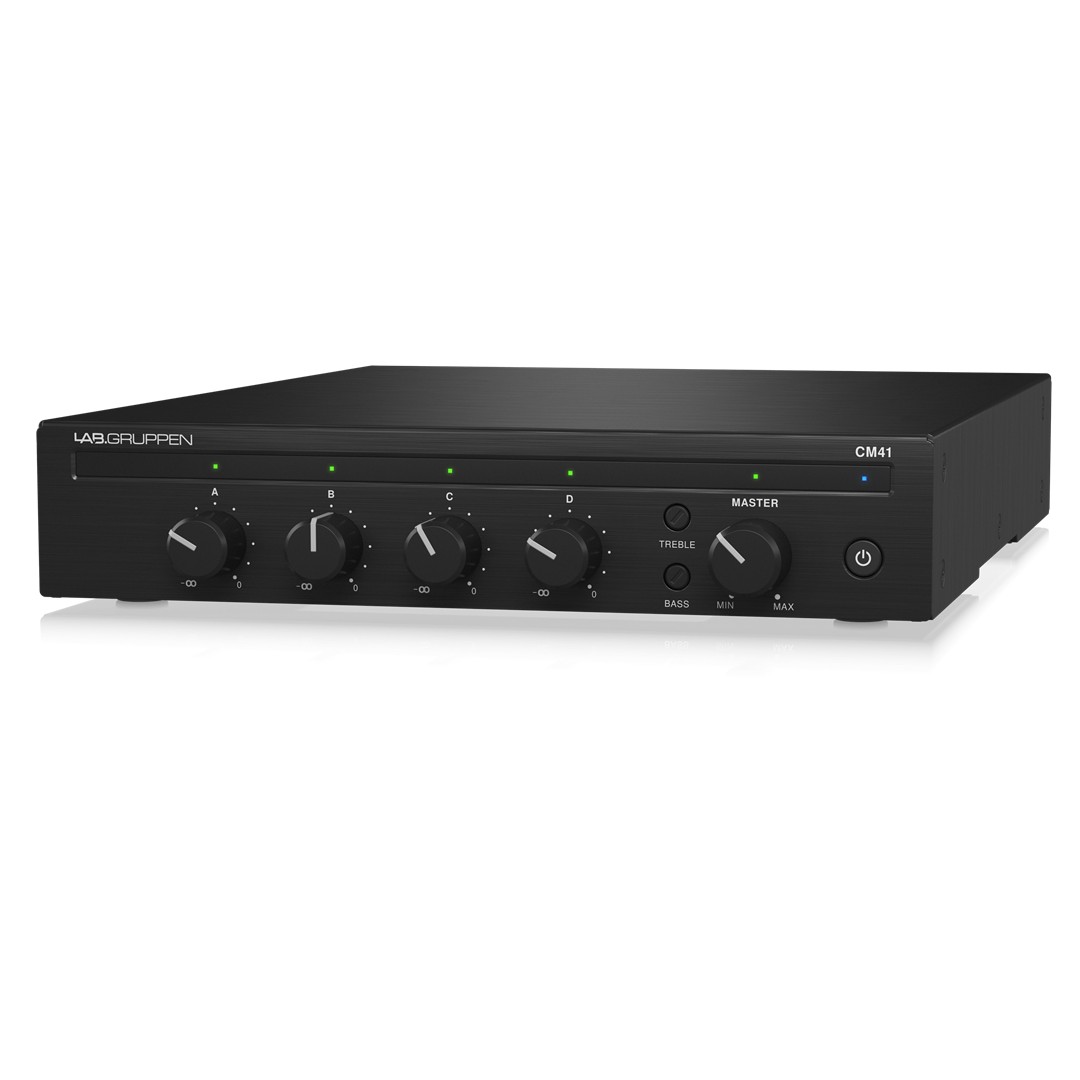

Intuitive Front Panel Operation: All controls, including power, input/output levels, and tone adjustments, are easily accessible. This makes operation simple even for non-technical users.

Compact and Lightweight Design: Measuring 44 × 218 × 299 mm and weighing only 2.1 kg, the CM‑41 fits in tight spaces without compromising performance.

Specifications:

Mixer:
• Input Channels: 4 inputs – 1 output

Audio Inputs:
• Mic/Line w/ Priority: 1 × 5‑pin Euroblock
• Mic/Line w/ Summed RCA: 3 × 3‑pin Euroblock, 3 × stereo RCA

Impedance:
• Balanced Mic/Line: 20 kΩ
• Unbalanced Line/RCA: 10 kΩ

Maximum Input Level:
• 4.88 V (+16 dBu)

Audio Output:
• 3‑pin Euroblock, Gain Range: ∞ to +10 dB
• Max Output Level: 9.6 V (+22 dBu)

Controls:
• Front: Power standby, input/output gain, bass/treble
• Rear: Mic/line switch, ducking threshold, phantom power

Tone Controls:
• Bass ±10 dB @ 100 Hz
• Treble ±10 dB @ 10 kHz

Indicators:
• Power (Blue), Standby/Force (Yellow/Red), Signal/Clip LEDs

Performance:
• Distortion <0.05%
• Frequency Response: 20 Hz–20 kHz ±1 dB
• SNR >97 dBA

Power:
• Universal 100–240 V, 10 W

Dimensions / Weight:
• 44 × 218 × 299 mm / 2.1 kg

Finish & Approvals:
• Black anodized chassis, CE, FCC class B
