Powerful Coaxial Drivers: The TQ14M uses a carbon fiber-loaded 14″ neodymium low-frequency driver. It pairs with a titanium dome 1.4″ high-frequency compression driver. This combo delivers clean, detailed sound with minimal distortion.

Custom Waveguide Design: Its low distortion waveguide controls dispersion precisely. It provides a 60° horizontal by 40° vertical coverage. This ensures focused, even sound across the stage.

Switchable Passive/Bi-Amp Mode: You can switch between passive and bi-amp operation. This offers flexibility for different system setups and sound requirements. It suits both simple and advanced configurations.

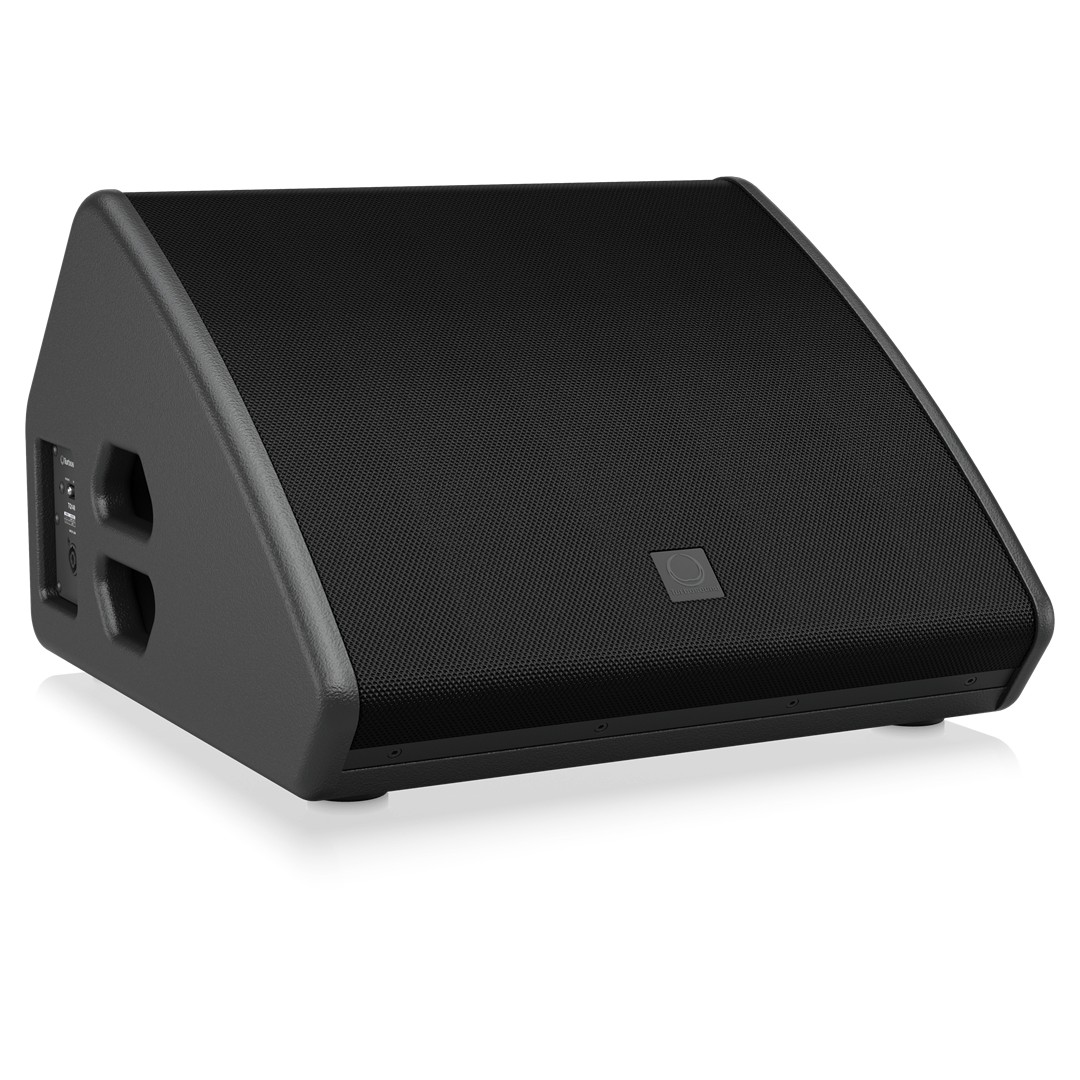

Rugged Birch Plywood Enclosure: The cabinet uses 12 and 15 mm birch plywood for strength. It features a weather-resistant semi-matte black paint finish. This protects the speaker in tough environments.

IP44 Dust and Water Protection: With an IP44 rating, the TQ14M resists dust and water spray. This makes it reliable for outdoor and indoor events alike.

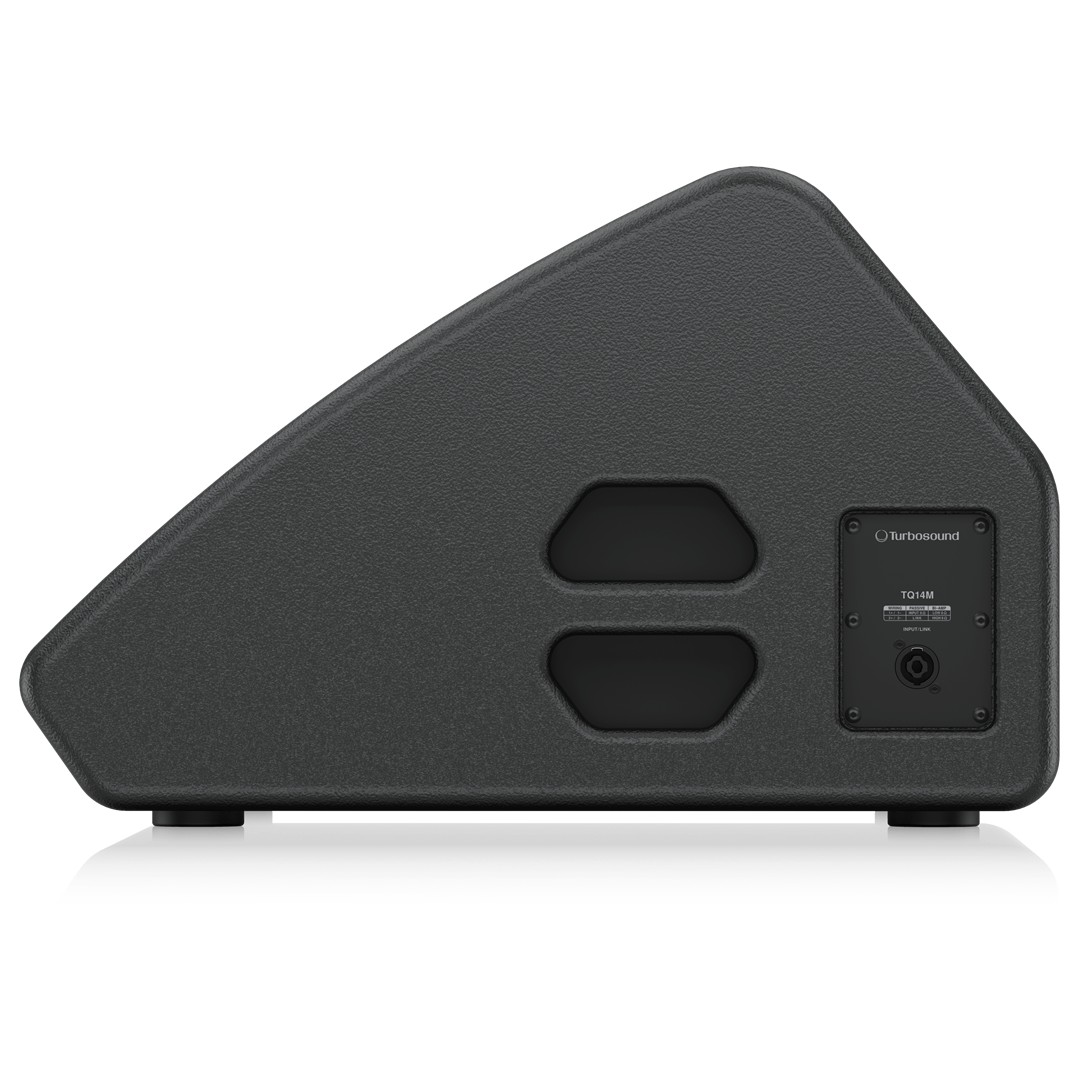

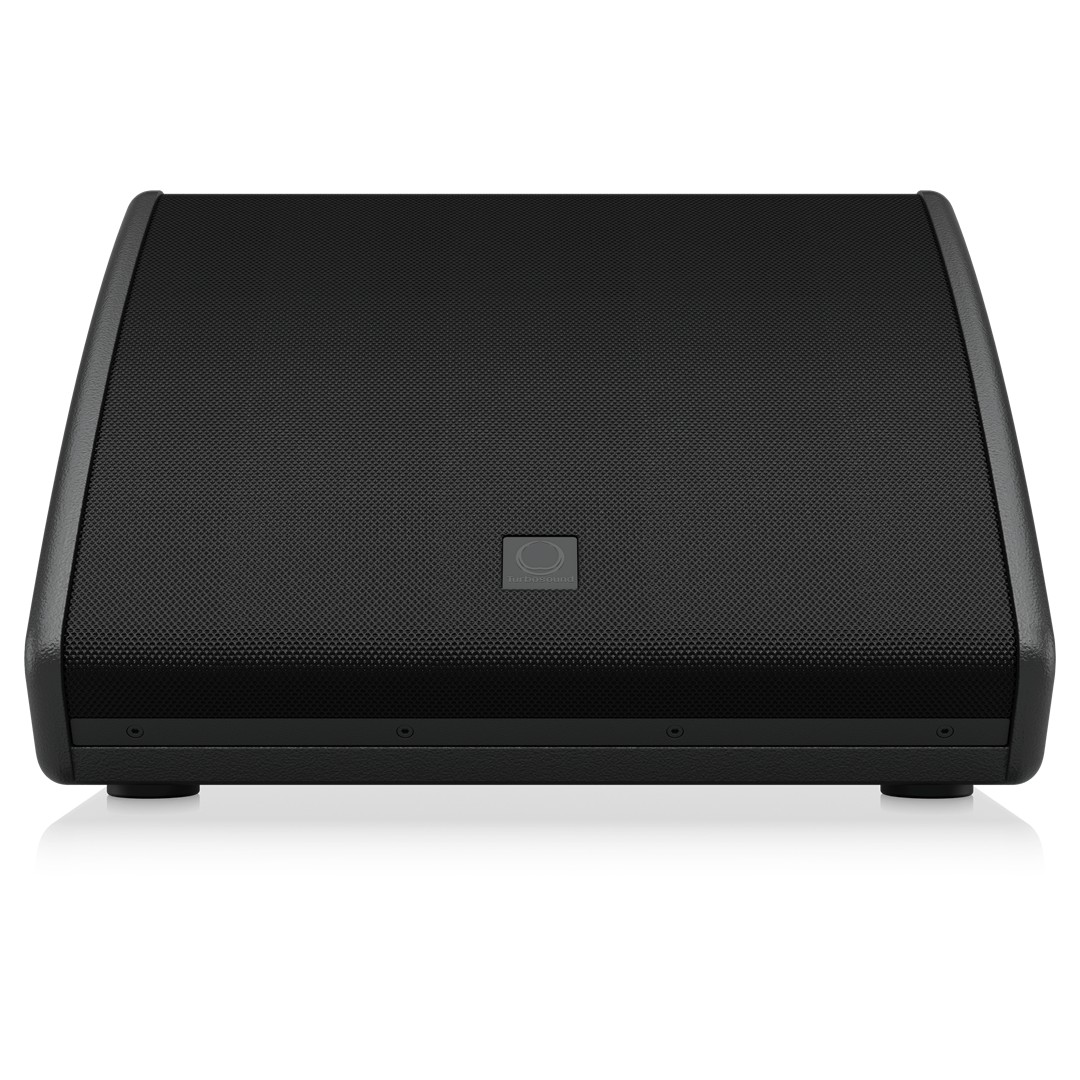

Durable Grille and Handles: A powder-coated, cloth-wrapped perforated steel grille protects drivers. Integrated side handles make carrying and setup easier.

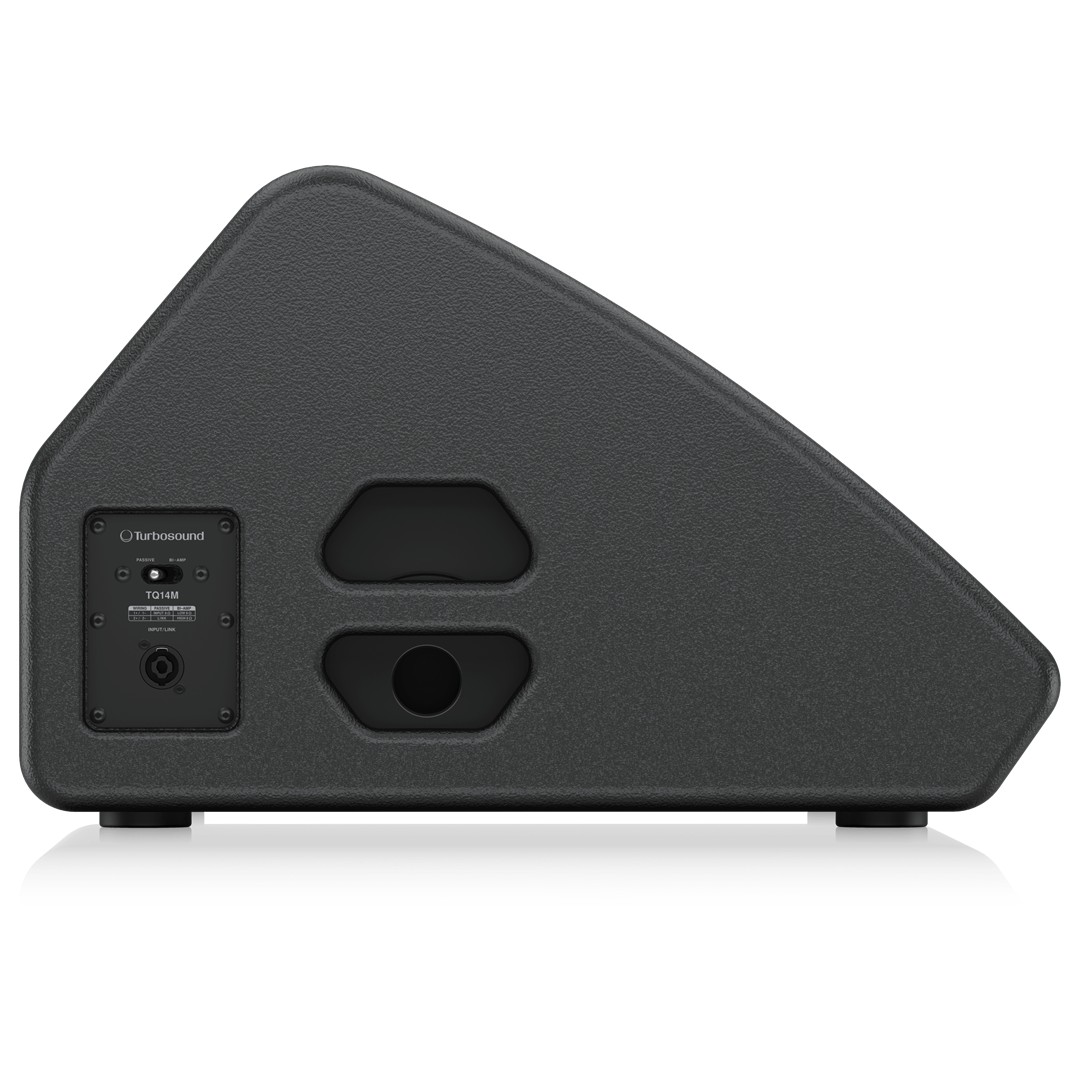

Industry-Standard Connectors: The speaker uses two 4-pole twist-lock connectors. These provide secure and long-lasting connections for input and linking additional units.

Pole Mount Compatibility: The TQ14M includes a 35 mm pole mount socket. This lets you quickly position it on stands to optimize coverage.

Specifications:

• Frequency Response:

  • ±3 dB: 60 Hz – 18 kHz

  • -10 dB: 55 Hz – 20 kHz

• Nominal Dispersion: 40° horizontal x 60° vertical

• Sensitivity:

  • LF: 99 dB (1 W @ 1 m)

  • HF: 106 dB (1 W @ 1 m)

• Maximum SPL:

  • 137 dB (passive mode)

  • 138 dB (bi-amp mode)

Power Handling:

• Continuous Power Handling:

  • LF: 400 W

  • HF: 80 W

  • Total: 480 W

• Peak Power Handling:

  • LF: 1600 W

  • HF: 320 W

  • Total: 1920 W

Impedance:

• LF Driver: 8 Ω

• HF Driver: 8 Ω

• Full Range (Passive Mode): 8 Ω

Components:

• Low-Frequency Driver: 13.5″ (340 mm) coaxial neodymium

• High-Frequency Driver: 1.4″ (36 mm) exit, 3″ (72 mm) voice coil neodymium compression driver

Enclosure and Construction:

• Material: 12 mm and 15 mm (½” and 5/8″) birch plywood

• Finish: PU semi-matte black paint

• Grille: Powder-coated perforated steel, cloth-wrapped

• Ingress Protection: IP44 (dust and water-resistant)

Connectivity:

• Connectors: 2 x industry-standard 4-pole twist-lock

• Wiring Configuration:

  • Passive Mode: Pins 1+ / 1- for input, Pins 2+ / 2- for link

  • Bi-Amp Mode: Pins 1+ / 1- for LF input/link, Pins 2+ / 2- for HF input/link

Dimensions and Weight:

• Dimensions (H x W x D): 359 x 530 x 563 mm (14.13 x 20.86 x 22.16″)

• Net Weight: 20.5 kg (45.2 lbs)

Mounting and Handling:

• Pole Mount: 35 mm (1.38″) socket for standard speaker stands

• Handles: Integrated side handles for easy transport
