Maximum Sound Pressure: The dB Technologies B-HYPE 10 delivers an impressive maximum sound pressure level of up to 121 dB, ensuring powerful and clear audio in a variety of environments. This high SPL capability guarantees that the speaker performs well in both small and medium-sized venues, providing adequate coverage for live sound events and installations.

Efficient Class D Amplifier: Equipped with a custom-made Class D amplifier, the B-HYPE 10 offers excellent energy efficiency, providing a peak power of 260 W. The passive cooling system ensures that the speaker maintains optimal performance while minimizing heat buildup, extending the longevity of the unit.

Versatile Dispersion Patterns: The speaker features an asymmetrical vertical dispersion pattern and diversified horizontal dispersion. This innovative design helps direct sound more efficiently and evenly, ensuring consistent audio coverage. It also enhances performance in reverberant environments, making it ideal for large or reflective spaces where sound can often become muddled.

DSP Preset Function: The B-HYPE 10 includes a DSP preset function, allowing users to enhance both low and high frequencies. This feature provides greater control over sound tailoring, allowing for better sound reproduction based on the needs of the venue or event.

Compact and Portable Design: Weighing just 9 kg (19.84 lbs), the B-HYPE 10 is lightweight and easy to transport. It features three handles—two on the sides and one on top—making it easy to carry and set up. The compact design, coupled with a full metal grille, ensures durability and portability.

Flexible Setup Options: With a double wedge angle, the B-HYPE 10 can be used both as a stage monitor and as a regular speaker. The included pole mount cup allows users to place the speaker on a tripod or stack it on dBTechnologies subwoofers for versatile setup configurations.

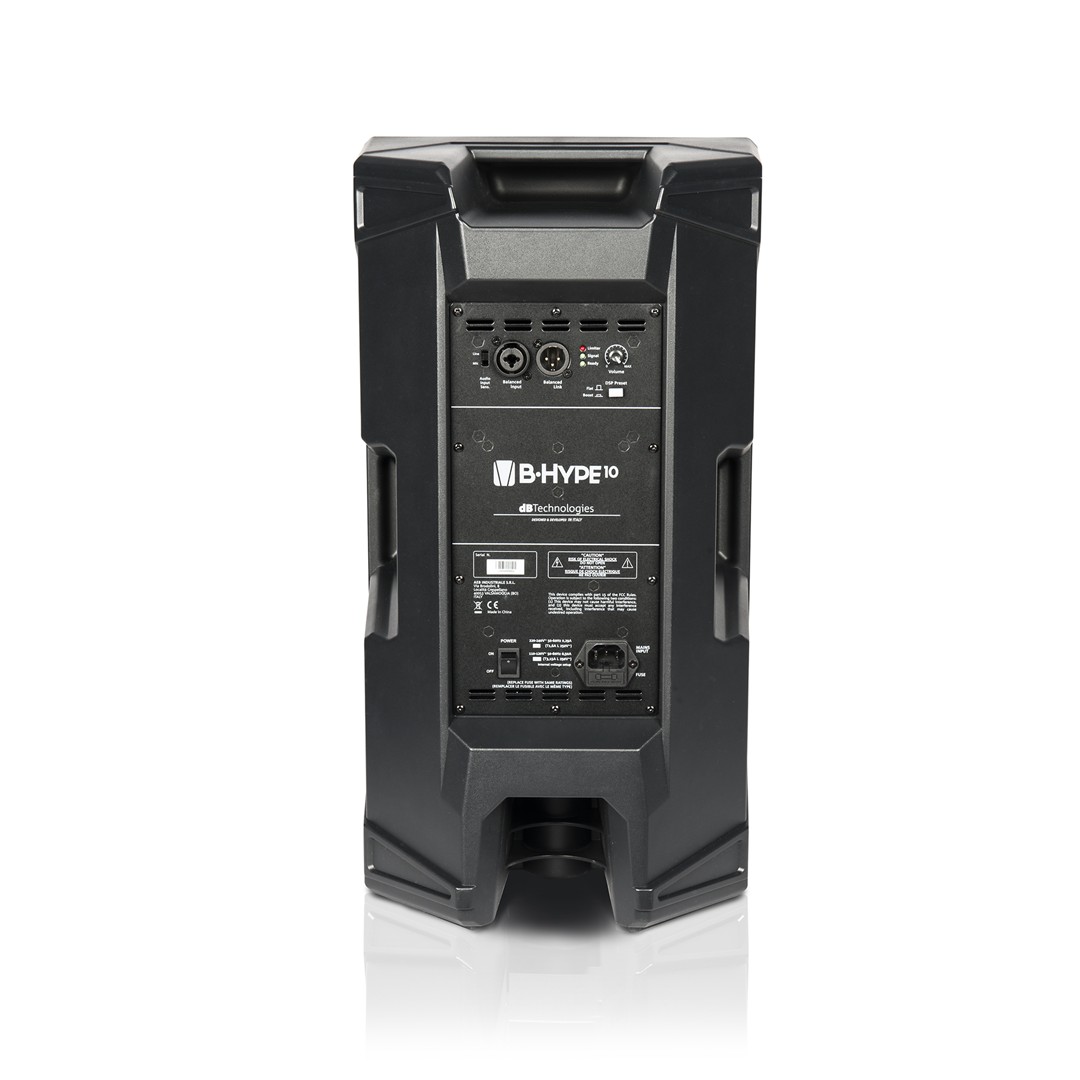

Balanced Output and Connectivity: The speaker features a balanced XLR output, allowing for easy connection to a second loudspeaker for expanded sound coverage. This makes the B-HYPE 10 a flexible solution for larger events or installations that require multiple speakers.

Specifications:

• Speaker Type: 2-Way Active Speaker

• Usable Bandwidth: 55 – 20,000 Hz

• Frequency Response: 62 – 19,600 Hz

• Max SPL: 121 dB

• HF Compression Driver: 1″ voice coil

• LF Woofer: 10″ with 1.5″ voice coil

• Crossover Frequency: 2,300 Hz (24 dB/oct.)

• Horizontal Dispersion: Asymmetrical 85° up / 120° down

• Vertical Dispersion: 85° (+25° / -60°)

• Amplifier Technology: Custom Made Class D, passive cooling (convection)

• Power Peak: 260 W

• DSP Controller: 28/56 bit – 48 kHz

• Limiter: Peak, RMS, Thermal

• Inputs: 1x Combo IN (MIC/LINE)

• Outputs: 1x XLR OUT (Link)

• Housing: Polypropylene

• Grille: Full Metal Grille

• Handles: 3 (2 on side, 1 on top)

• Pole Mount: 36 mm

• Dimensions (W x H x D): 295 mm x 544 mm x 283 mm

• Weight: 9 kg (19.84 lbs)

• Angle Up: Double wedge angle 45°
