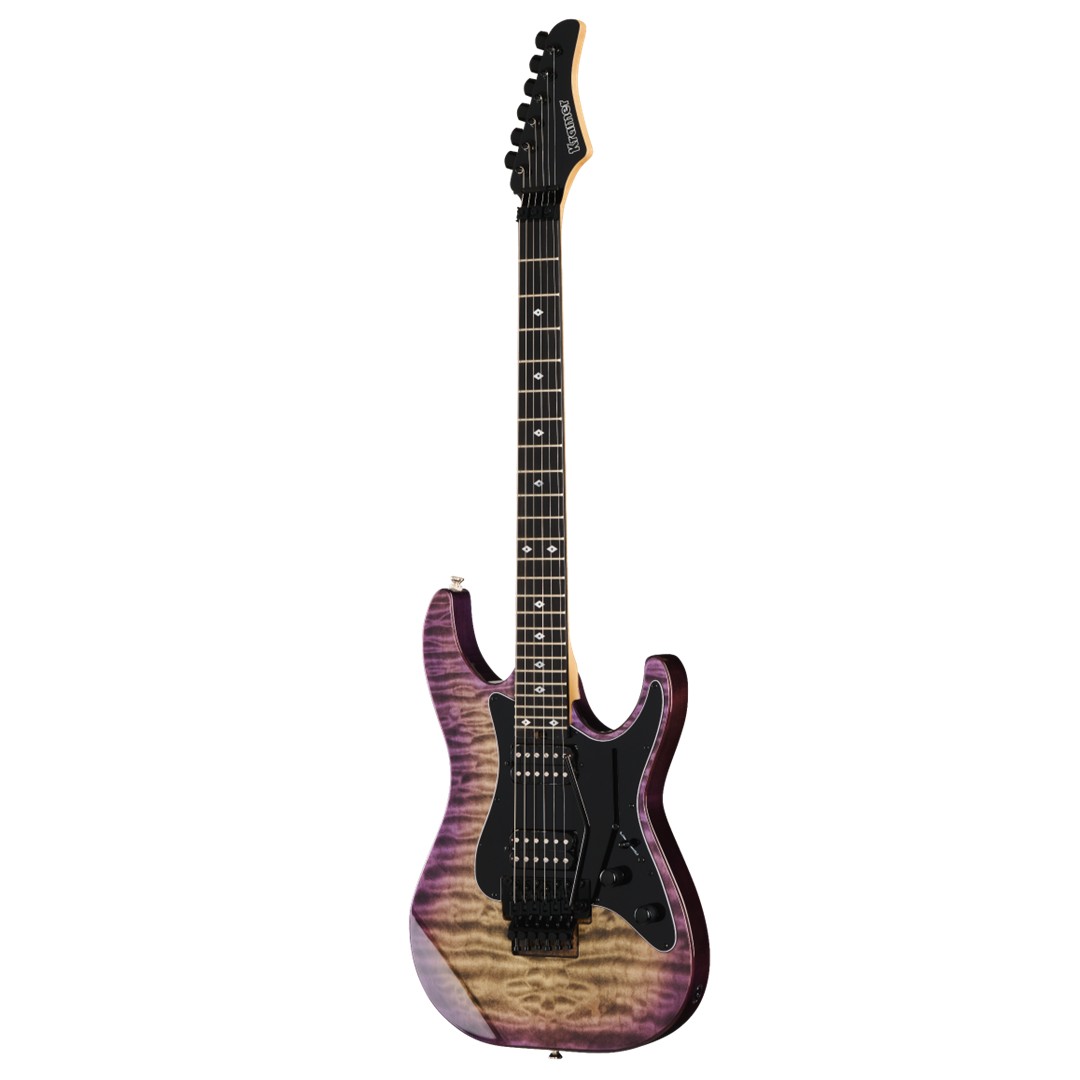

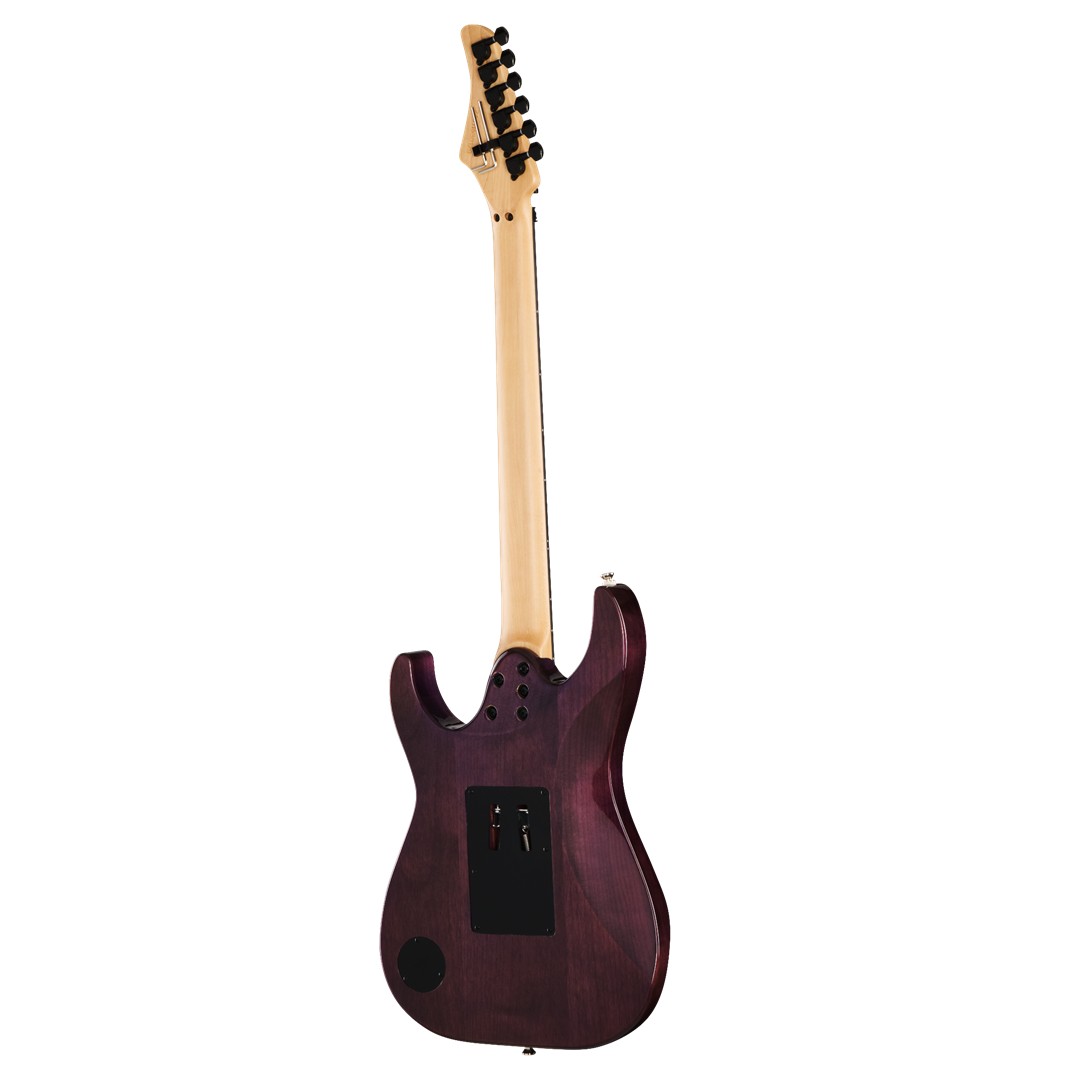

Body Construction: The Kramer Volante Quilt HHFR boasts a contoured alder body that delivers a lightweight feel and exceptional resonance. The top features a premium AAAA quilt maple veneer, finished in a stunning Ultraviolet Burst that enhances its visual impact. Designed with comfort in mind, the guitar includes forearm and body carves, making it comfortable to play during long sessions or live performances. The sleek Volante shape gives the guitar a modern silhouette while preserving Kramer’s unmistakable rock-forward attitude.

Neck and Fretboard: The neck is constructed from thermally aged, 3-piece laminated maple, ensuring durability and enhanced tonal clarity. A Kramer Elliptical C profile supports fast, fluid play across the neck—perfect for modern shredders and technical players. The five-bolt neck joint, reinforced with ferrules, ensures tight neck-to-body contact and excellent sustain. The neck heel is sculpted for easy access to the upper frets, while the spoke-wheel truss rod at the heel allows quick setup adjustments. The ebony fretboard features 24 jumbo frets and a 10”–14” compound radius, offering smooth playability across the entire range. Mother-of-pearl diamond inlays add a touch of elegance and classic Kramer styling.

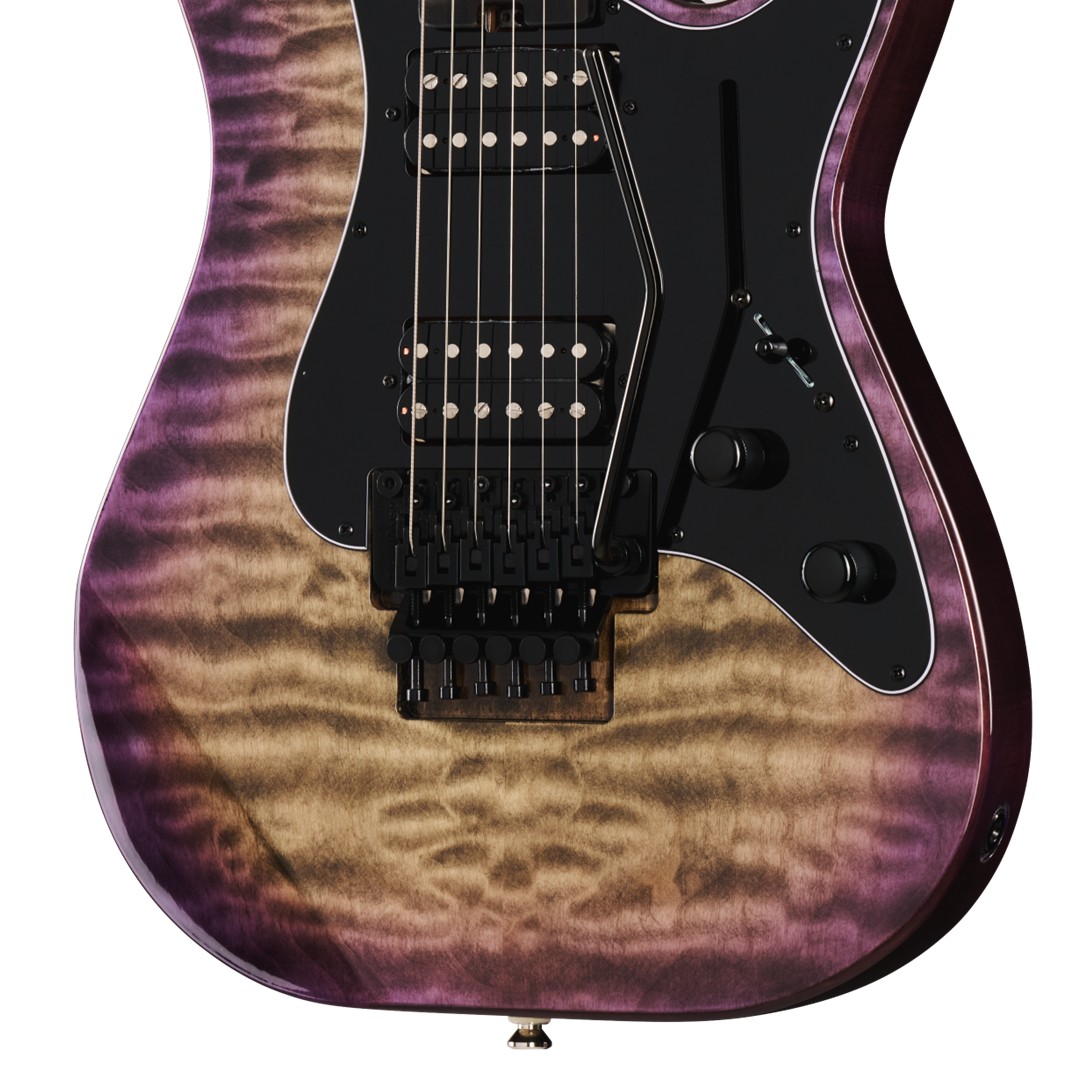

Bridge and Hardware: A recessed Floyd Rose® 1000 Series tremolo bridge provides expressive vibrato action and excellent tuning stability, even under aggressive use. The Floyd Rose R3 locking nut keeps strings locked in place, further enhancing tuning reliability. Mini die-cast tuners offer precise tuning control, and the entire hardware setup is finished in sleek black, complementing the guitar’s bold aesthetic.

Electronics and Controls: The Kramer Volante Quilt HHFR is loaded with USA-designed Neptune humbuckers—an R model in the neck and a T model in the bridge. These pickups deliver a powerful, articulate sound ideal for high-gain genres. A 5-way blade selector switch offers extensive tonal versatility, including series and parallel humbucker modes and coil-split single-coil combinations. Master Volume and Master Tone knobs provide direct, intuitive control over your sound. The switching layout allows you to access everything from fat, aggressive leads to bright, snappy cleans with ease. All pickup positions are fully hum-canceling, reducing noise in any configuration.

Specifications:

• Model Name: Kramer Volante Quilt HHFR

• Finish: Ultraviolet Burst

• SKU: KVOQHHUVBBF1

• Included Case: Premium Gig Bag

Body:

• Shape: Volante

• Body Material: Alder

• Top Material: AAAA Quilt Maple Veneer

• Binding: None

• Finish Type: Gloss

Neck:

• Neck Construction: 3-piece Laminated Maple

• Neck Profile: Kramer Elliptical C

• Neck Finish: Satin

• Neck Attachment: 5-bolt with Ferrules and Sculpted Heel

• Nut Width: 42.86 mm

• Truss Rod: Spoke Wheel Adjustment at Body End

• Neck Treatment: Thermally Aged

• Scale Length: 25.5″ (647.7 mm)

Fingerboard:

• Fingerboard Material: Ebony

• Radius: Compound 10″–14″

• Number of Frets: 24

• Fret Size: Jumbo

• Inlays: Mother of Pearl Diamond

• Side Dots: Yes

Hardware:

• Bridge: Floyd Rose® 1000 Series Tremolo (Recessed)

• Nut: Floyd Rose® R3 Locking Nut (Rear Mounted)

• Tuners: Mini Die-Cast

• Hardware Color: Black

Electronics:

• Neck Pickup: Kramer USA Neptune R Humbucker

• Bridge Pickup: Kramer USA Neptune T Humbucker

• Controls: Master Volume, Master Tone

• Pickup Selector: 5-Way Blade Switch

• Pickup Wiring: Hum-canceling in all positions
