Powerful Output and Versatile Speaker Support: The CPA-2402 delivers 2 x 240 watts of clean power. It supports both low impedance (4/8 Ω) and high impedance (70/100 V) speaker loads. This flexibility allows connection to a wide range of commercial audio systems.

Multiple Inputs with Individual Controls: It offers six mic/line inputs and two line inputs. Each input has its own volume control and output routing, enabling tailored audio management for different sources.

Bluetooth Streaming and USB Media Playback: The amplifier includes Bluetooth streaming for wireless audio from smartphones and tablets. The USB media player supports audio files via USB stick with an intuitive LCD display for easy navigation.

Priority and Chime Muting Function: Configurable priority settings allow announcements to override background music. The chime muting feature enhances notification clarity in public address scenarios.

Energy Efficient Auto Power Management: Auto Ramp technology powers the amplifier on and off automatically based on input signals. This feature saves energy by entering standby when no audio signal is detected.

Remote Volume Control via RJ-45: Engineers can control the volume remotely using standard Ethernet cables and compatible remote controllers, offering convenient system adjustments.

Quiet Fanless Cooling Design: The convection-cooled, fanless chassis ensures silent operation. This makes the CPA-2402 ideal for noise-sensitive environments.

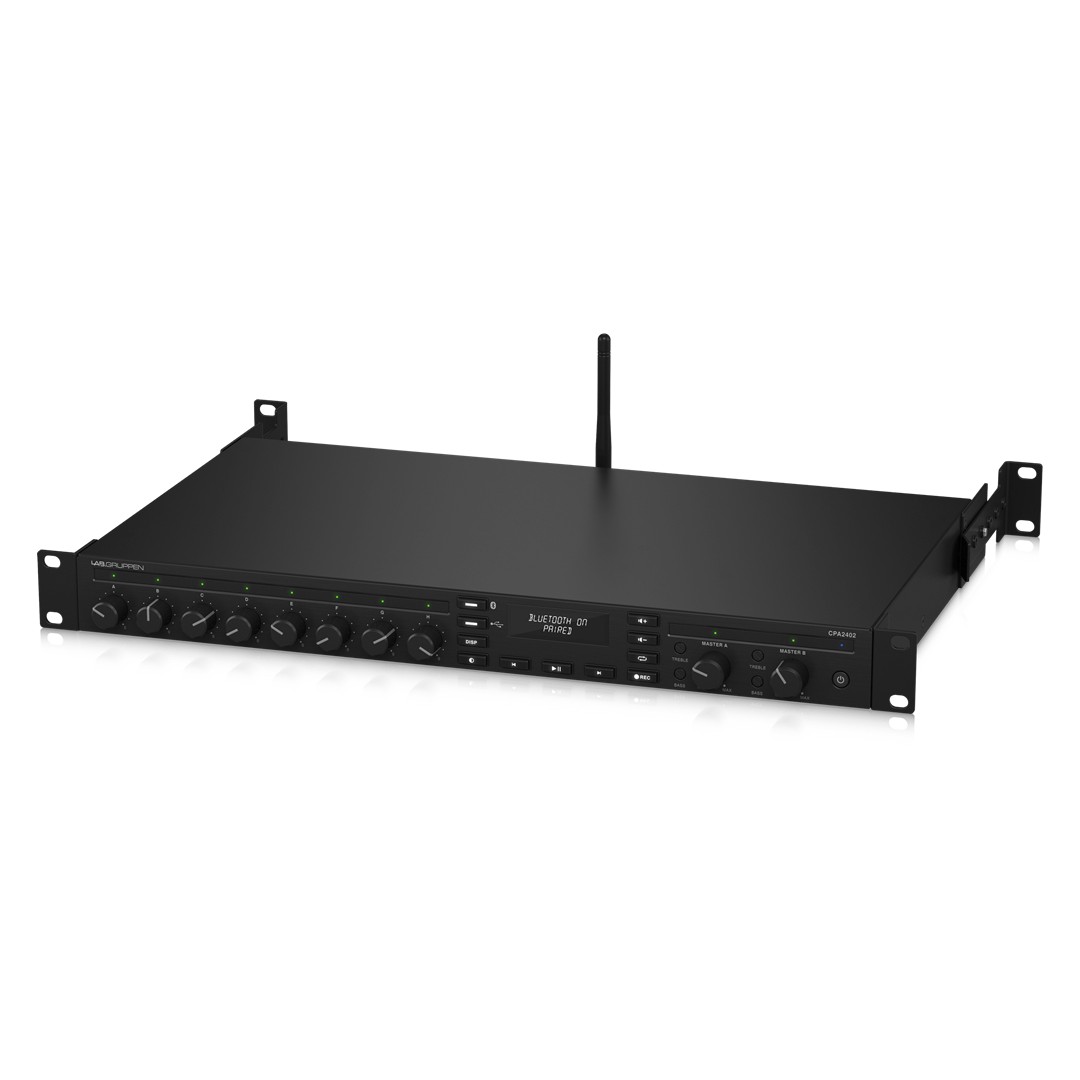

Flexible Installation Options: The unit fits standard 1U, 19-inch racks. It also includes rubber feet for desktop placement and brackets for wall or under-shelf mounting, adapting to various installation needs.

Specifications

• Maximum Output Power: 2 x 240 W (4 or 8 Ω per channel)

• Number of Channels: 2

• Input Types: 6 mic/line inputs, 2 line inputs

• Impedance: Balanced mic/line 20 kΩ, Unbalanced RCA 10 kΩ

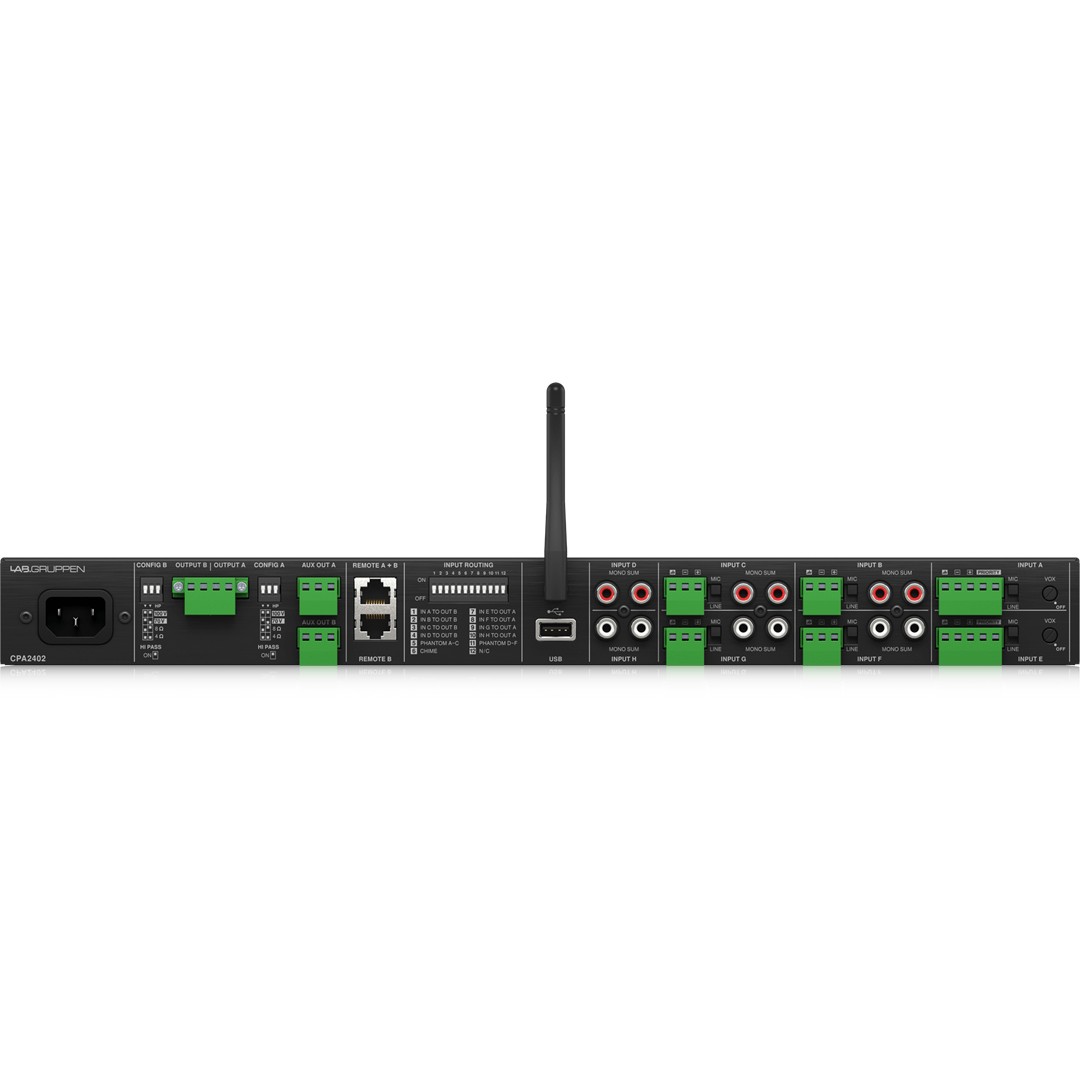

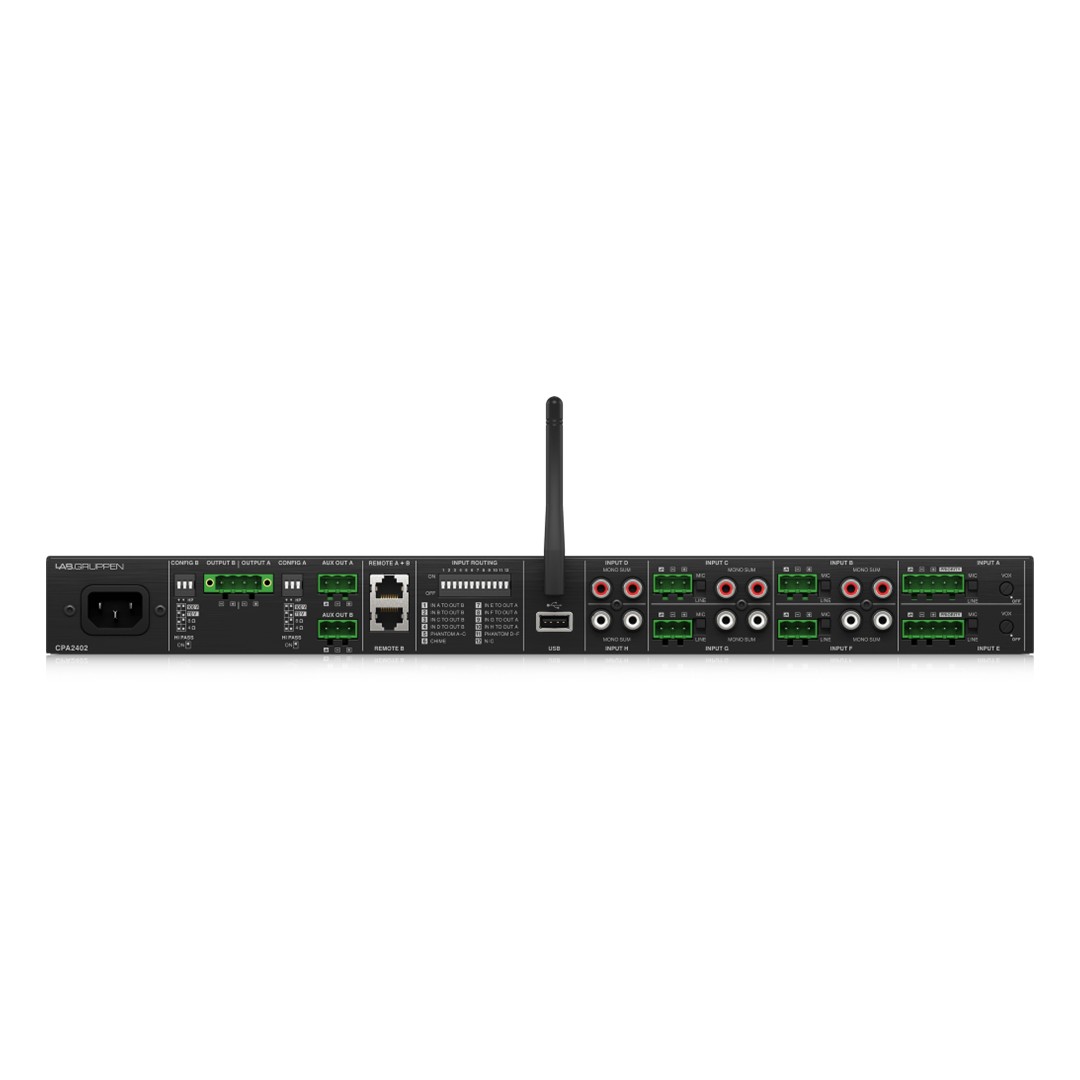

• Output Connectors: 4-pin Euroblock (amplifier), 2 x 3-pin Euroblock (aux)

• Controls: Front panel power, volume, bass, treble, Bluetooth controls

• Bluetooth: Version 4.2, range up to 15 m, codecs SBC

• USB: USB 2.0, supports AAC, WMA, MP3, WAV files

• Frequency Response: 20 Hz to 20 kHz (+0.5/-2 dB)

• Distortion: <0.5% at 1/8 rated power

• Signal-to-Noise Ratio: >95 dB

• Cooling: Convection-cooled, fanless

• Dimensions (HxWxD): 44 x 437 x 248 mm (1.7 x 17.2 x 9.8 in)

• Weight: 3.6 kg (7.9 lbs)

• Power Supply: 100-240 V~, 50/60 Hz with power factor correction

• Finish: Brushed black anodized aluminum chassis with black painted steel bottom
