Amplification and Power: The subwoofer uses a high-efficiency Class D amplifier delivering 1200W RMS and 3600W peak power. This ensures loud, clean bass with low distortion.

Low-Frequency Driver: It features a 15-inch woofer with a 4-inch voice coil, providing tight and accurate low-end response. This design offers fast transient response and high power handling.

Frequency Response: The unit covers a frequency range from 35Hz to 150Hz, capturing deep bass frequencies with clarity. This range suits a variety of live sound and installation needs.

User Controls: Built-in controls include Sub Level, Phase (0° / 180°), X-Over frequency selection (90Hz or 120Hz), and Output Mode. These let users tailor the sound to the venue or system.

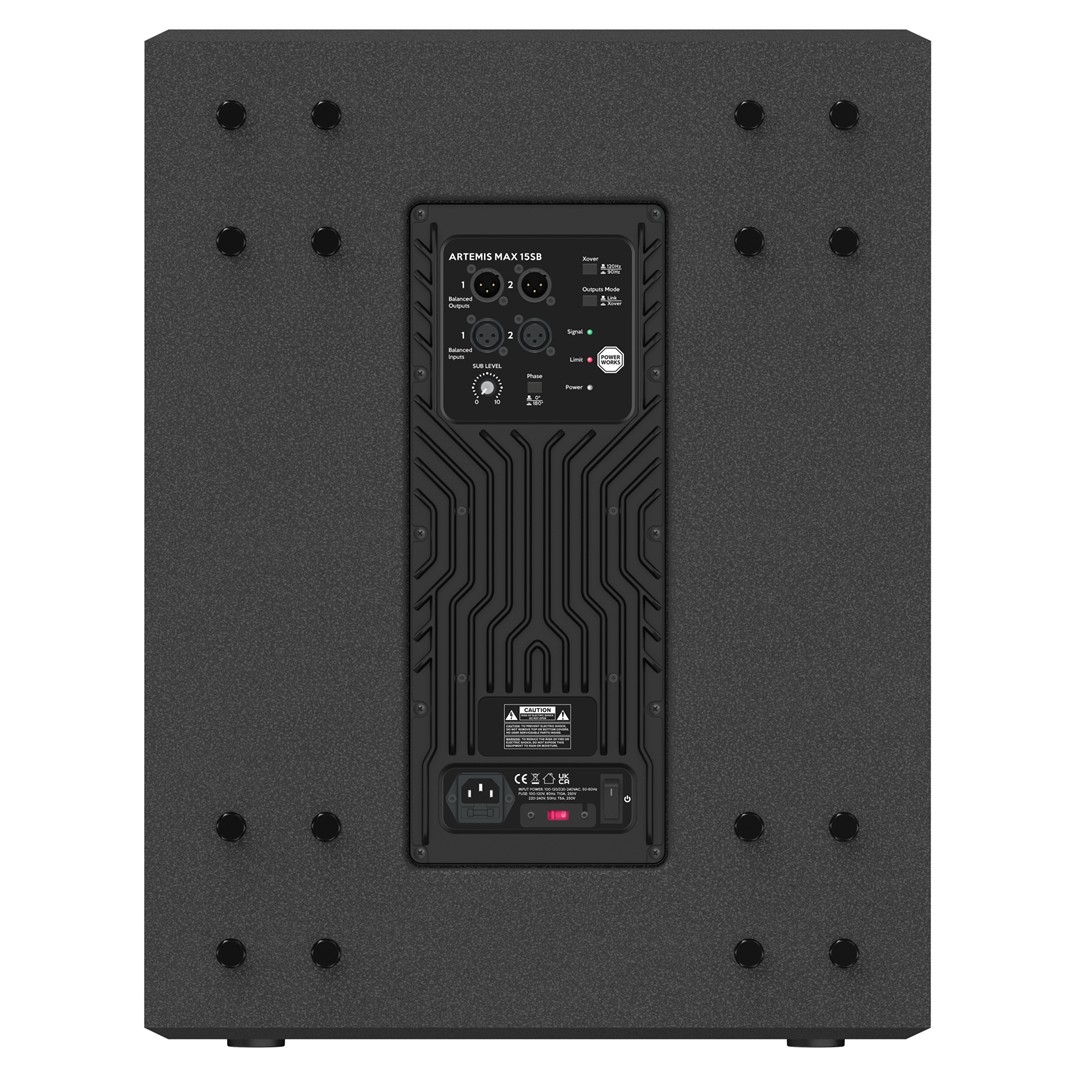

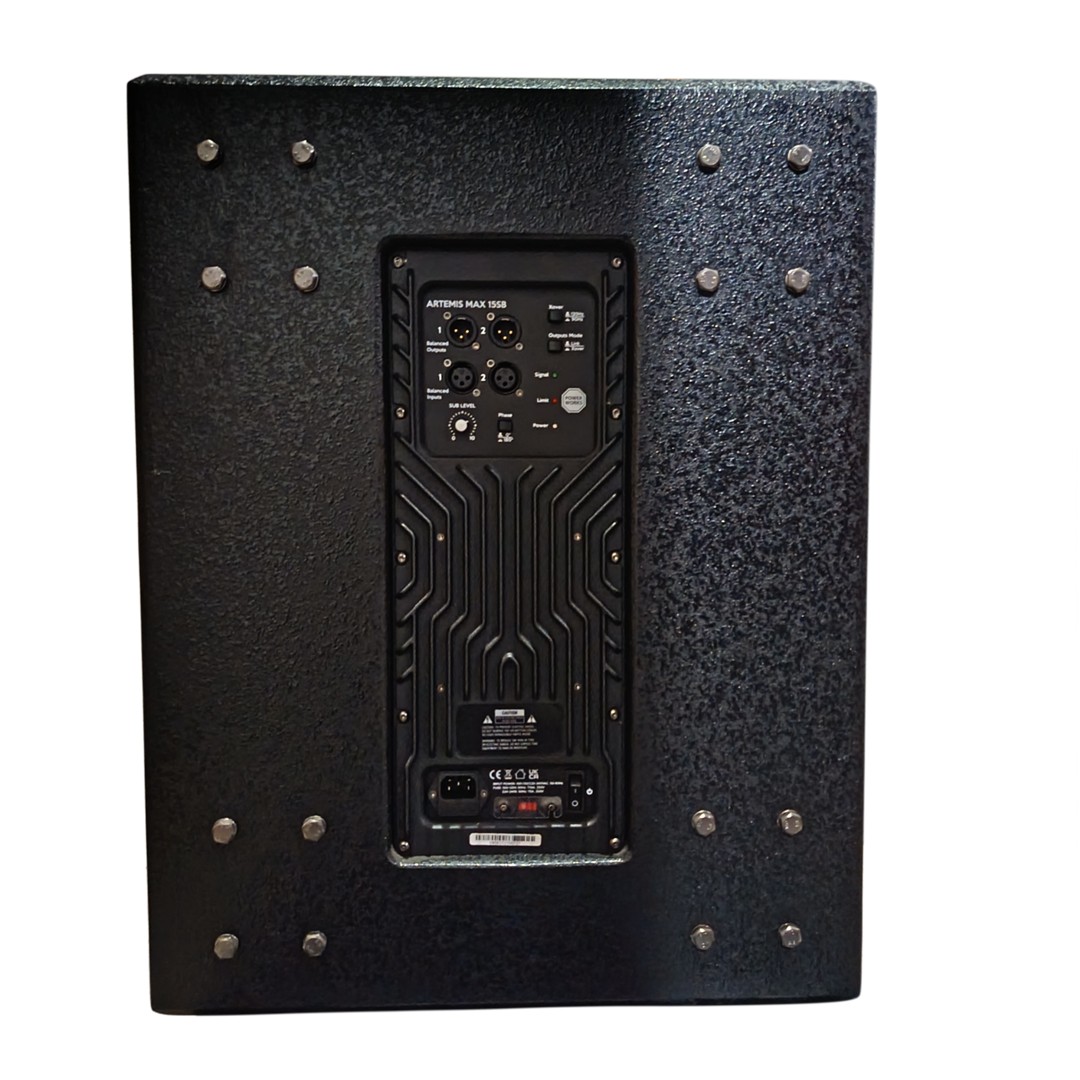

Connectivity: Balanced XLR inputs and outputs enable professional, noise-free signal transfer. A VDE power input guarantees safe and stable power delivery.

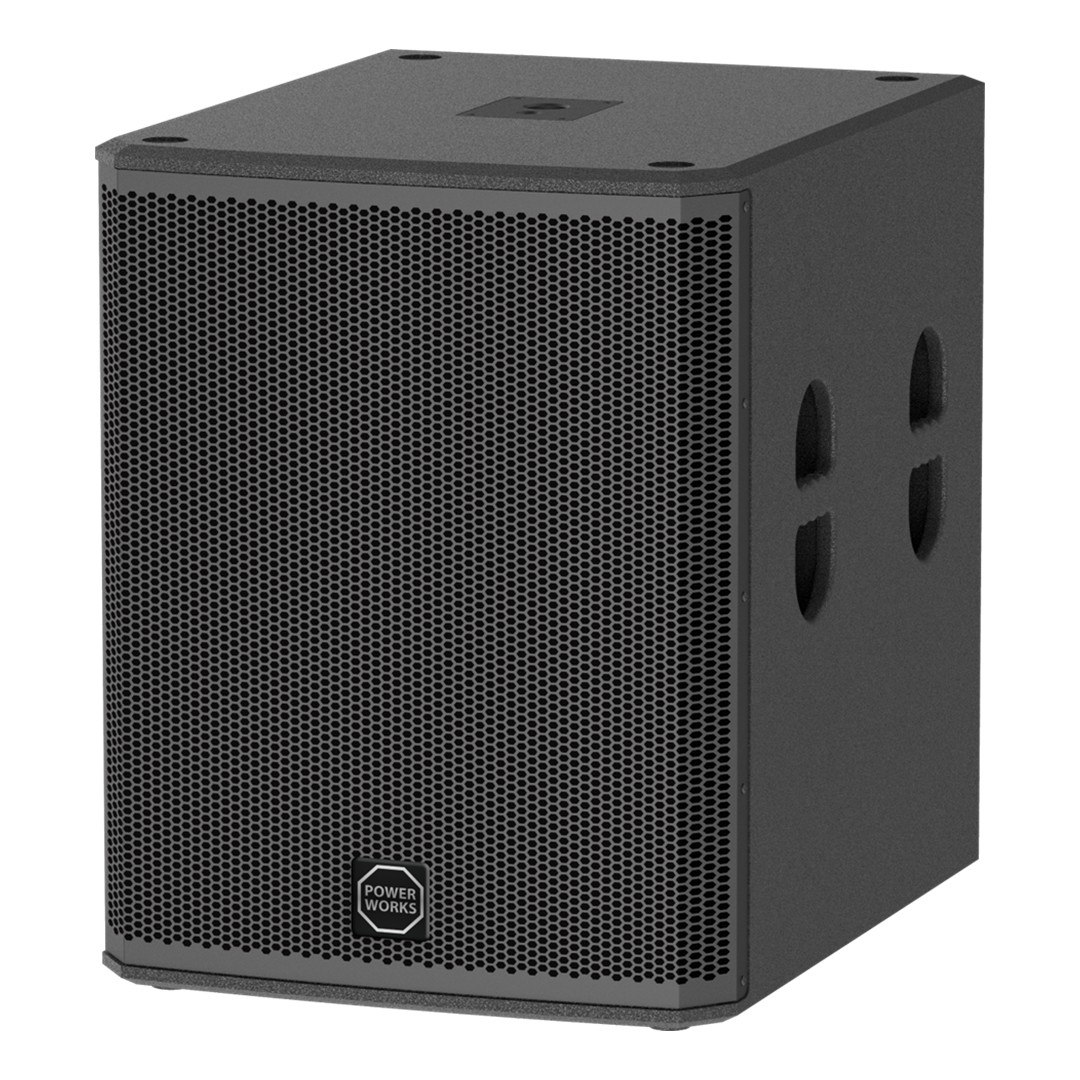

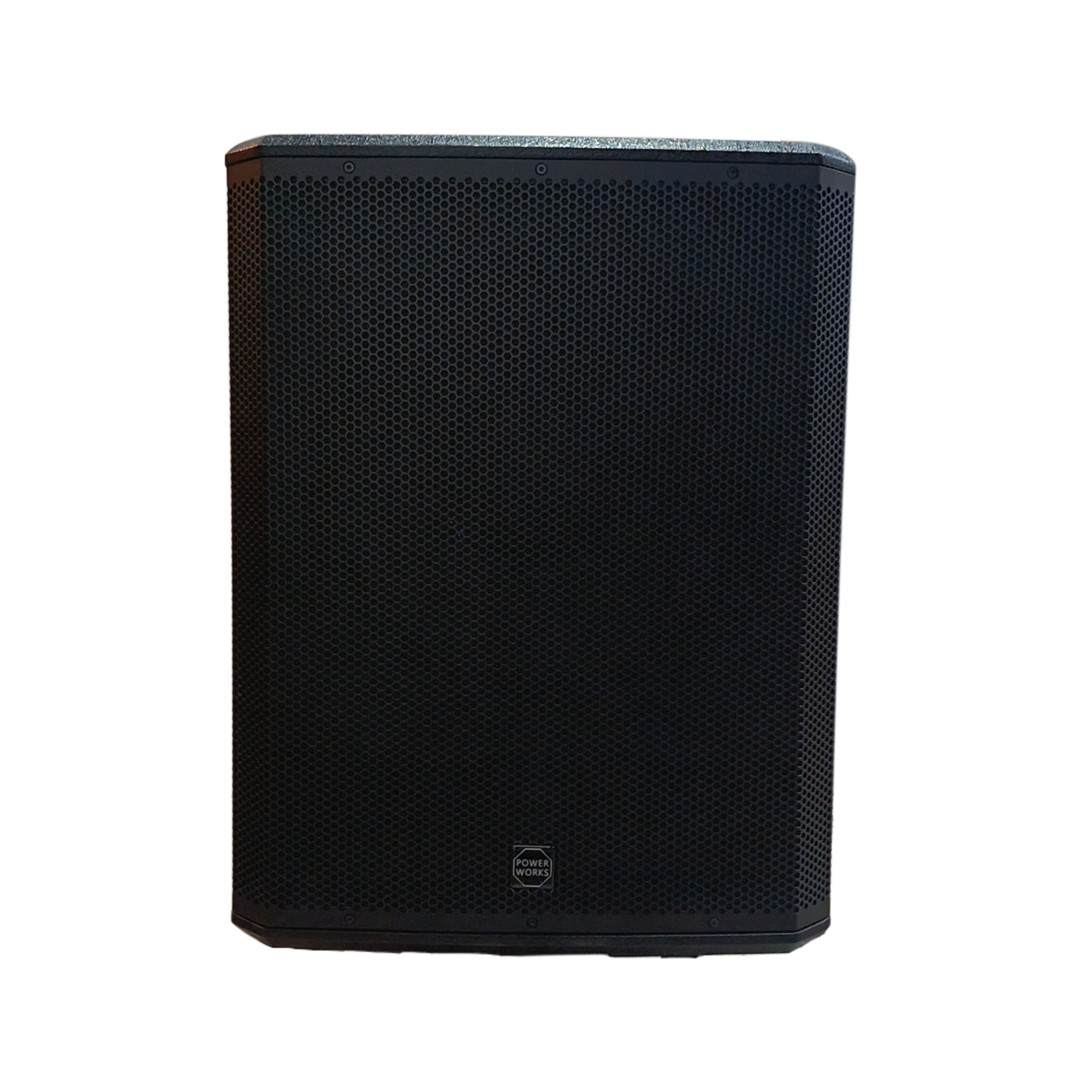

Durable Cabinet: The enclosure is made from 18mm plywood coated with tough polyurea for protection against wear and tear. The 1.5mm steel grille protects the driver while allowing clear sound transmission.

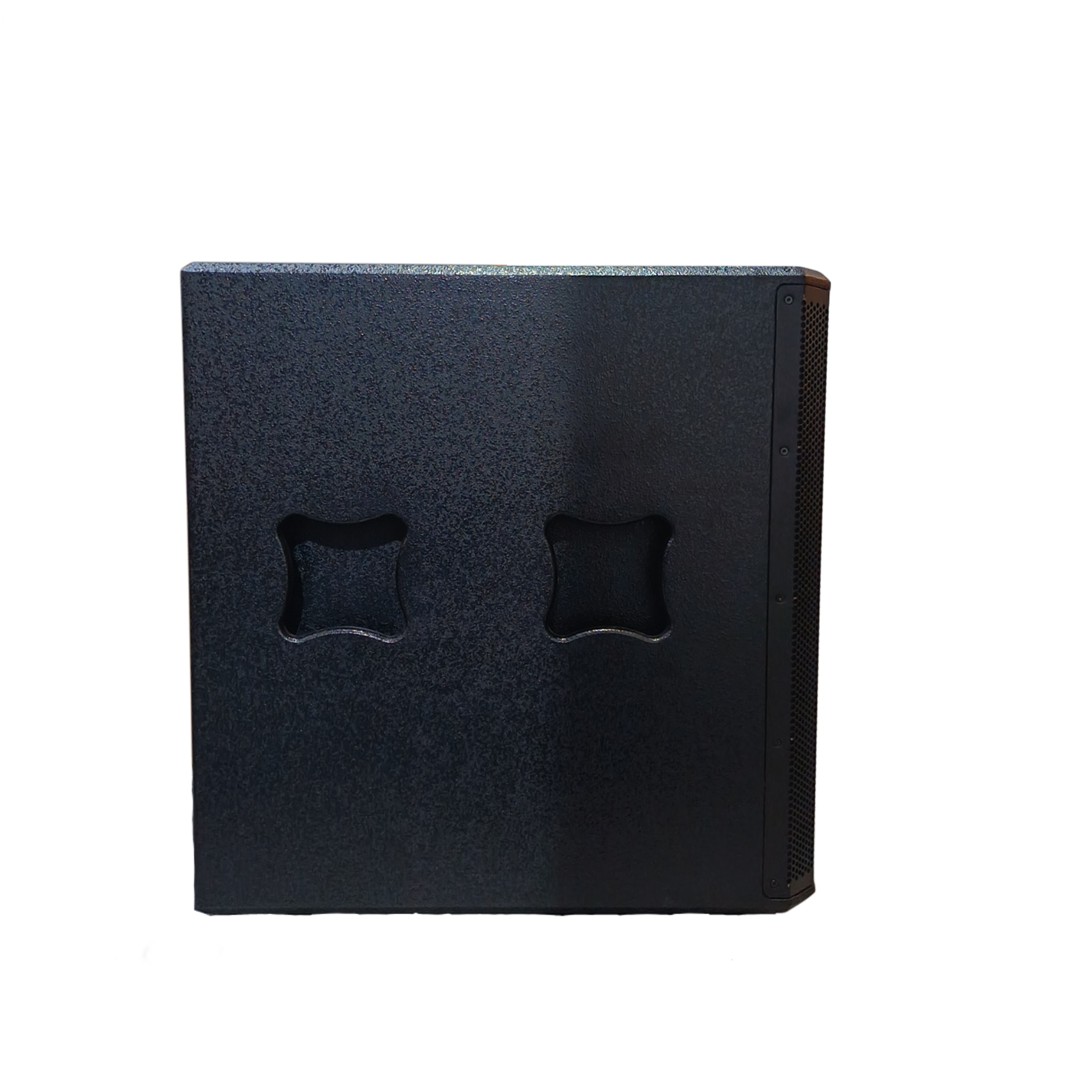

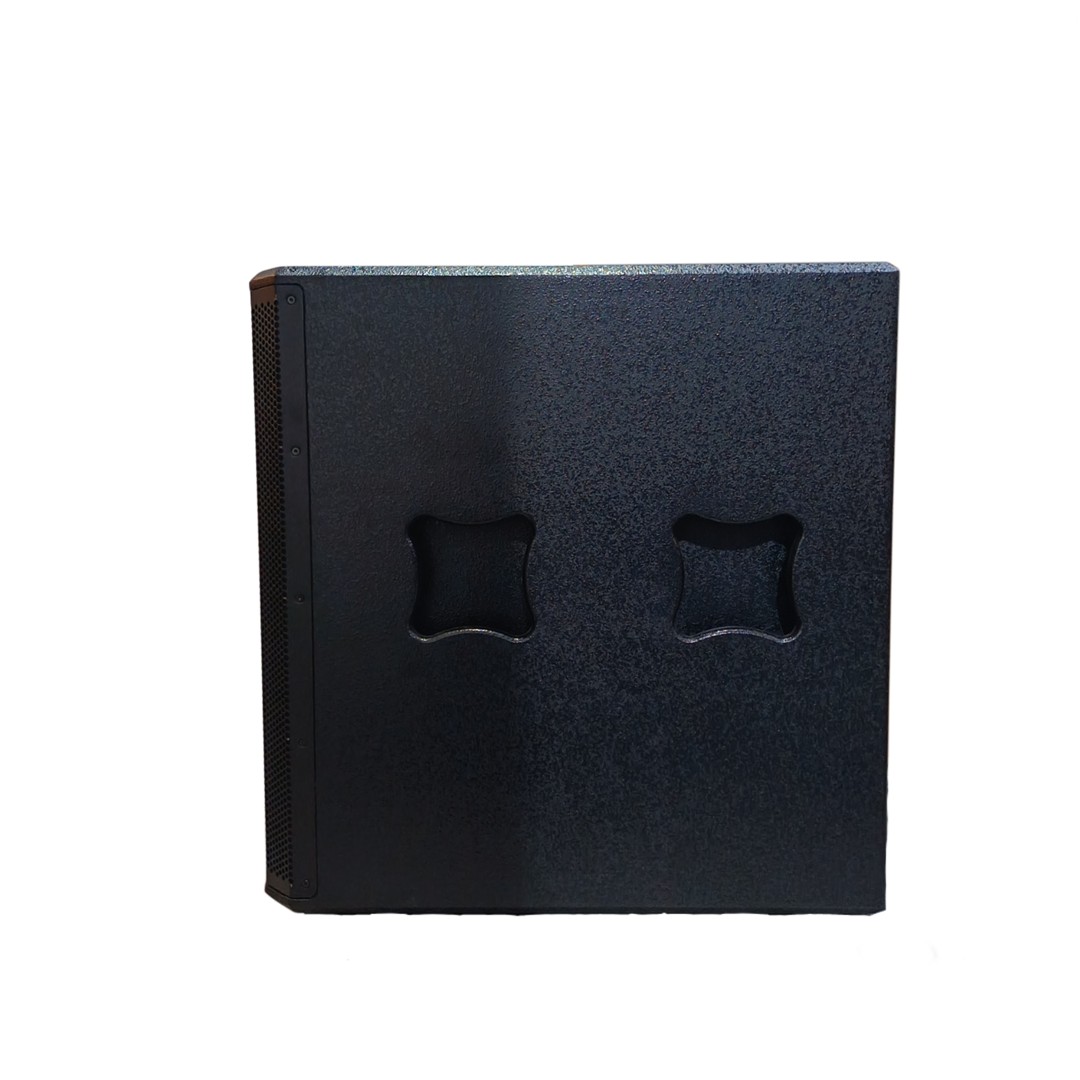

Portability and Mounting: Four recessed handles make transport easier, and optional rear-mounted castors aid mobility. The top-mounted M20 pole adapter supports easy stacking with full-range speakers.

Size and Weight: With compact dimensions and a net weight of 42.5 kg, the subwoofer balances portability and power for various applications.

Specifications:

• Type: Active PA Subwoofer

• Frequency Response: 35Hz – 150Hz

• Power Output (RMS / Peak): 1200W / 3600W

• Amplification: Class D

• Maximum SPL (Peak): 127dB

• LF Transducer: 15″ Woofer with 4″ Voice Coil

• LF Transducer Impedance: 8 ohm

• Controls:

  • Sub Level

  • Phase (0° / 180°)

  • X-Over Frequency (90Hz / 120Hz)

  • Output Mode (Link / X-Over Outs)

• Connectors:

  • Balanced Inputs (XLR)

  • Balanced Outputs (XLR)

  • Power Input (VDE)

• Cabinet Construction: 18mm Plywood

• Cabinet Surface: Polyurea Coating

• Grille Material: Steel

• Grille Thickness: 1.5mm

• Handles: 4 Recessed (2 per side)

• Pole Mount: M20 Adapter on Top

• Castors: Optional (Rear Panel Mounting)

• Subwoofer Dimensions (W x H x D): 498 x 647 x 640 mm

• Gross Weight: 47 kg
